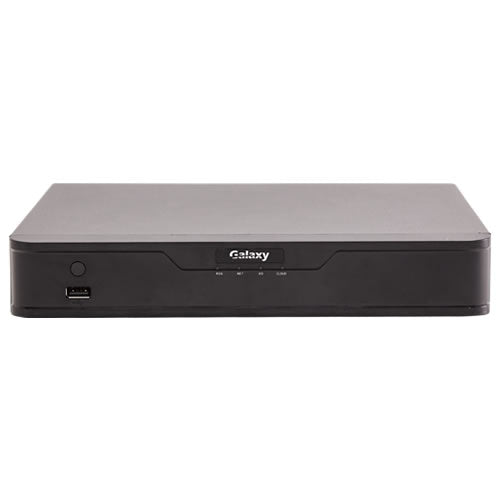

Galaxy Pro Series 2+4CH 5MP Hybrid NVR
Galaxy Pro Series 2+4CH 5MP Hybrid NVR
Model: NVR301-04Q
Regular price
$191.40
Sale price
$191.40
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4CH (TVI/CVI/AHD/CVBS) up to 5MP, 6CH IP up to 5MP, 40Mbps, 1x HDMI, 1x VGA, H.264, :5MP@10fps, Audio 4in/1out, 1x RJ45 10/100M, 1x SATA up to 8TB/ea, 2xUSB2.0, 1x RS-485
Couldn't load pickup availability
- SupportH.264 video formats
- Support AHD, TVI, CVBS, IP cameras with adaptive access
- Support for conversion of analog channels to digital channels
- 4-channel BNC input
- Up to 5MP resolution for recording
- Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P
- Long transmission distance over coax cable
| Video/Audio Input | |
| Analog Video Input | 4-ch, BNC |
| IP Video Input | 2-ch (only IP up to 6ch) |
| Supported AnalogCamera Types | Support AHD input:5MP, 4MP, 3MP, 1080P/30 Hz,1080P/25Hz,720P/30 Hz,720P/25 Hz, Support TVI input:5MP,3MP,1080P/30 Hz, 1080P/25Hz,720P/30 Hz, 720P/25 Hz, Support CVBS input |
| Audio Input | 4-ch, RCA |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| CVBS Output | / |
| HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 5MP/ 4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Frame Rate | Mainstream:5MP@10fps/4MP@12fps/3MP@16fps /1080P@25fps/720P@30fps/960H@30fps Sub stream: 960H/D1@16fps/CIF/QCIF@25fps/30fps |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 6-ch |
| Decoding | |
| Decoding format | H.264 |
| Live View/ Playback | 5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each HDD |
| External Interface | |
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interfaces |
| Serial Interface | 1 x RS485 |
| USB Interface | Rear panel:1 x USB2.0,Front panel:1xUSB2.0 |
| General | |
| Power Supply | 12V DC Power Consumption: |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity |
| Dimensions(WxDxH) | 260 x 240 x 44mm (10.2" x 9.4"x1.7") |
| Weight ( without HDD ) | |
