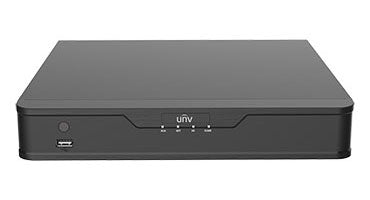

UNV 4CH 5MP 1x SATA Mini 1U NVR
UNV 4CH 5MP 1x SATA Mini 1U NVR
Model: NVR201-04U
Regular price
$194.30
Sale price
$194.30
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4CH (TVI/CVI/AHD/CVBS) up to 4MP6CH IP up to 4MP (2560x1440), 40Mbps, 1x HDMI, 1x VGA, H.264, 1x4MP@15fps, Audio 4in/1out, 1x RJ45 10/100M, 1x SATA up to 6TB/ea, 2xUSB2.0, 1x RS-485
Couldn't load pickup availability
Support H.264 video formats
Support AHD, TVI, CVI,CVBS, IP cameras with adaptive access
4/8-channel BNC input
Up to 5MP resolution for recording
Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P
Long transmission distance over coax cable
| Model | NVR201-04U | NVR201-08Q |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | 8-ch, BNC |
| IP Video Input | 2-ch (only IP up to 6ch) | 2-ch (only IP up to 10ch) |
| Supported Analog Camera Types | Support AHD input: 5MP@20fps 4MP@30fps 3MP@30fps 1080P@30 fps 720P@30fps Support TVI input: 5MP@12.5fps 3MP@18fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input | Support AHD input: 3MP@30fps 1080P@30 fps 720P@30fps Support TVI input: 3MP@18fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| Audio Input | 4-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 40Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| CVBS Output | / | 1-ch, BNC |
| HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Recording Resolution | 5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF | 3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Frame Rate | Mainstream: 5MP@10fps 4MP@12fps 3MP@16fps 1080P@25fp 720P@30fps 960H@30fps Sub stream: 960H/D1@16fps CIF/QCIF@25fps/30fps | Main stream: 3MP@8fps 1080p@12fps 720@30fps 960H@30fps Sub stream: 960H/D1@12fps CIF/QCIF@25fps/30fps |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 6-ch | 10-ch |
| Decoding | ||
| Decoding format | H.264 | |
| Live View/Playback | 8MP (IP)/5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF | 8MP (IP)/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 10TB for each HDD | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interfaces | |
| Serial Interface | 1xRS485 | |
| USB Interface | Rear panel: 1xUSB2.0, Front panel: 1xUSB2.0 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ? 5 W (without HDD) | |
| Working Environment | -10°C~+55°C (+14°F~+131°F), Humidity ? 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 260mm×240mm×47mm (10.2"×9.4"×1.8") | |
| Weight (without HDD) | ? 1.12 Kg (2.47 lb) | |
