NVMS - Network Video Management System
NVMS - Network Video Management System

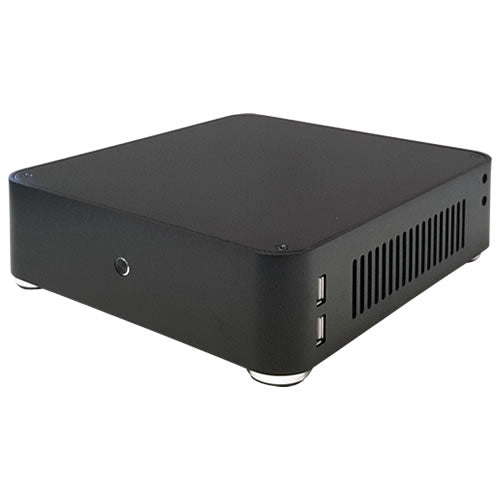

Model: NVMS6100
Available in stock
Inter1037U, 4GB RAM, Linux, up to 16 devices, Central live view, playback, backup, adjust settings, GPU hardware decoding, Max 36ch D1, 18ch 720P, 9ch 1080P live view, HDMI/VGA output, USB
Couldn't load pickup availability
- Max management 16 pcs NVSS or DVR/NVR, each device up to 256 channels
- Max 64 display group preview setup, Support GPU hardware decode function
- Up to 9ch 5M / 4M / 3M / 1080P @ 16ch, 720P @ 32ch D1 realtime preview
- Up to 9ch 5M / 4M / 3M / 1080P @ 16ch, 720P relatime remote playback
- Support remote playback and download
- Support Virtual Matrix/TV WALL management via VMDS device
- Support device alarm linkage and log seach function
- With 64G VMS mSata card, support remote help function with Teamviewer


| System | |
| Main Processor | Intel 1037U |
| RAM | 4GB |
| Operating System | 64-bit Linux |
| Case | Mini case |
| Control Mode | Mouse |
| Supported List | Hikvision, Dahua, Xiongmai, including DVR / NVR /HCVR / HDTVR |
| Display | |
| Video Output | 1ch HDMI,1ch VGA |
| Display Split | 1/4/6/9/13/16/20/25/36 |
| Resolution | Self adapted, supports 1920x1080, 1600x1050, 1280x1024, 1024x768 |
| Tour Display | 64 Display groups with sequence supported |
| Compression | H.264 |
| Decoding | Max 36ch D1, 18ch 720P, 9ch 1080P |
| Remote-Playback Function | Simultaneous play, single frame, Icon Search, Record mode filter, Backup, Grab |
| Max Connections | Up to 16 devices supported |
| Display | |
| USB | 4x USB ports |
| Ethernet | 1x 1000Mbps RJ45 ports |
| Power Supply | 12V, 5A |
| Power Consumption | Max. 60W |
