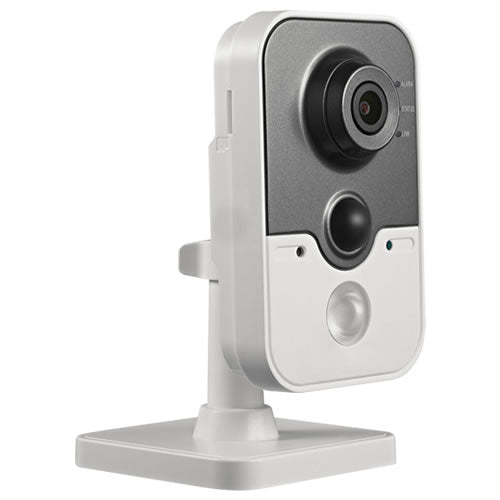

Hikvision OEM Galaxy Platinum 4.0MPWiFi IR Cube IP Camera
Hikvision OEM Galaxy Platinum 4.0MPWiFi IR Cube IP Camera
Model: NVK40W
Regular price
$259.55
Sale price
$259.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4.1MP, 2688x1520@20fps, 1920x1080@30fps, True WDR 120dB, Day&Night (ICR), PIR, IR up to 33ft(10m), Alarm, Audio, Built-in Mic and Speaker, MicroSD Slot, 2.8mm Fixed Lens, DC12V, PoE
Couldn't load pickup availability
- 4.1MP High Definition
- 2688x1520@20fps
- 2.8mm Fixed Lens
- PIR Detection, IR Range up to 33 feet
- H.264, H.264+ Ready
- True WDR 120db
- Built-in Mic and Speaker
- MicroSD Slot up to 128GB
- DC 12V
- PoE
| Camera | |
| Image Sensor | 1/3" sensor |
| Min. Illumination | 0.01 lux @F1.2, AGC on 0 lux with IR |
| Shutter Speed | 1/25s ~ 1/100,000s |
| Lens | 4.0 mm @F2.0 |
| 2048 x 1536: Angle of view: 70deg. 1920 x 1080:Angle of view: 79deg. | |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Backlight compensation | Yes,zone configurable |
| Compression Standard | |
| Video Compression | H.264 / MJPEG |
| H.264 codec profile | Main profile |
| Bit Rate | 32 Kbps ~ 16 Mbps |
| Audio compression | G.711/G.726/MP2L2 |
| Audio bit rate | 64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | |
| Max. Resolution | 2048 x 1536 |
| Frame Rate | 60Hz: 20fps (2048 x 1536),30fps (1920 x 1080),30fps(1280 x 720) 50Hz: 20fps (2048 x 1536),25fps (1920 x 1080),25fps(1280 x 720) |
| Image Settings | Rotate mode, Saturation, brightness, contrast, sharpeness adjustable |
| ROI | Yes, up to 3 configurable areas |
| Network | |
| Network Storage | Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 6 4GB. NAS |
| Alarm Trigger | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect,IP address conflict, Storage exception |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
| System compatibility | ONVIF, PSIA, CGI, ISAPI |
| General functionalities | Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark |
| Interface | |
| Communication Interface | 1 RJ45 10 M / 100 M Ethernet interface |
| On-board Storage | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
| Alarm I/O | 1/1 |
| Wi-Fi parameters | |
| Wi-Fi standard | IEEE802.11b, 802.11g, 802.11n Draft |
| Frequency range | 2.4 GHz ~ 2.4835 GHz |
| Communication bandwidth | Support 20/40 MHz |
| Protocols | 802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM |
| 802.11g/n: OFDM | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Transmission range | Outdoor: 200m, Indoor: 50m(depend on environment) |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n Draft |
| General | |
| Working Temperature /Humidity | -22 °F ~ 140 °F(-30 °C ~ 60 °C ) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V+/-10% / PoE(802.3af) |
| Power Consumption | Max. 5W |
| PIR | Angle: 80deg. |
| Range: 33ft(10m) | |
| IR Range | 33ft(10m) |
| Dimension | 2.60"x3.60" x5.17"(66.0x91.5x131.3mm) |
| Weight | 0.9lbs(400g) |
