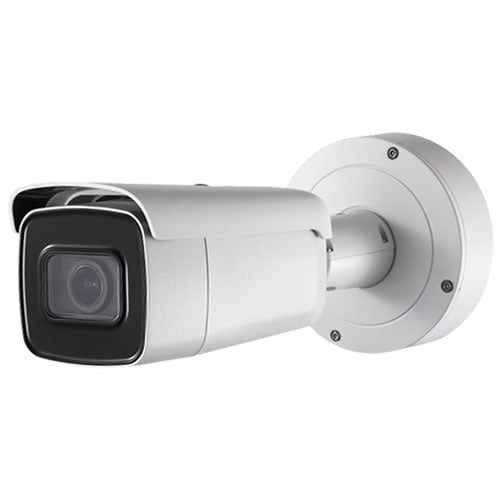

Galaxy Platinum 5.0MP H.265+ WDR IR Motorized VF Bullet IP Camera - 2.8~12mm
Galaxy Platinum 5.0MP H.265+ WDR IR Motorized VF Bullet IP Camera - 2.8~12mm
Model: NV465MVF
Available in stock
Send a copy to email:
Open here
5MP, 2944x1656@20fps, 2560x1440@30fps, H.265/H.265+/H.264+/H.264, 120dB WDR, 3DDNR, BLC, Matrix IR 2.0 up to 165ft(50m), MicroSD slot, IP67, IK10, 2.8~12mm Motorized VF Lens, DC12V, PoE
Couldn't load pickup availability
- 5MP High Definition, Up to 2560x1920@20fps
- 2.8-12mm Varifocal Motorize Lens with Smart Focus
- Matrix IR 2.0, IR Range up to 165 feet
- H.265, H.265+, H.264, H.264+ Ready
- True WDR 120dB
- IP67
- MicroSD Slot up to 128GB
- Audio I/O, Alarm I/O
- DC 12V, PoE
- Junction Box Included
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8-12mm @F1.4, Motorized Lens, Angle of View: 88deg.- 29deg. |
| Lens Mount | Dia.14 |
| Day & Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Compression Standard | |
| Video Compression | Main stream: H.265+/H.265/H.264 Zip+/H.264 |
| H.264 Type | Main Profile / High Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2 |
| Audio Bit Rate | 32 to 128kbps |
| Image | |
| Max. Resolution | 2944x 1656 |
| Frame Rate | 50Hz: 20 fps (2944x 1656), 25 fps (2560 x 1440, 1920 x 1080, 1280 x720) |
| Sub Stream | 50Hz: 25fps (640 x 360, 352 x 288) |
| Third Stream | 50Hz: 25fps (1280 x720, 640 x 360, 352 x 288) |
| Image Setting | Rotate Mode, Saturation, brightness, contrast, sharpness adjustable by client software or by web |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General | One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset | Yes |
| General | |
| Working Temperature /Humidity | -22 °F ~ 140°F (-30 °C ~ 60 °C) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V +/- 25%, PoE (802.3af) Terminal block for DC input |
| IR Range | Up to 165ft (50m) |
| Weather Proof Ratings | IP67 |
| Dimensions | Dia. 5 .67" x 13.10"(Dia. 144.13x 332.73 mm) |
| Weight | 4.17 lbs (1893g ) |
