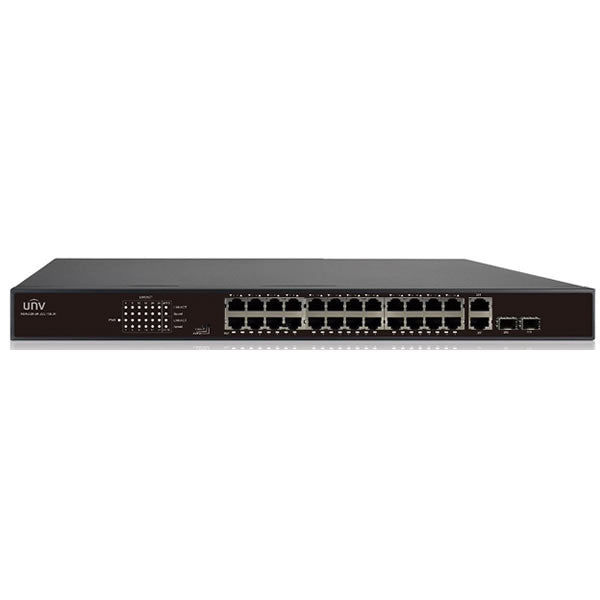

24 Ports PoE + 2x 1000Mbps Combo Ports Switch
24 Ports PoE + 2x 1000Mbps Combo Ports Switch
Model: NSW2010-24T2GC-POE-IN
Regular price
$553.90
Sale price
$553.90
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports, IEEE802.3/u/z/ab/x/af/at/az, Switching 8.8Gbps, Forwarding 6.55Mpps, Max PoE power: 370W, AC100~240V, 50/60Hz, Rackmount bracket included
Couldn't load pickup availability
- Multiple working modes to address your business needs:Normal, Secure and Surveillance
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
| Model | NSW2010-24T2GC-POE-IN |
| Ports | 24×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az |
| Switching capacity | 8.8Gbps |
| Forwarding performance | 6.55Mpps |
| Packet Buffer | 4M bit |
| MAC | 16K |
| Dimensions (W×D×H) | 440mm x 280mm x 4416mm(17.3"×11"×1.7") |
| Weight | <4.2kg |
| Power supply | AC: 100-240V, 50/60Hz |
| PoE | 802.3at/af |
| Max. PoE Power | Max capacity: 370W Max capacity for single port: 30W |
| Cooling Fans | 2 |
| Mean Time Between Failure (MTBF) | >50000 hours |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%?90% (noncondensing) |
| Storage temperature | 5%?90% (noncondensing) |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input |
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal |
|
| PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal |
|
| Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps |
|
| Working Mode | Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. EXTEND(Surveillance mode): Transmission distance up to 250 meters. |
