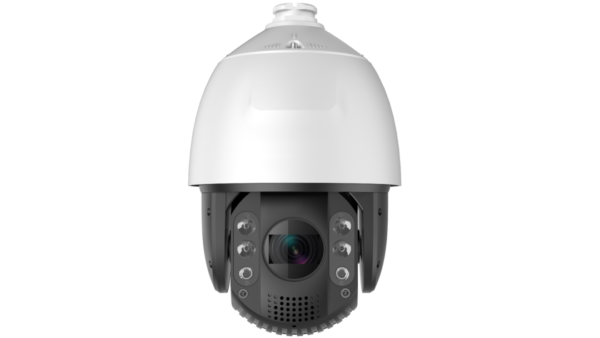

Galaxy 2MP 32X AI IR Manual VF Indoor/Outdoor IP PTZ Camera
Galaxy 2MP 32X AI IR Manual VF Indoor/Outdoor IP PTZ Camera
Model: NP322-IR/32X
Regular price
$2,282.23
Sale price
$2,282.23
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2MP, 1920x1080, @25fps, H.265+, 120dB WDR, Motion Detection, Face Detection, Intrusion Prevention, Tripwire, IR, up to 150m (492ft), Audio, Alarm, MicroSD slot, IP66, 4.8-120mm Lens, 32X, Manual VF, AC24V, Including wall mount bracket and 60W PoE Injector
Couldn't load pickup availability
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@60fps resolution
- Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0LuxwithIR
- 25× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- Up to 150 m IR distance
- 24 VAC & Hi?PoE
- Support H.265+/H.265 video compression
NP322-IR/32X |
|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001Lux @(F1.6, AGC ON) 0 Lux with IR |
| Day/Night | IR Cut Filter |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain Control | Auto/Manual |
| Privacy Masking | 24 programmable privacy masks |
| Focal Length | 4.8 mm to 120 mm, 32× optical zoom |
| Focus Control | Auto/Semi-automatic/Manual |
| Angle of View | Horizontal field of view: 57.6° to 2.5° (Wide-Tele) Vertical field of view: 34.4° to 1.4° (Wide-Tele) Diagonal field of view: 64.5° to 2.9° (Wide-Tele) |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| Audio Interface | 1-ch audio input and 1-ch audio output |
| Max. User Access | Up to 32 users 3 levels: Administrator, Operator and User |
| Power Supply | 24 VAC and Hi-PoE Max.: 40 W (Max. 14 W for IR) |
| Ingress Protection | IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | 220 mm × 353.4 mm ( 8.66" × 13.91") |
| Weight | Approx. 4.5 kg (9.92 lb) |
| Material | ADC 12, PC, PC+10%GF |
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) |
| Operating Humidity | </= 90% |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, Hi-PoE |
| Max. Resolution | 1920 × 1080 |
| Wide Dynamic Range | 120 dB WDR |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Alarm Trigger | Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc. |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Audio Bit Rate | G.711alaw/G.711ulaw: 64 Kbps G.722.1/G.726: 16 Kbps MP212/PCM: 32 Kbps/64 Kbps/128 Kbps |
| ROI | Main stream, sub-stream, and third stream respectively support four fixed areas. |
| Alarm Interface | 2-ch alarm input and 1-ch alarm output |
| Zoom speed | Approx. 3.6 s (optical lens, wide-tele) |
| Min. working distance | 10 mm to 1500 mm (wide-tele) |
| Aperture range | F1.6 to F3.5 |
| Preset Speed | Configurable, from 0.1°/s to 160°/s, Preset speed: 240°/s Configurable, from 0.1°/s to 120°/s Preset Speed: 200°/s |
| Preset | 300 |
| IR Distance | 150 m |
| Proportional zoom | Support |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Park action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| Power-off memory | Support |
| PTZ position display | Support |
| Preset freezing | Support |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Digital Zoom | 16× |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Smart IR | Support |
| Smart detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection |
| Auto Tracking | Support |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Pan/Tilt Range (PTZ) | 360° endless/From -15° to 90° (auto-flip) |
| H.264+ | Support |
| H.265 Type | Baseline Profile/Main Profile/High Profile |
| H.265+ | Support |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| Client | CMS, Guarding Vision |
| SVC | Support |
| Basic Event Detection | Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| API | Open-ended, support ONVIF, ISAPI, support SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 20 channels |
| 3D Positioning | Support |
