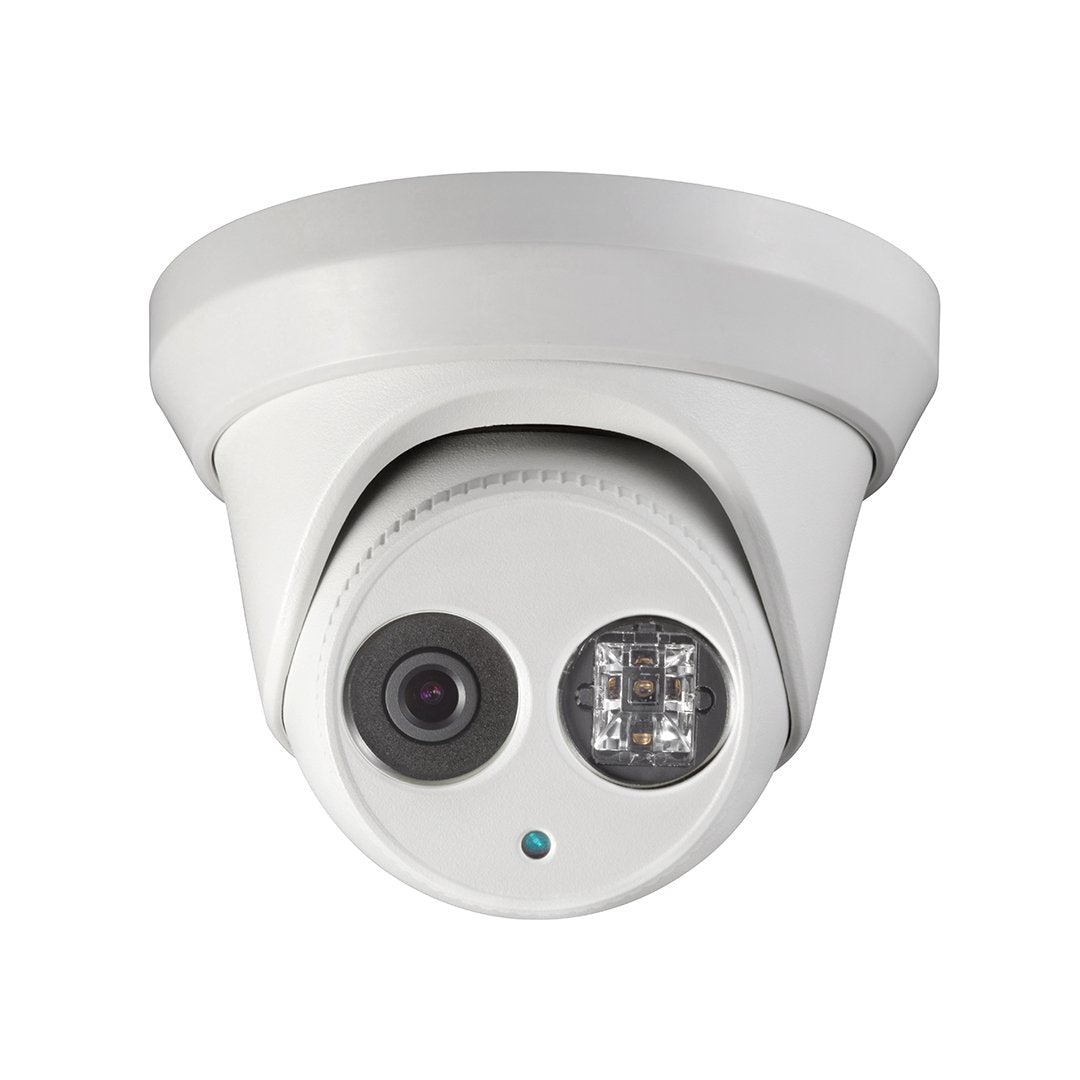

Galaxy Platinum AI 8MP IR Fixed IP Turret Camera
Galaxy Platinum AI 8MP IR Fixed IP Turret Camera
Model: NC328G2-XD-6
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8MP, 3840x2160@30fps, H.265+, 120dB WDR, Day & Night, 0.005 Lux@F1.6, Face Detection, Intrusion, Tripwire, Human/Vehicle, IR, up to 30m (98ft), MicroSD slot, 6mm Fixed Lens, DC12V, PoE, IP67, Optional: DS-1273ZJ-130-TRL, DS-1280ZJ-M, DS-1281ZJ-M, DS-1275ZJ, DS-1276ZJ
Couldn't load pickup availability
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB WDR technology
- Focusing on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
Camera |
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100,000 s |
Slow Shutter |
Yes |
P/N |
P/N |
Wide Dynamic Range |
120 dB |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lens |
|
Lens Type |
Fixed focal length, 2.8 and 4 mm optional |
Focal Length & FOV |
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
|
Lens Mount |
M12 |
Iris Type |
Fixed |
Aperture |
F1.6 |
DORI |
|
DORI |
2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
|
Illuminator |
|
Supplement Light Type |
IR |
Smart Supplement Light |
Yes |
IR Wavelength |
850 nm |
IR Range |
Up to 30 m |
Video |
|
Max. Resolution |
3840 × 2160 |
Main Stream |
50 Hz: 20 fps (3840 × 2160)
|
Sub Stream |
50 Hz: 25 fps (640 × 480, 640 × 360)
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+
|
Video Bit Rate |
32 Kbps to 16 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
H.264+ |
Main stream supports |
H.265+ |
Main stream supports |
Bit Rate Control |
CBR/VBR |
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
Network |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
Simultaneous Live View |
Up to 6 channels |
API |
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Client |
Guarding Vision, Hik-Central |
Web Browser |
Plug-in required live view: IE 10, IE 11
|
Image |
|
Image Parameters Switch |
Yes |
Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Day/Night Switch |
Day, Night, Auto, Schedule |
Image Enhancement |
BLC, HLC, 3D DNR |
SNR |
>/= 52 dB |
