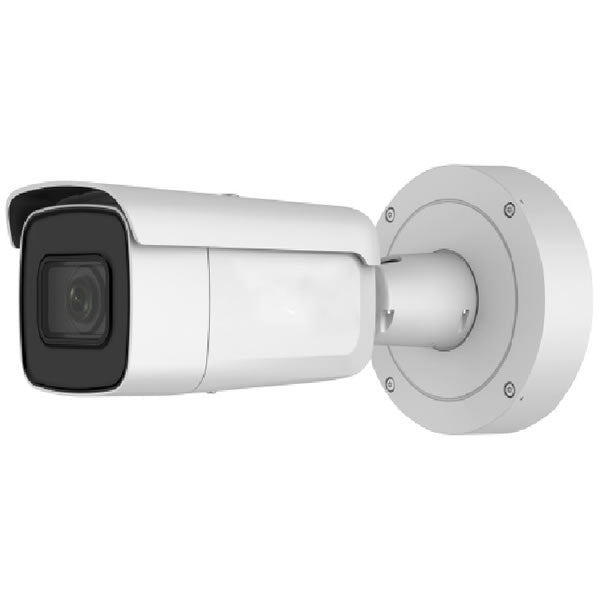

Galaxy Platinum 8MP AI IR Fixed IP Bullet Camera
Galaxy Platinum 8MP AI IR Fixed IP Bullet Camera
Model: NC328G2-VBZ
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8MP, 3840x2160@20fps, H.265+, 120dB WDR, 0.005 Lux@F1.6, Day & Night, Intrusion, Tripwire, Human/Vehicle, IR up to 60m (197ft), Audio, Alarm, MicroSD slot, 2.8-12 Fixed Lens, DC24V, IP67, IK10, Optional: DS-1260ZJ, DS-1280ZJ-S
Couldn't load pickup availability
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant (IK10)
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Varifocal lens, motorized lens, 2.8 to 12 mm |
|
Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
|
Lens Mount |
Ø14 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
DORI |
|
|
DORI |
2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m |
|
Illuminator |
|
|
Supplement Light Type |
IR |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
IR Range |
Up to 60 m |
|
Video |
|
|
Max. Resolution |
3840 × 2160 |
|
Main Stream |
50 Hz: 20 fps (3840 × 2160) |
|
Sub Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Environment Noise Filtering |
Yes |
|
Network |
|
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
|
Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|
Client |
Guarding Vision, Hik-Central |
|
Web Browser |
Plug-in required live view: IE 10, IE 11 |
|
Image |
|
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
SNR |
>/= 52 dB |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
On-board Storage |
Built-in memory card slot, support micro SD card, up to 256 GB |
|
Audio |
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K Ohm, interface type: non-equilibrium; |
|
Alarm |
1 input, 1 output (max. 24VDC/24 VAC, 1 A) |
|
Hardware Reset |
Yes |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
|
Face Detection |
Yes |
|
Deep Learning Function |
|
|
Perimeter Protection |
Line crossing detection, intrusion detection Supports human and vehicle targets classification |
|
General |
|
|
Linkage Method |
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
|
Camera Material |
Aluminum alloy body |
|
Camera Dimension |
308.5 mm × 97.9 mm × 93 mm (12.2" × 3.9" × 3.7") |
|
Package Dimension |
385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") |
|
Camera Weight |
Approx. 1385 g (3.1 lb.) |
|
With Package Weight |
Approx. 2046 g (4.5 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
General Function |
Anti-flicker, heartbeat, password reset via email, pixel counter |
|
Web Client Language |
33 languages |
|
Firmware Version |
V5.5.113 |
|
Software Reset |
Yes |
|
Power Consumption and Current |
12 VDC, 1.08 A, max. 13 W |
|
Power Supply |
12 VDC ± 25% |
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
Approval |
|
|
EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
