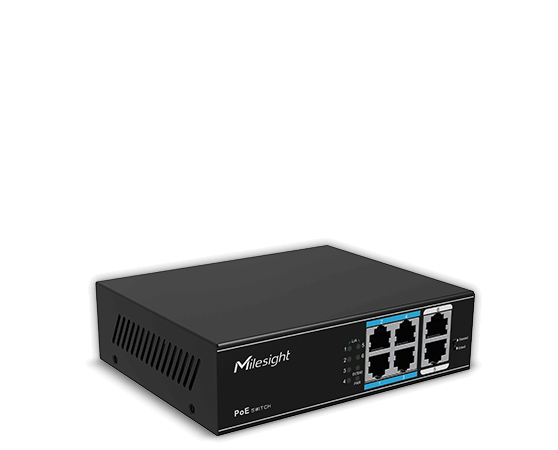

MileSight MS-S0416-GF
MileSight MS-S0416-GF
Model: MS-S0416-GF
Regular price
$675.00
Sale price
$675.00
Regular price
Available in stock
Open here
* PoE Standard: IEEE802.3 af/at
* Port Lightning Protection: 4KV 8/20us
* Protection Level: IP30
Couldn't load pickup availability
- PoE Standard: IEEE802.3 af/at
- Port Lightning Protection: 4KV 8/20us
- Protection Level: IP30
- PoE Ports: 16X10/100; Mbps
- Uplink Ports: 2X1000; Mbps
- SFP Ports: 2X1000; Mbps
- Max PoE Capacity: 250W
- Max PoE Power per Port: 30W
- Switching Capacity: 14.8; Gbps
| MS-S0216-GL | MS-S0416-GF |
|---|---|
| Ports | |
| 16X10/100Mbps PoE ports (RJ45) + 2X 1000Mbps uplink ports | 16X10/100Mbps PoE ports (RJ45) + 2X1000Mbps uplink ports + 2X1000Mbps SFP ports |
| Standard | |
| IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3x | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-T IEEE802.3x |
| Switching Capacity | |
| 14.8Gbps (non-blocking) | 14.8Gbps (non-blocking) |
| Packet Forwarding Rate@64byte | |
| 5.36Mpps | 5.36Mpps |
| Packet Forwarding Cache | |
| 4M | 4M |
| MAC | |
| 16K | 16K |
| Power Supply | |
| Built-in switching power supply AC 100~240V, 50-60Hz, 2.5A | Built-in switching power supply AC 100~240V, 50-60Hz, 3A |
| PoE Standard | |
| IEEE802.3af/at | IEEE802.3af/at |
| Max. PoE Power | |
| Max. capacity: 200W Max. capacity for single port: 30W | Max. capacity: 250W Max. capacity for single port: 30W |
| Indicator | |
| Power Indicator: PWR(green) Network Indicator: Link(yellow) PoE Working Indicator: PoE(green) Functional Switch Indicator: EXTEND(green) | Power Indicator: PWR(green) Network Indicator: Link(yellow) PoE Working Indicator: PoE(green) |
| Cooling Fan | |
| 1 | 1 |
| Operating Temperature | |
| -20°C~55°C | -20°C~55°C |
| Storage Temperature | |
| -40°C~75°C | -40°C~75°C |
| Operating / Storage Humidity | |
| 10% ~ 90%RH(non-condensing) | 5% ~ 90%RH(non-condensing) |
| Lightning Protection/ Protection Level | |
| Port lightning protection: 4KV 8/20us Protection level: IP30 | Port lightning protection: 4KV 8/20us Protection level: IP30 |
| Dimensions | |
| 270.4mm(W)X181mm(D)X44mm(H) | 440mm(W)X225mm(D)X44mm(H) |
| Weight | |
| 1.5kg | 4.4kg |
| Installation Method | |
| Desktop Mounted Type, Wall Mounted Type | Desktop Mounted Type, Wall Mounted Type |
