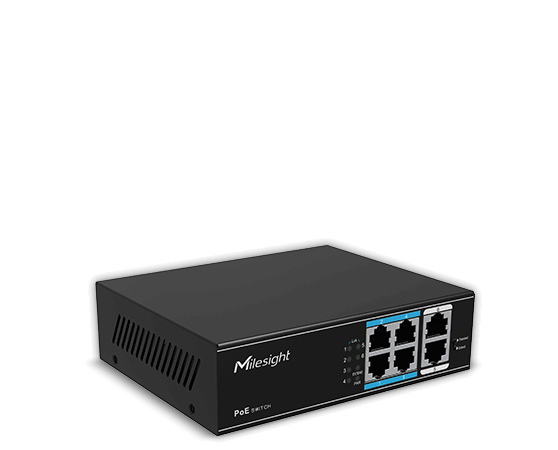

MileSight MS-S0208-EL
MileSight MS-S0208-EL
Model: MS-S0208-EL
Regular price
$180.00
Sale price
$180.00
Regular price
Available in stock
Open here
* PoE Standard: IEEE802.3 af/at
* Port Lightning Protection: 4KV 8/20us
* Protection Level: IP30
Couldn't load pickup availability
- PoE Standard: IEEE802.3 af/at
- Port Lightning Protection: 4KV 8/20us
- Protection Level: IP30
- PoE Ports: 8X10/100; Mbps
- Uplink Ports: 2X100; Mbps
- Max PoE Capacity: 120W
- Max PoE Power per Port: 30W
- Switching Capacity: 2; Gbps
- Extend Mode: √
| MS-S0204-EL | MS-S0208-EL |
|---|---|
| Ports | |
| 4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports | 8X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports |
| Standard | |
| IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | |
| 1.6Gbps (non-blocking) | 2Gbps (non-blocking) |
| Packet Forwarding Rate@64byte | |
| 0.89Mpps | 1.488Mpps |
| Packet Forwarding Cache | |
| 768K | 1.25M |
| MAC | |
| 1K | 2K |
| Power Supply | |
| Built-in switching power supply AC 100~240V, 50-60Hz, 1A | Built-in switching power supply AC 100~240V, 50-60Hz, 2.2A |
| PoE Standard | |
| IEEE802.3af/at | IEEE802.3af/at |
| Max. PoE Power | |
| Max. capacity: 65W Max. capacity for single port: 30W | Max. capacity: 120W Max. capacity for single port: 30W |
| Indicator | |
| Power Indicator: PWR (green) Network Indicator: Link (yellow) PoE Working Indicator: PoE (green) Functional Switch Indicator: EXTEND ( green) | Power Indicator: PWR (green) Network Indicator: Link (yellow) PoE Working Indicator: PoE (green) Functional Switch Indicator: EXTEND (green) |
| Cooling Fan | |
| - | - |
| Operating Temperature | |
| -20°C ~ 55°C | -20°C ~ 55°C |
| Storage Temperature | |
| -40°C ~ 75°C | -40°C ~ 75°C |
| Operating / Storage Humidity | |
| 10% ~ 90%RH (non-condensing) | 10% ~ 90%RH (non-condensing) |
| Lightning Protection / Protection Level | |
| Port lightning protection: 4KV 8/20us Protection level: IP30 | Port lightning protection: 4KV 8/20us Protection level: IP30 |
| Dimensions | |
| 142.5mm(W)X115mm(D)X40mm(H) | 195mm(W)X130mm(D)X40mm(H) |
| Weight | |
| 0.5kg | 0.7kg |
| Installation Method | |
| Desktop Mounted Type, Wall Mounted Type | Desktop Mounted Type, Wall Mounted Type |
