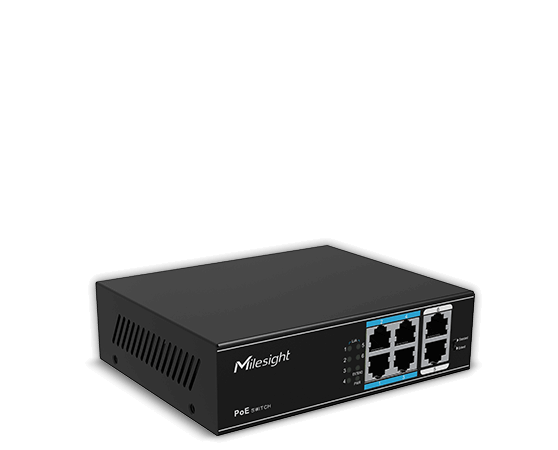

MileSight MS-S0204-EL
MileSight MS-S0204-EL
Model: MS-S0204-EL
Regular price
$112.50
Sale price
$112.50
Regular price
Available in stock
Open here
* PoE Standard: IEEE802.3 af/at
* Port Lightning Protection: 4KV 8/20us
* Protection Level: IP30
Couldn't load pickup availability
- PoE Standard: IEEE802.3 af/at
- Port Lightning Protection: 4KV 8/20us
- Protection Level: IP30
- PoE Ports: 4X10/100; Mbps
- Uplink Ports: 2X100; Mbps
- Max PoE Capacity: 60W
- Max PoE Power per Port: 30W
- Switching Capacity: 1.6; Gbps
- Extend Mode: √
| PoE Switch | |
|---|---|
| Model | MS-S0204-EL |
| Appearance | |
| Ports | 4X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports |
| Standard | IEEE802.3 10Base-T IEEE802.3i 10Base-T IEEE802.3u 100Base-TX IEEE802.3x |
| Switching Capacity | 1.6Gbps (non-blocking) |
| Packet Forwarding Rate@64byte | 0.89Mpps |
| Packet Forwarding Cache | 768K |
| MAC | 1K |
| Power Supply | Built-in switching power supply AC 100~240V, 50-60Hz, 1A |
| PoE Standard | IEEE802.3af/at |
| Max. PoE Power | Max. capacity: 65W Max. capacity for single port: 30W |
| Functional Switch | Standard Mode: Port 1~10: 10/100Mbps auto-sensing@100 meters Extend Mode: Port 1~8: 10Mbps@250 meters & Port 9~10: 100Mbps@100 meters Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect. |
| Indicator | Power Indicator: PWR (green) Network Indicator: Link (yellow) PoE Working Indicator: PoE (green) Functional Switch Indicator: EXTEND ( green) |
| Cooling Fan | - |
| Operating Temperature | -20°C ~ 55°C |
| Storage Temperature | -40°C ~ 75°C |
| Operating / Storage Humidity | 10% ~ 90%RH (non-condensing) |
| Lightning Protection / Protection Level | Port lightning protection: 4KV 8/20us Protection level: IP30 |
| Dimensions | 142.5mm(W)X115mm(D)X40mm(H) |
| Weight | 0.5kg |
| Installation Method | Desktop Mounted Type, Wall Mounted Type |
