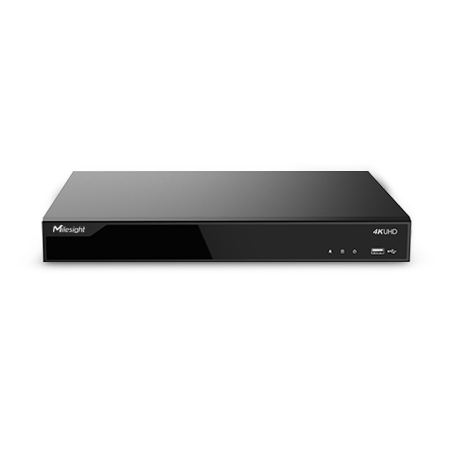

MileSight MS-N5016-NE
MileSight MS-N5016-NE
Model: MS-N5016-NE
Regular price
$596.25
Sale price
$596.25
Regular price
Available in stock
Open here
Couldn't load pickup availability
- 1*RJ45 100/1000Mbps
- 2*USB 2.0 Interfaces
- 1*RCA Audio Input + 1*RCA Audio Output
- AI Based Video Content Analysis, Face Detection, ANR, PoS Integration, ANPR Management, Auto Backup
- Bandwidth: In:160Mbps; Out:160Mbps
- Synchronous Playback: 3*8MP; 4*5MP; 12*1080P; 16*720P
- HDD Support: 2*10TB; (3.5”HDD)
- Alarm I/O: 4/1
| MS-N5008-NE | MS-N5016-NE |
|---|---|
| Video/Audio Input | |
| 8-CH | 16-CH |
| Bandwidth | |
| 160Mbps | 160Mbps |
| Outgoing | |
| 160Mbps | 160Mbps |
| Video/Audio Output | |
| 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | |
| 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | |
| Support | Support |
| Recording Resolution | |
| 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | |
| 3*(30fps @8MP), 4*(30fps @6MP), 4*(30fps @5MP), 6*(30fps @4MP), 8*(30fps @3MP), 8*(30fps @1080P), 8*(30fps @720P), 8*(30fps @D1) | 3*(30fps @8MP), 4*(30fps @6MP), 4*(30fps @5MP), 6*(30fps @4MP), 8*(30fps @3MP), 12*(30fps @1080P), 16*(30fps @720P), 16*(30fps @D1) |
| Video/Audio Compression | |
| H.264+/H.264 | H.264+/H.264 |
| Audio Compression | |
| G.711/AAC/G.722/G.726 | G.711/AAC/G.722/G.726 |
| Sample Rate | |
| 8KHz/16KHz | 8KHz/16KHz |
| Storage | |
| 2*SATA HDD(3.5”) | 2*SATA HDD(3.5”) |
| Capacity | |
| Up to 10TB capacity for each HDD | Up to 10TB capacity for each HDD |
| Recording Management | |
| Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | |
| Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | |
| General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | |
| Video Backup, Image Backup | Video Backup, Image Backup |
| Network | |
| IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| External Interface | |
| 1*RJ45 10/100/1000Mbps | 1*RJ45 10/100/1000Mbps |
| USB Interface | |
| 2*USB 2.0 | 2*USB 2.0 |
| Audio Input / Output | |
| 1*RCA/1*RCA | 1*RCA/1*RCA |
| Alarm Input / Output | |
| 4-CH/1-CH | 4-CH/1-CH |
| General | |
| ONVIF, API | ONVIF, API |
| Advanced Function | |
| ANR | ANR |
| ANPR | |
| Support | Support |
| Video Analysis | |
| Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | |
| Milesight Keyboard (MS-K01) | Milesight Keyboard (MS-K01) |
| Power Supply | |
| DC 12V 50Hz~60Hz | DC 12V 50Hz~60Hz |
| Consumption | |
| ≤4W(Without HDD) | ≤4W(Without HDD) |
| Working Conditions | |
| Temperature: -10℃~55℃ / Humidity: 10%~90% | Temperature: -10℃~55℃ / Humidity: 10%~90% |
