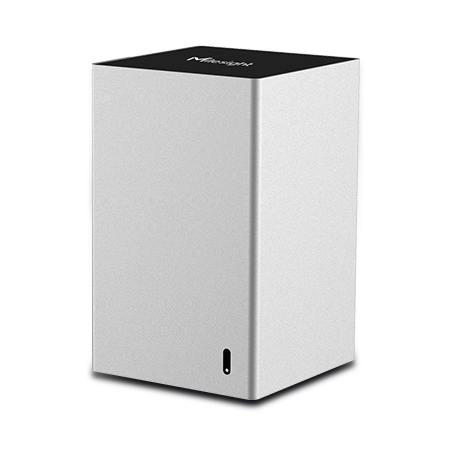

MileSight MS-N1008-UNPC
MileSight MS-N1008-UNPC
Model: MS-N1008-UNPC
Regular price
$534.38
Sale price
$534.38
Regular price
Available in stock
Open here
1*RJ45 100/1000Mbps
2*USB2.0 Interfaces
115mm(W)X115mm(D)X180mm(H)
AI based Video Content Analysis, ANR, PoS Integration, Auto Backup
Optional:
Black/Silver Color
Couldn't load pickup availability
- 1*RJ45 100/1000Mbps
- 2*USB2.0 Interfaces
- 115mm(W)X115mm(D)X180mm(H)
- AI based Video Content Analysis, ANR, PoS Integration, Auto Backup
- Optional:
- Black/Silver Color
- Bandwidth: In:80Mbps; Out:80Mbps
- Synchronous Playback: 1*8MP; 1*5MP; 4*1080P; 8*720P
- PoE Ports: 4
- HDD Support: 1*10TB; (3.5”HDD)
| MS-N1008-UPC | MS-N1008-UNPC |
|---|---|
| Device | |
| Gold SilverBlack | Gold SilverBlack |
| 220mm(W)X200mm(D)X43.6mm(H)/0.2Kg | 115mm(W)X115mm(D)X180mm(H)/1.5Kg |
| Video/Audio Input | |
| 8-CH/8*PoE Ports | 8-CH/8*PoE Ports |
| Incoming/Outcoming Bandwidth | |
| 80Mbps/80Mbps | 80Mbps/80Mbps |
| Video/Audio Output | |
| 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60H, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60H, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| Recording Resolution/ Synchronous Playback | |
| When the bite rate is ≤2048 kbps: 1*(30fps @8MP), 1*(30fps @6MP),1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps @720P) | When the bite rate is ≤2048 kbps: 1*(30fps @8MP), 1*(30fps @6MP),1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps @720P) |
| Video/Audio Compression | |
| H.264+/H.264 | H.264+/H.264 |
| Audio Compression | |
| G.711/AAC/G.722/G.726 | G.711/AAC/G.722/G.726 |
| Sample Rate | |
| 8KHz/16KHz | 8KHz/16KHz |
| Storage | |
| 1*SATA HDD(3.5”) | 1*SATA HDD(3.5”) |
| Capacity | |
| Up to 10TB capacity for each HDD | Up to 10TB capacity for each HDD |
| Recording Management | |
| Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | |
| General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | |
| Video Backup, Image Backup | Video Backup, Image Backup |
| Network | |
| IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| External Interface | |
| 1*RJ45 10/100Mbps | 1*RJ45 10/100/1000Mbps |
| USB Interface | |
| 2*USB 2.0 | 2*USB 2.0 |
| PoE Interface | |
| 4*RJ45 10 / 100Mbps | 4*RJ45 10 / 100Mbps |
| Power Output | |
| ≤40W | ≤40W |
| Supported Standard | |
| IEEE 802.3af/at | IEEE 802.3af/at |
| General | |
| ONVIF, API | ONVIF, API |
| Advanced Function | |
| ANR | ANR |
| Video Analysis | |
| Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Keyboard Control | |
| Milesight Keyboard(MS-K01) | Milesight Keyboard(MS-K01) |
| Power Supply | |
| DC 48V 1.3A | DC 48V 1.25A |
| Consumption | |
| ≤3.5W(Without HDD, without enabling PoE ) | ≤4.4W(Without HDD, without enabling PoE ) |
| Working Conditions | |
| Temperature: -10℃~55℃/Humidity: 10%~90% | Temperature: -10℃~55℃/Humidity: 10%~90% |
