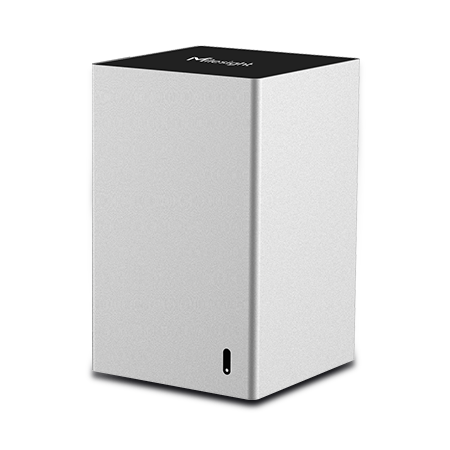

MileSight MS-N1004-UC
MileSight MS-N1004-UC
Model: MS-N1004-UC
Regular price
$286.88
Sale price
$286.88
Regular price
Available in stock
Open here
1*RJ45 10/100Mbps
2*USB 2.0 Interfaces
1*SATA HDD(3.5”) support
220mm(W)×220mm(D)×143.6mm(H)
AI based Video Content Analysis, ANR, PoS Integration, Auto Backup
Optional:
Gold/Silver Color
Couldn't load pickup availability
- 1*RJ45 10/100Mbps
- 2*USB 2.0 Interfaces
- 1*SATA HDD(3.5”) support
- 220mm(W)×220mm(D)×143.6mm(H)
- AI based Video Content Analysis, ANR, PoS Integration, Auto Backup
- Optional:
- Gold/Silver Color
- Bandwidth: In:40Mbps; Out:40Mbps
- Synchronous Playback: 1*8MP; 1*5MP; 4*1080P; 4*720P
- HDD Support: 1*10TB; (3.5”HDD)
| Mini NVR 1000 Series | |
|---|---|
| Model | MS-N1004-UC |
| Device | |
| Appearance | Gold SilverBlack |
| Video/Audio Input | |
| Network Video Input | 4-CH |
| Incoming/ Outgoing Bandwidth | 40Mbps/40Mbps |
| Video/Audio Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| Recording Resolution/ Synchronous Playback | *The recommended parameters are theoretical values only. Actual performance may vary depending on the usage environment, the number of connected cameras, and their models. *Resolutions with width or height >4096 not supported for decoding. |
| Video/Audio Compression | |
| Video Compression | H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 1*SATA HDD(3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Recording Management | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video Backup, Image Backup |
| Network | |
| Protocol | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| External Interface | |
| Network Interface | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 |
| General | |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting, Object Left, Object Removed |
| Power Supply | DC 12V 2A |
| Consumption | ≤2.3W(Without HDD) |
| Working Conditions | Temperature: -10℃~ 55℃/Humidity: 10% ~ 90% |
