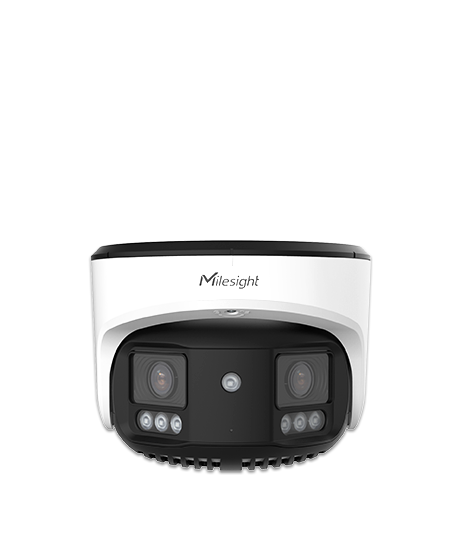

MileSight AI TrueColor Dual-sensor 180°Panoramic Network Camera
MileSight AI TrueColor Dual-sensor 180°Panoramic Network Camera
Model: MS-C8477-HPKG1
Regular price
$1,800.00
Sale price
$1,800.00
Regular price
Available in stock
Open here
* Support H.265+(Smart Stream)
* SD card, up to 1TB
Couldn't load pickup availability
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Msense：Object Counting (Crossing Line People/Vehicle/ Regional People) / Heatmap
- Support H.265+(Smart Stream)
- SD card, up to 1TB
- Resolution: 8MP 5120x1520
- Frame: 30fps
- Lens: Fixed Lens 4mm
- WDR: 140dB
- IR Distance: 30m
- Protection level: IP67 IK10
- Interface: PoE+DC+Alarm I/O+Built-in Mic+Audio Out
- Seamless 180° panoramic view
- Smart Hybrid Light
- Smart e-PTZ auto-tracking
| Series | Openvision Series |
|---|---|
| Product name | AI TrueColor Dual-sensor 180°Panoramic Network Camera |
| Main Model Name | MS-C8477-HPKG1 |
| Order Model Name | MS-C8477-HPKG1/4mm/F1.0/NX |
| Camera | |
| Model | MS-C8477-HPG1 |
| ImageSensor | Dual1/1.8″ProgressiveScanCMOS |
| Min.Illumination | Color:0.0005Lux@(F1.0,AGCON),B/W:0LuxwithIRon |
| WDR | 140dBSuperWDR |
| Lens | 4mm@F1.0 |
| Mount | M16 |
| FieldofView | H180°/V58° |
| ShutterTime | 1/100000s~1s |
| DORIDistance | Detect:62.7m Observe:24.7m Recognize:12.3m Identify:6.2m |
| LightType | 4xIRLights,2xWhiteLights |
| LightDistance | Upto30m(IRLight),Upto25m(WhiteLight) |
| IRWaveLength | 850nm |
| Day/NightMode | Day/Night/Auto/Customize |
| S/N | >55dB |
| Video | |
| Max.ImageResolution | 5120x1520 |
| PrimaryStream | 60Hz:30fps@(5120x1520),50Hz:25fps@(5120x1520) |
| SecondaryStream | 60Hz:30fps@(1280x380,960x288,736x224,640×190) 50Hz:25fps@(1280x380,960x288,736x224,640×190) |
| TertiaryStream | 60Hz:30fps@(1920x576),50Hz:25fps@(1920x576) |
| ePTZStream | 60Hz:30fps@(1920x1080),50Hz:25fps@(1920x1080) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| Image | |
| PrivacyMasking | Upto8MaskAreas |
| ROI | Upto8Areas |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| ImageEnhancement | BLC,HLC,2DDNR,3DDNR,Defog,AWB,AGC,Anti-flicker,ImageRotation,Deblur,etc. |
| Interface | |
| Ethernet | 1*RJ4510M/100MEthernetPort |
| Built-inMicrophone | Support |
| AudioInterface | 1*AudioOutInterface(Standard) |
| AlarmI/O | 1/1(Standard) |
| Network | |
| NetworkStorage | NAS(SupportNFS,SMB/CIFS),ANR |
| Protocol | IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP,UPnP, Bonjour,VPN,SIP,LLDP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2 |
| Audio | |
| G.711/AAC/G.722/G.726 | G.711/AAC/G.722/G.726 |
| AudioSamplingRate | |
| 8/16/32/44.1/48KHz | 8/16/32/44.1/48KHz |
| AudioBitRate | |
| 16~256kbps | 16~256kbps |
| Intelligent Analytics | |
| VCA2.0:IntrusionDetection,RegionEntrance,RegionExiting,AdvancedMotionDetection,LineCrossing, Loitering,ObjectLeft,ObjectRemoved | VCA2.0:IntrusionDetection,RegionEntrance,RegionExiting,AdvancedMotionDetection,LineCrossing, Loitering,ObjectLeft,ObjectRemoved |
| ObjectCounting& Report | |
| Countthenumberofobjectscrossingtheline,optionallyhumanandvehicle, andsupportregionalpeoplecountingforupto4detectionareas | Countthenumberofobjectscrossingtheline,optionallyhumanandvehicle, andsupportregionalpeoplecountingforupto4detectionareas |
| HeatMap | |
| Thebuilt-instatisticalbehavioranalysisenablesyoutoidentifythebusiestareaswithintheenvironment | Thebuilt-instatisticalbehavioranalysisenablesyoutoidentifythebusiestareaswithintheenvironment |
| FaceDetection&Face AttributeRecognition | |
| Detectandcapturefaces,getreal-timesnapshots. TheattributesincludeAge,Gender,Glasses,MaskandCap. | Detectandcapturefaces,getreal-timesnapshots. TheattributesincludeAge,Gender,Glasses,MaskandCap. |
| HardHatDetection | |
| Detectwhetherindividualsarewearingsafetyhats. Triggeranalarmwhenapersonisidentifiedwithoutahardhat. | Detectwhetherindividualsarewearingsafetyhats. Triggeranalarmwhenapersonisidentifiedwithoutahardhat. |
| SoundClassification | |
| Detectgunshot,glass-break,andscreaming. | Detectgunshot,glass-break,andscreaming. |
| PrivacyProtection | |
| Automaticallydetectfacesorhumanbodiesinthevideostreamandoverlaymosaiceffects. SupportedonPrimaryStream/SecondaryStream,CompatiblewithH.265/H.264formats. | Automaticallydetectfacesorhumanbodiesinthevideostreamandoverlaymosaiceffects. SupportedonPrimaryStream/SecondaryStream,CompatiblewithH.265/H.264formats. |
| FallDetection | |
| Detectaperson’sfallandtriggeranalarmtoalertothersfortimelyassistance. | Detectaperson’sfallandtriggeranalarmtoalertothersfortimelyassistance. |
| ViolenceDetection | |
| Identifyviolentbehaviorandtriggeranalarmtoalertotherstointerveneorpreventtheaction. | Identifyviolentbehaviorandtriggeranalarmtoalertotherstointerveneorpreventtheaction. |
| Event | |
| Support | Support |
| BasicEvent | |
| MotionDetection,TamperDetection,AudioAlarm,ExternalInput,ExternalOutput,etc. | MotionDetection,TamperDetection,AudioAlarm,ExternalInput,ExternalOutput,etc. |
| Exception | |
| NetworkDisconnection,IPAddressFiltering,RecordFailed,SDCardFull,SDCardUninitialized,SDCardError, NoSDCard,etc. | NetworkDisconnection,IPAddressFiltering,RecordFailed,SDCardFull,SDCardUninitialized,SDCardError, NoSDCard,etc. |
| EventAction | |
| FTPUploadRecord,SMTPUploadRecord,SDCardRecord,Snapshot,SIPPhone,PlayAudio,ExternalOutput, HTTPNotification,etc. | FTPUploadRecord,SMTPUploadRecord,SDCardRecord,Snapshot,SIPPhone,PlayAudio,ExternalOutput, HTTPNotification,etc. |
| System | |
| Support | Support |
| Storage | |
| SupportMicroSD/SDHC/SDXCCardLocalStorage,upto1TB | SupportMicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| SIP/VoIPSupport | |
| Yes,Voice&Video-over-IP | Yes,Voice&Video-over-IP |
| SystemCompatibility | |
| ONVIFProfileG&M&S&T,API | ONVIFProfileG&M&S&T,API |
| General | |
| -40℃~60℃ | -40℃~60℃ |
| WorkingHumidity | |
| 0~95%(Non-condensing) | 0~95%(Non-condensing) |
| PowerSupply | |
| PoE+(802.3at)/DC12V/2A±20% | PoE+(802.3at)/DC12V/2A±20% |
| PowerConsumption | |
| Min.:4.2W(DC12V),5W(PoE+) Max.:12.7W(DC12V),15W(PoE+) | Min.:4.2W(DC12V),5W(PoE+) Max.:12.7W(DC12V),15W(PoE+) |
| Weight | |
| Approx.1.5Kg | Approx.1.5Kg |
| Dimensions | |
| Φ160mmX128mm | Φ160mmX128mm |
| Warranty | |
| 3Years/5Years(Optional) | 3Years/5Years(Optional) |
| Certifications | |
| CE-EMC(EN55032,EN55035,EN61000),FCC(PART15B) | CE-EMC(EN55032,EN55035,EN61000),FCC(PART15B) |
| Safety | |
| CE-LVD(ENIEC62368-1) | CE-LVD(ENIEC62368-1) |
| Environment | |
| CE-ROHS(Directive(EU)2015/863amending2011/65/EU) | CE-ROHS(Directive(EU)2015/863amending2011/65/EU) |
| Protection | |
| IP67,IK10 | IP67,IK10 |
