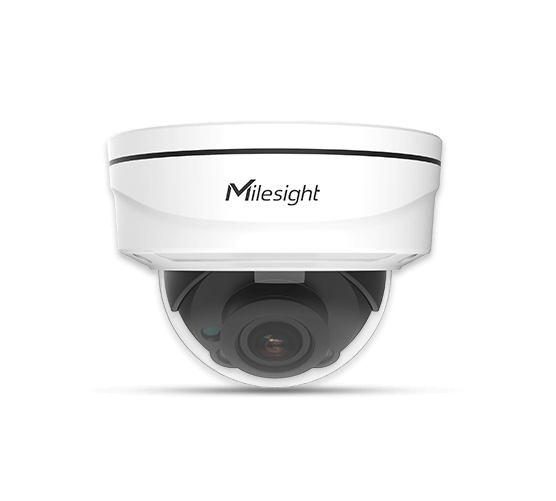

MileSight AI Motorized Pro Dome Network Camera
MileSight AI Motorized Pro Dome Network Camera
Model: MS-C8272-RFIPKG1
Regular price
$1,408.50
Sale price
$1,408.50
Regular price
Available in stock
Open here
* Support PoE; SD card, up to 1TB; 3-Axis Design
* Support H.265﹢/H.265/H.264﹢/H.264
* Support Multi-Interface Cable Versions
* Integrated Cable Management
* Multi port: Built-in Mic, Alarm I/O, Audio out, Ethernet Port(PoE), DC 12V
Couldn't load pickup availability
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Tamper Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Msense：Object Counting (Crossing Line People/Vehicle, Regional People) Heat Map,Face Detection,Hard Hat Detection,Atrribute DetectionSound Classification（Gun Shot/Glass Break/Screaming)
- Support PoE; SD card, up to 1TB; 3-Axis Design
- Support H.265﹢/H.265/H.264﹢/H.264
- Support Multi-Interface Cable Versions
- Integrated Cable Management
- Multi port: Built-in Mic, Alarm I/O, Audio out, Ethernet Port(PoE), DC 12V
- Resolution: 8MP(4K) 3840*2160
- Frame: 60fps
- Lens: Motorized lens 2.8-12mm
- WDR: 120dB
- IR Distance: 60m
- Protection level: IP67 IK10
- Interface: PoE+DC+Alarm I/O+Audio Out
- AI deep learning
- High-frame-rate monitoring
- Project-grade IP67/IK10 design
| Series | Openvision Series |
|---|---|
| Product name | AI Motorized Pro Dome Network Camera |
| Main Model Name | MS-C8272-RFIPKG1 |
| Order Model Name | MS-C8272-RFIPKG1/2.8-12mm/AU1/NX |
| Camera | |
| MS-C5372-RFIPKG1 (5MP) | MS-C8272-RFIPKG1 (8MP) |
| ImageSensor | |
| 1/2.8″ProgressiveScanCMOS | 1/1.8″ProgressiveScanCMOS |
| Min.Illumination | |
| Color:0.004Lux@F1.2 B/W:0LuxwithIRon | Color:0.004Lux@F1.2 B/W:0LuxwithIRon |
| WDR | |
| 120dBSuperWDR | 120dBSuperWDR |
| ShutterTime | |
| 1/100000s~1s | 1/100000s~1s |
| Day/NightMode | |
| Day/Night/Auto/Customize/Schedule | Day/Night/Auto/Customize/Schedule |
| DORIDistance | |
| D:86~242M O:33.5~95M R:16.5~47.5M I:8~23.5M | D:98.5~212M O:38.5~83M R:19~41.5M I:9.5~20.5M |
| S/N | |
| >55dB | >55dB |
| Illuminator | |
| 3 | 3 |
| IRWaveLength | |
| 850nm | 850nm |
| IlluminationDistance | |
| Upto50m | Upto60m |
| IlluminatorOn/OffControl | |
| Auto/Manual | Auto/Manual |
| Lens | |
| Motorized2.7mm~13.5mm@F1.2 | Motorized2.8mm~12mm@F1.2 |
| FieldofView | |
| H93.5°~H32.5°/D121°~D40.5°/V68°~V24.5° | H105°~46.5°/D122.5°~53.5°/V55.5°~26° |
| Mount | |
| Φ17 | Φ17 |
| FocusControl | |
| Auto/Manual | Auto/Manual |
| CloseFocusDistance | |
| Min.1m | W:1m;T:1.5m |
| Aperture | |
| Max.F1.2 | Max.F1.2 |
| IrisType | |
| P-Iris | P-Iris |
| CameraAngleAdjustment | |
| Pan:0°~355°,Tilt:0°~80°,Rotation:0°~355° | Pan:0°~355°,Tilt:0°~80°,Rotation:0°~355° |
| Video | |
| 2592x1944 | 3840x2160 |
| PrimaryStream | |
| 60Hz:60fps@(2592x1944,2592x1520, 2048x1536,1920x1080,1280x960,1280x720) 50Hz:50fps@(2592x1944,2592x1520, 2048x1536,1920x1080,1280x960,1280x720) | 60Hz:60fps@(3840x2160,3072x2048,2592x1944, 2592x1520,2048x1536,1920x1080,1280x960, 1280x720) 50Hz:50fps@(3840x2160,3072x2048,2592x1944, 2592x1520,2048x1536,1920x1080,1280x960, 1280x720) |
| SecondaryStream | |
| 60Hz:60fps@(704x576,640x480,640x360) 50Hz:50fps@(704x576,640x480,640x360) | 60Hz:60fps@(704x576,640x480,640x360) 50Hz:50fps@(704x576,640x480,640x360) |
| TertiaryStream | |
| 60Hz:30fps@(2048x1536,1600x1200, 1920x1080,1280x720,704x576,640x480, 640x360) 50Hz:25fps@(2048x1536,1600x1200, 1920x1080,1280x720,704x576,640x480, 640x360) | 60Hz:30fps@(1920x1080,1280x720,704x576, 640x480,640x360) 50Hz:25fps@(1920x1080,1280x720,704x576, 640x480,640x360) |
| Video | |
| 60Hz:10fps@(1280*720),30fps@(704*576,640*480,640*360) 50Hz:10fps@(1280*720),25fps@(704*576,640*480,640*360) | 60Hz:10fps@(1280*720),30fps@(704*576,640*480,640*360) 50Hz:10fps@(1280*720),25fps@(704*576,640*480,640*360) |
| VideoCompression | |
| H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | |
| 16Kbps~16Mbps(CBR/VBRAdjustable) | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| Image | |
| Upto8Areas(MaskAreaandMosaicAreaareoptional) | Upto8Areas(MaskAreaandMosaicAreaareoptional) |
| ROI | |
| Upto8areas | Upto8areas |
| ImageSetting | |
| Brightness/Contrast/Saturation/Sharpness | Brightness/Contrast/Saturation/Sharpness |
| ImageRotation | |
| Rotating180°,FlipHorizontal,FlipVertical,Clockwise90°,Anticlockwise90° | Rotating180°,FlipHorizontal,FlipVertical,Clockwise90°,Anticlockwise90° |
| ImageEnhancement | |
| BLC,HLC,DNR,AWB,Defog,AGC,Anti-flicker,Deblur,LDC | BLC,HLC,DNR,AWB,Defog,AGC,Anti-flicker,Deblur,LDC |
| AdditionalZoom | |
| Upto40X | Upto32X |
| Network | |
| NAS(SupportNFS,SMB/CIFS),ANR | NAS(SupportNFS,SMB/CIFS),ANR |
| Protocol | |
| IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,LLDP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP, SNMP,UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2 | IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,LLDP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP, SNMP,UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2 |
| Interface | |
| 1*RJ4510M/100MEthernetPort | 1*RJ4510M/100MEthernetPort |
| PowerPort | |
| DC5521 | DC5521 |
| AudioI/O | |
| Built-inMicrophoneand1AudioOutputInterface | Built-inMicrophoneand1AudioOutputInterface |
| AlarmI/O | |
| 1/1 | 1/1 |
| Audio | |
| G.711/AAC/G.722/G.726 | G.711/AAC/G.722/G.726 |
| AudioSamplingRate | |
| 8/16/32/44.1/48KHz | 8/16/32/44.1/48KHz |
| AudioBitRate | |
| 16~256kbps | 16~256kbps |
| Intelligent Analytics | |
| VCA2.0:IntrusionDetection,RegionEntrance,RegionExiting,AdvancedMotionDetection, LineCrossing,Loitering,ObjectLeft,ObjectRemoved | VCA2.0:IntrusionDetection,RegionEntrance,RegionExiting,AdvancedMotionDetection, LineCrossing,Loitering,ObjectLeft,ObjectRemoved |
| FaceDetection&Face AttributeRecognition | |
| Detectandcapturefaces,getreal-time snapshots;TheattributesincludeAge,Gender, Glasses,MaskandHat. | Detectandcapturefaces,getreal-timesnapshots; TheattributesincludeAge,Gender,Glasses,Mask andCap. |
| ObjectCounting& Report | |
| Countthenumberofobjectscrossingtheline,optionallyhumanandvehicle. Supportregionalpeoplecountingforupto4detectionareas. | Countthenumberofobjectscrossingtheline,optionallyhumanandvehicle. Supportregionalpeoplecountingforupto4detectionareas. |
| HeatMap | |
| Thebuilt-instatisticalbehavioranalysisenablesyoutoidentifythebusiestareaswithinthe environment. | Thebuilt-instatisticalbehavioranalysisenablesyoutoidentifythebusiestareaswithinthe environment. |
| SoundClassification | |
| SupportsrecognitionofspecificsoundsincludingGunshot,GlassBreak,andScreaming.Triggers real-timealarmsallowingyoutorespondquicklytoanypotentialissues. | SupportsrecognitionofspecificsoundsincludingGunshot,GlassBreak,andScreaming.Triggers real-timealarmsallowingyoutorespondquicklytoanypotentialissues. |
| HelmetDetection | |
| Detectswhetherindividualsarewearingsafetyhelmets.Triggersanalarmwhenapersonisidentified withoutahelmet,enhancingsafetycomplianceon-site. | Detectswhetherindividualsarewearingsafetyhelmets.Triggersanalarmwhenapersonisidentified withoutahelmet,enhancingsafetycomplianceon-site. |
| Event | |
| Support | Support |
| BasicEvent | |
| MotionDetection,TamperDetection,AudioAlarm,ExternalInput,ExternalOutput,etc. | MotionDetection,TamperDetection,AudioAlarm,ExternalInput,ExternalOutput,etc. |
| Exception | |
| NetworkDisconnection,IPAddressConflict,RecordFailed,SDCardFull,SDCardUninitialized,SDCard Error,NoSDCard,etc. | NetworkDisconnection,IPAddressConflict,RecordFailed,SDCardFull,SDCardUninitialized,SDCard Error,NoSDCard,etc. |
| EventAction | |
| FTPUpload,Snapshot,SMTPUpload,SDCardRecord,ExternalOutput,PlayAudio,SIPPhone,HTTP Notification,etc. | FTPUpload,Snapshot,SMTPUpload,SDCardRecord,ExternalOutput,PlayAudio,SIPPhone,HTTP Notification,etc. |
| System | |
| SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| TPM2.0 | |
| Support | Support |
| Watermark | |
| Support | Support |
| SIP/VoIPSupport | |
| Yes,Voice&Video-over-IP | Yes,Voice&Video-over-IP |
| SystemCompatibility | |
| ONVIFProfileG&M&S&T,API | ONVIFProfileG&M&S&T,API |
| Edge | |
| SupportmicroSDCardLocalStorage,upto1TB(UHS-IMicroSD,A2standardorabove); SupportSDCardHealthInformationQuery | SupportmicroSDCardLocalStorage,upto1TB(UHS-IMicroSD,A2standardorabove); SupportSDCardHealthInformationQuery |
| NXMerge | |
| Max.16Cameras | Max.16Cameras |
| General | |
| -40℃~60℃ | -40℃~60℃ |
| WorkingHumidity | |
| 0~95%RH(Non-condensing) | 0~95%RH(Non-condensing) |
| CPU | |
| Dual-core64-bitArmCA53processor | Dual-core64-bitArmCA53processor |
| Memory | |
| 2GBRAM,4GBFlash | 2GBRAM,4GBFlash |
| PowerSupply | |
| PoE(802.3af)/DC10V~DC28V (Note:WhenboththepoweradapterandPoEareconnected,pleasedisconnecteitherone.Thiswillnot causethedevicetorestart;itwillcontinuetoworknormally.) | PoE(802.3af)/DC10V~DC28V (Note:WhenboththepoweradapterandPoEareconnected,pleasedisconnecteitherone.Thiswillnot causethedevicetorestart;itwillcontinuetoworknormally.) |
| PowerConsumption | |
| Min.:3W(DC),4W(PoE) Max.:8.5W(DC),10.5W(PoE) | Min.:4W(DC),5W(PoE) Max.:9.5W(DC),11W(PoE) |
| SurgeProtection | |
| 6KV | 6KV |
| NetWeight | |
| 1250g | 1250g |
| GrossWeight | |
| 1550g | 1550g |
| Dimensions | |
| Φ143mmX108.4mm | Φ143mmX108.4mm |
| Warranty | |
| 3/5Years | 3/5Years |
| Certification | |
| CE-EMC(EN55032,EN55035),FCC(PART15B) | CE-EMC(EN55032,EN55035),FCC(PART15B) |
| Safety | |
| CE-LVD(ENIEC62368-1) | CE-LVD(ENIEC62368-1) |
| Environment | |
| CE-ROHS(Directive(EU)2015/863amending2011/65/EU) | CE-ROHS(Directive(EU)2015/863amending2011/65/EU) |
| Protection | |
| IP67,IK10 | IP67,IK10 |
