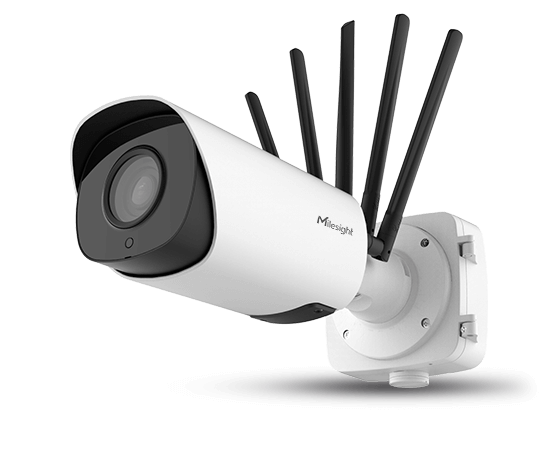

MileSight 5G AIoT 4X Pro Bullet Plus Network Camera
MileSight 5G AIoT 4X Pro Bullet Plus Network Camera
Model: MS-C8266-X4GOPC/868M/A62
Regular price
$2,877.19
Sale price
$2,877.19
Regular price
Available in stock
Open here
* Support 5G/4G/3G,P2P, Nano SIM
* Built-in LoRaWAN® Gateway
* LoRaWAN Frequency: IN865 / EU868 / RU864-4.52dBi
* Support Connection with more than 2000 LoRaWAN® Sensors / Nodes from 8 End-Devices Simultaneously
* High Capacity, High Compatibility, Embedded Network Server
* Support SD card, up to 256GB
Couldn't load pickup availability
- VCA1.0：Region Entrance/ Region Exiting/ Advanced Motion Detection/ Tamper Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Msense：People Counting (Crossing Line /Regional) , Heat Map, Face Detection
- Support 5G/4G/3G,P2P, Nano SIM
- Built-in LoRaWAN® Gateway
- LoRaWAN Frequency: IN865 / EU868 / RU864-4.52dBi
- Support Connection with more than 2000 LoRaWAN® Sensors / Nodes from 8 End-Devices Simultaneously
- High Capacity, High Compatibility, Embedded Network Server
- Support SD card, up to 256GB
- Resolution: 8MP 3840*2160
- Frame Rate: 30fps
- Lens: AF 8~32mm, 4X optical zoom
- WDR: 120dB
- IR Distance: 60m
- Protection level: IP67 (Camera Body)
- Interface: Alarm I/O, Audio I/O, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V
- 5G connectivity
- IoT connection
- AI deep learning
| Series | 5G Series |
|---|---|
| Product Name | 5G AIoT 4X Pro Bullet Plus Network Camera |
| Main Model Name | MS-C8266-X4GOPC |
| Order Model Name | MS-C8266-X4GOPC/868M/A62 |
| Camera | |
| Model | MS-C8266-X4GOPC (4K) |
| ImageSensor | 1/1.8″ProgressiveScanCMOS |
| Min.Illumination | Color:0.009Lux@F1.6 B/W:0LuxwithIRon |
| WDR | 120dBSuperWDR |
| ShutterTime | 1/100000s~1s |
| IRDistance | Upto180m |
| Day/NightMode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | 8~32mm,4XOpticalZoom |
| FieldofView | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| FocusControl | Auto/Manual |
| Aperture | F1.6-F1.7 |
| IrisControl | Auto |
| Video | |
| Max.ImageResolution | 3840x2160 |
| PrimaryStream | 60Hz:30fps@(3840x2160,3072x2048,2592x1944,2592x1520,2048x1536,1920x1080,1280x960, 1280x720,704x576) 50Hz:25fps@(3840x2160,3072x2048,2592x1944,2592x1520,2048x1536,1920x1080,1280x960, 1280x720,704x576) |
| SecondaryStream | 60Hz:30fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180) 50Hz:25fps@(704x576,640x480,640x360,352x288,320x240,320x192,320x180) |
| TertiaryStream | 60Hz:30fps@(1920x1080,1280x720,704x576,640x480,640x360,320x240,320x192,320x180) 50Hz:25fps@(1920x1080,1280x720,704x576,640x480,640x360,320x240,320x192,320x180) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| PrivacyMasking | Upto28areas(24maskareasand4mosaicareas) |
| ROI | Upto8areas |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ4510M/100MEthernetPort |
| AudioI/O | 1/1 |
| AlarmI/O | 1/1 |
| Mobile Communication Parameter | |
| WirelessCommunication | Support5G/4G/3G |
| Frequency Bands | |
| 5GNR | n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79 |
| LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE-TDD | B34/B38/39/B40/B41/B42/B48 |
| LAA | B46 |
| WCDMA | B1/B2/B3/B4/B5/B6/B8/B19 |
| GNSS | GPS/GLONASS/BeiDou/Galileo |
| Wireless Transmission Speed | |
| SA | DL3.3Gbps;UL250Mbps |
| NSA | DL3.4Gbps;UL200Mbps |
| LTE | DL2.0Gbps;UL150Mbps |
| WCDMA | DL42Mbps;UL5.76Mbps |
| SIMCard | NanoSIM |
| LoRaWAN® | |
| Antenna | 1*50ΩSMA-FemaleExternalAntennaConnector |
| Channel | 8channelssimultaneously |
| Demodulation | 1Mhz |
| FrequencyBand | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923/AS923-2 |
| Sensitivity | -140dBmSensitivity@292bps |
| OutputPower | 27dBmMax |
| Protocol | V1.0ClassA/ClassB/ClassCandV1.0.2ClassA/ClassB/ClassC |
| CommunicationRange | Upto15km |
| Network | |
| NetworkStorage | NAS(SupportNFS,SMB/CIFS),ANR |
| Protocol | IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP, UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL |
| Audio | |
| AudioCompression | G.711/AAC/G.722/G.726 |
| AudioSamplingRate | 8/16/32/44.1/48KHz |
| AudioBitRate | 16~256kbps |
| Two-wayAudio | Support |
| Intelligent Analytics | |
| VideoAnalysis | RegionEntrance,RegionExiting,AdvancedMotionDetection,TamperDetection, LineCrossing,Loitering,ObjectLeft,ObjectRemoved |
| FaceDetection | Detectandcapturefaces,getreal-timesnapshots |
| PeopleCounting& Report | Countthenumberofpeopleenteringorexiting, upto4detectionareasforregionalpeoplecounting |
| System | |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto256G |
| AdvancedFunction | |
| HeatMap,BLC,HLC,2DDNR,3DDNR, Defog,AWB,EIS,IPAddressFiltering,AGC,Anti-flicker,CorridorMode,Deblur,Watermark | HeatMap,BLC,HLC,2DDNR,3DDNR, Defog,AWB,EIS,IPAddressFiltering,AGC,Anti-flicker,CorridorMode,Deblur,Watermark |
| SIP/VoIPSupport | |
| Yes,Voice&Video-over-IP | Yes,Voice&Video-over-IP |
| EventTrigger | |
| IoTSensorAlarm,MotionDetection,NetworkDisconnection,ExternalInput,AudioAlarm,etc. | IoTSensorAlarm,MotionDetection,NetworkDisconnection,ExternalInput,AudioAlarm,etc. |
| EventAction | |
| FTPUpload,SMTPUpload,SDCardRecord,ExternalOutput,SIPPhone,HTTPNotification,etc. | FTPUpload,SMTPUpload,SDCardRecord,ExternalOutput,SIPPhone,HTTPNotification,etc. |
| SystemCompatibility | |
| ONVIFProfileG&Q&S&T,API | ONVIFProfileG&Q&S&T,API |
| General | |
| -40℃~60℃ | -40℃~60℃ |
| WorkingHumidity | |
| 0~90%(Non-condensing) | 0~90%(Non-condensing) |
| PowerSupply | |
| PoE(802.3at)/DC12V±10% | PoE(802.3at)/DC12V±10% |
| PowerConsumption SurgeProtection | |
| 12WMAX | 12WMAX |
| 16WMAX(WithIRon) | |
| 18WMAX(WithIRon) | 18WMAX(WithIRon) |
| WeatherProof | |
| UptoIP67-ratedforWeather-resistantPerformance(Onlyforcamerabody) | UptoIP67-ratedforWeather-resistantPerformance(Onlyforcamerabody) |
| Weight | |
| 1636g | 1636g |
| Dimensions | |
| 320mmX134mmX126mm 320mmX134mmX292mm(WithAntennas) | 320mmX134mmX126mm 320mmX134mmX292mm(WithAntennas) |
| Warranty | |
| 3/5Years | 3/5Years |
