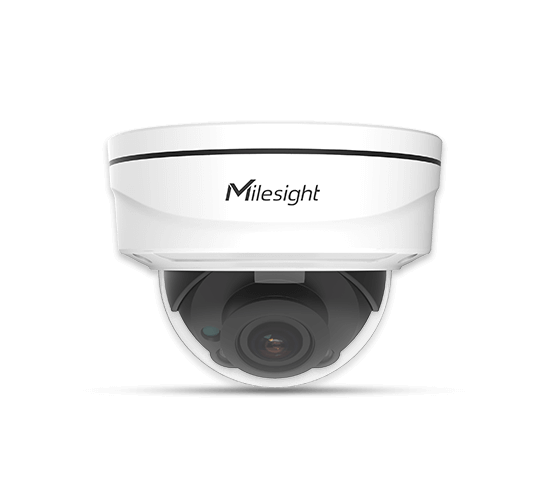

MileSight AI Motorized Pro Dome Network Camera
MileSight AI Motorized Pro Dome Network Camera
Model: MS-C5372-RFIPKG1
Regular price
$1,170.00
Sale price
$1,170.00
Regular price
Available in stock
Open here
* Support PoE; SD card, up to 1TB; 3-Axis Design
* Support H.265﹢/H.265/H.264﹢/H.264
* Support Multi-Interface Cable Versions
* Integrated Cable Management
* Multi port: Built-in Mic, Alarm I/O, Audio out, Ethernet Port(PoE), DC 12V
Couldn't load pickup availability
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Tamper Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Msense：Object Counting (Crossing Line People/Vehicle, Regional People) Heat Map,Face Detection,Hard Hat Detection,Atrribute DetectionSound Classification（Gun Shot/Glass Break/Screaming)
- Support PoE; SD card, up to 1TB; 3-Axis Design
- Support H.265﹢/H.265/H.264﹢/H.264
- Support Multi-Interface Cable Versions
- Integrated Cable Management
- Multi port: Built-in Mic, Alarm I/O, Audio out, Ethernet Port(PoE), DC 12V
- Resolution: 5MP 2592*1944
- Frame: 60fps
- Lens: Motorized Lens 2.7~13.5mm
- WDR: 120dB
- IR Distance: 50m
- Protection level: IP67 IK10
- Interface: PoE+DC+Alarm I/O+Audio Out
- AI deep learning
- High-frame-rate monitoring
- Project-grade IP67/IK10 design
| Series | Openvision Series |
|---|---|
| Product name | AI Motorized Pro Dome Network Camera |
| Main Model Name | MS-C5372-RFIPKG1 |
| Order Model Name | MS-C5372-RFIPKG1/2.7-13.5mm/AU1/NX |
| Camera | |
| Model | MS-C5372-RFIPKG1 (5MP) |
| ImageSensor | 1/2.8″ProgressiveScanCMOS |
| Min.Illumination | Color:0.004Lux@F1.2 B/W:0LuxwithIRon |
| WDR | 120dBSuperWDR |
| ShutterTime | 1/100000s~1s |
| Day/NightMode | Day/Night/Auto/Customize/Schedule |
| DORIDistance | D:86~242M O:33.5~95M R:16.5~47.5M I:8~23.5M |
| S/N | >55dB |
| Illuminator | |
| IlluminatorNumber | 3 |
| IRWaveLength | 850nm |
| IlluminationDistance | Upto50m |
| IlluminatorOn/OffControl | Auto/Manual |
| Lens | Motorized2.7mm~13.5mm@F1.2 |
| FieldofView | H93.5°~H32.5°/D121°~D40.5°/V68°~V24.5° |
| Mount | Φ17 |
| FocusControl | Auto/Manual |
| CloseFocusDistance | Min.1m |
| Aperture | Max.F1.2 |
| IrisType | P-Iris |
| CameraAngleAdjustment | Pan:0°~355°,Tilt:0°~80°,Rotation:0°~355° |
| Video | |
| Max.ImageResolution | 2592x1944 |
| PrimaryStream | 60Hz:60fps@(2592x1944,2592x1520, 2048x1536,1920x1080,1280x960,1280x720) 50Hz:50fps@(2592x1944,2592x1520, 2048x1536,1920x1080,1280x960,1280x720) |
| SecondaryStream | 60Hz:60fps@(704x576,640x480,640x360) 50Hz:50fps@(704x576,640x480,640x360) |
| TertiaryStream | 60Hz:30fps@(2048x1536,1600x1200, 1920x1080,1280x720,704x576,640x480, 640x360) 50Hz:25fps@(2048x1536,1600x1200, 1920x1080,1280x720,704x576,640x480, 640x360) |
| QuaternaryStream | 60Hz:10fps@(1280*720),30fps@(704*576,640*480,640*360) 50Hz:10fps@(1280*720),25fps@(704*576,640*480,640*360) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| Image | |
| PrivacyMasking | Upto8Areas(MaskAreaandMosaicAreaareoptional) |
| ROI | Upto8areas |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| ImageRotation | Rotating180°,FlipHorizontal,FlipVertical,Clockwise90°,Anticlockwise90° |
| ImageEnhancement | BLC,HLC,DNR,AWB,Defog,AGC,Anti-flicker,Deblur,LDC |
| AdditionalZoom | Upto40X |
| Network | |
| NetworkStorage | NAS(SupportNFS,SMB/CIFS),ANR |
| Protocol | IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,LLDP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP, SNMP,UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2 |
| Interface | |
| Ethernet | 1*RJ4510M/100MEthernetPort |
| PowerPort | DC5521 |
| AudioI/O | Built-inMicrophoneand1AudioOutputInterface |
| AlarmI/O | 1/1 |
| Audio | |
| AudioCompression | G.711/AAC/G.722/G.726 |
| AudioSamplingRate | 8/16/32/44.1/48KHz |
| AudioBitRate | 16~256kbps |
| Intelligent Analytics | |
| VideoAnalysis | VCA2.0:IntrusionDetection,RegionEntrance,RegionExiting,AdvancedMotionDetection, LineCrossing,Loitering,ObjectLeft,ObjectRemoved |
| AttributeExtraction | Simultaneouslydetectupto50targetsandcapturehumansandvehiclesinrealtime. RecognizeattributesincludingUpperandLowerClothingColor,Hat,andVehicleTypes(Bicycle,Car, Motorcycle,Bus,Truck,E-scooter). |
| FaceDetection&Face AttributeRecognition | Detectandcapturefaces,getreal-time snapshots;TheattributesincludeAge,Gender, Glasses,MaskandHat. |
| ObjectCounting& Report | Countthenumberofobjectscrossingtheline,optionallyhumanandvehicle. Supportregionalpeoplecountingforupto4detectionareas. |
| HeatMap | Thebuilt-instatisticalbehavioranalysisenablesyoutoidentifythebusiestareaswithinthe environment. |
| SoundClassification | SupportsrecognitionofspecificsoundsincludingGunshot,GlassBreak,andScreaming.Triggers real-timealarmsallowingyoutorespondquicklytoanypotentialissues. |
| HelmetDetection | Detectswhetherindividualsarewearingsafetyhelmets.Triggersanalarmwhenapersonisidentified withoutahelmet,enhancingsafetycomplianceon-site. |
| Event | |
| One-ClickDisarm | Support |
| BasicEvent | MotionDetection,TamperDetection,AudioAlarm,ExternalInput,ExternalOutput,etc. |
| Exception | NetworkDisconnection,IPAddressConflict,RecordFailed,SDCardFull,SDCardUninitialized,SDCard Error,NoSDCard,etc. |
| EventAction | FTPUpload,Snapshot,SMTPUpload,SDCardRecord,ExternalOutput,PlayAudio,SIPPhone,HTTP Notification,etc. |
| System | |
| Storage | SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB |
| TPM2.0 | Support |
| Watermark | Support |
| SIP/VoIPSupport | Yes,Voice&Video-over-IP |
| SystemCompatibility | ONVIFProfileG&M&S&T,API |
| VMSSupport | Nxwitness,MilestoneXProtect,GenetecSecurityCenter,DigifortVMS,AXXONOne,ArtecouSee, ArtecoOmnia,3dEYEVideoPortal,CamcloudCloudVideoSurveillance,SalientCompleteViewVMS, CathexisVision,MirasysVMS,DigieverCMS,WatchfulOSetc. |
| Edge | |
| EdgeStorage | SupportmicroSDCardLocalStorage,upto1TB(UHS-IMicroSD,A2standardorabove); SupportSDCardHealthInformationQuery |
| EdgeVMS | SingleCameraMode: Supporttoregisterthemaximumnumberofthecamera-upto1camera (purchasethelicensewith1× NXchannel)-totalbandwidth:Upto11Mbps. Multi-cameraMode: Supporttoregisterthemaximumnumberofthecamera-upto4cameras (purchasethelicensewith4× NXchannel)-totalbandwidth:Upto11Mbps. *AImodecanbeenabledonlywhenhosting1additionalcamera.Whenhosting3additionalcameras, AIModecannotbeenabledandonlybasicvideostreamsaresupported. |
| NXMerge | Max.16Cameras |
| General | |
| WorkingTemperature | -40℃~60℃ |
| WorkingHumidity | 0~95%RH(Non-condensing) |
| CPU | Dual-core64-bitArmCA53processor |
| Memory | 2GBRAM,4GBFlash |
| PowerSupply | PoE(802.3af)/DC10V~DC28V (Note:WhenboththepoweradapterandPoEareconnected,pleasedisconnecteitherone.Thiswillnot causethedevicetorestart;itwillcontinuetoworknormally.) |
| PowerConsumption | Min.:3W(DC),4W(PoE) Max.:8.5W(DC),10.5W(PoE) |
| SurgeProtection | 6KV |
| NetWeight | 1250g |
| GrossWeight | 1550g |
| Dimensions | Φ143mmX108.4mm |
| Warranty | 3/5Years |
| Certification | |
| EMC | CE-EMC(EN55032,EN55035),FCC(PART15B) |
| Safety | CE-LVD(ENIEC62368-1) |
| Environment | CE-ROHS(Directive(EU)2015/863amending2011/65/EU) |
| Protection | IP67,IK10 |
