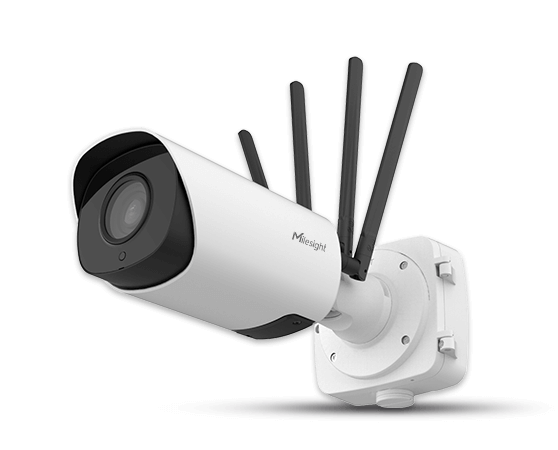

MileSight 5G AI 4X/12X Pro Bullet Plus Network Camera
MileSight 5G AI 4X/12X Pro Bullet Plus Network Camera
Model: MS-C2966-X12TGPE/A62
Regular price
$2,444.06
Sale price
$2,444.06
Regular price
Available in stock
Open here
* Support 5G/4G/3G,P2P, Nano SIM
* Support SD card, up to 1TB
* Support H.265﹢/H.265/H.264﹢/H.264
* Integrated Cable Management
Couldn't load pickup availability
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Tamper Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Msense：Object Counting (Crossing Line People/Vehicle, Regional People) Heat Map,Face Detection
- Support 5G/4G/3G,P2P, Nano SIM
- Support SD card, up to 1TB
- Support H.265﹢/H.265/H.264﹢/H.264
- Integrated Cable Management
- Resolution: 2MP 1920*1080
- Frame Rate: 90fps
- Lens: AF 5.3~64mm, 12X optical zoom
- WDR: 140dB
- IR Distance: 50m
- Protection level: IP67 (Camera Body)
- Interface: Alarm I/O, Audio I/O, 1*RJ45 10M/100M Ethernet Port(PoE), DC12V
- 5G connectivity
- AI deep learning
- Optical zoom
| Series | 5G Series |
|---|---|
| Product Name | 5G AI 4X/12X Pro Bullet Plus Network Camera |
| Main Model Name | MS-C2966-X12TGPE |
| Order Model Name | MS-C2966-X12TGPE/A62 |
| Camera | |
| Model | MS-C2966-X12TGPE (2MP) |
| ImageSensor | 1/2.8″ProgressiveScanCMOS |
| Min.Illumination | Color:0.005Lux@F1.6 B/W:0LuxwithIRon |
| WDR | 140dBSuperWDR |
| ShutterTime | 1/100000s~1s |
| IRDistance | Upto180m |
| Day/NightMode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | 5.3~64mm,12XOpticalZoom |
| FieldofView | H61°~H5°/D69°~D5°/V36°~V2° |
| Mount | Φ14 |
| FocusControl | Auto/Manual |
| Aperture | F1.6~F2.8 |
| IrisControl | Auto |
| Video | |
| Max.ImageResolution | 1920x1080 |
| PrimaryStream | 60Hz:90fps@(1920x1080,1280x960,1280x720, 704x576) 50Hz:90fps@(1920x1080,1280x960,1280x720, 704x576) |
| SecondaryStream | 60Hz:60fps@(704x576,640x480,640x360, 352x288,320x240,320x192,320x180) 50Hz:50fps@(704x576,640x480,640x360, 352x288,320x240,320x192,320x180) |
| TertiaryStream | 60Hz:30fps@(1920x1080,1280x720,704x576,640x480,640x360,320x240,320x192,320x180) 50Hz:25fps@(1920x1080,1280x720,704x576,640x480,640x360,320x240,320x192,320x180) |
| VideoCompression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| VideoBitRate | 16Kbps~16Mbps(CBR/VBRAdjustable) |
| PrivacyMasking | Upto8Areas(MaskAreaandMosaicAreaareoptional) |
| ROI | Upto8areas |
| ImageSetting | Brightness/Contrast/Saturation/Sharpness |
| Interface | |
| Ethernet | 1*RJ4510M/100MEthernetPort |
| AudioI/O | 1/1 |
| AlarmI/O | 1/1 |
| Mobile Communication Parameter | |
| WirelessCommunication | WirelessCommunication |
| Frequency Bands | 5GNR |
| Wireless Transmission Speed | SA |
| SIMCard | SIMCard |
| Network | |
| NetworkStorage | NetworkStorage |
| Protocol | Protocol |
| Audio | |
| AudioCompression | AudioCompression |
| AudioSamplingRate | AudioSamplingRate |
| AudioBitRate | AudioBitRate |
| Two-wayAudio | Two-wayAudio |
| Intelligent Analytics | |
| VideoAnalysis | VideoAnalysis |
| FaceDetection&Face AttributeRecognition | FaceDetection&Face AttributeRecognition |
| ObjectCounting&Report | ObjectCounting&Report |
| System | |
| Storage | Storage |
| AdvancedFunction | AdvancedFunction |
| SIP/VoIPSupport | SIP/VoIPSupport |
| EventTrigger | EventTrigger |
| EventAction | EventAction |
| SystemCompatibility | SystemCompatibility |
| General | |
| -40℃~60℃ | -40℃~60℃ |
| WorkingHumidity | |
| 0~90%(Non-condensing) | 0~90%(Non-condensing) |
| PowerSupply | |
| PoE(802.3at)/DC12V±10% | PoE(802.3at)/DC12V±10% |
| PowerConsumption | |
| 8WMAX | 8WMAX |
| 16WMAX(WithIRon) | |
| 17WMAX(WithIRon) | 17WMAX(WithIRon) |
| SurgeProtection | |
| 4KV | 4KV |
| WeatherProof | |
| UptoIP67-ratedforWeather-resistantPerformance(Onlyforcamerabody) | UptoIP67-ratedforWeather-resistantPerformance(Onlyforcamerabody) |
| Weight | |
| 1608g | 1608g |
| Dimensions | |
| 320mmX134mmX126mm 320mmX134mmX292mm(With5GAntennas) | 320mmX134mmX126mm 320mmX134mmX292mm(With5GAntennas) |
| Warranty | |
| 3/5Years | 3/5Years |
