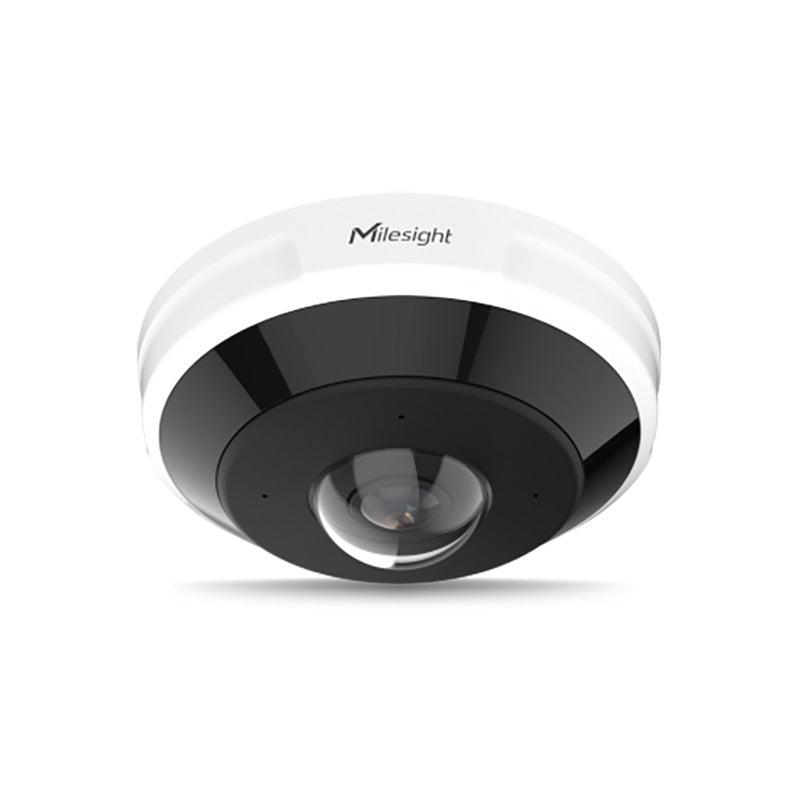

MileSight AI 360° Panoramic Fisheye Network Camera - MS-C12174-YPG1/M1
MileSight AI 360° Panoramic Fisheye Network Camera - MS-C12174-YPG1/M1
Model: MS-C12174-YPG1/M1
Regular price
$1,332.55
Sale price
$1,332.55
Regular price
Available in stock
Open here
MileSight 12 MP AI 360° panoramic fisheye network camera with a 1.7 mm lens, 20 m infrared range, 4 microphones and flexible dewarped panoramic viewing for wide-area surveillance.
Couldn't load pickup availability
- 12 MP (3520 × 3520) recording at up to 30 fps
- 360° ceiling/flat view and 180° wall panorama
- 1.7 mm fixed lens and 120 dB Super WDR
- Fisheye dewarping and electronic PTZ
- 4 microphones and a built-in speaker for audio applications
- AI counting, heat maps and sound-event classification
- 2 microSD slots, each supporting up to 1 TB
- IP67 and IK10 outdoor protection
- Support 1000M PoE; SD card up to 2*1TB ,Anti-disassembly design
- Support H.265+(Smart Stream)/H.265/H.264+(Smart Stream)/H.264
- Display Mode: Fisheye View, 180° Panorama View, Dual-Channel 180° Panoramic View, 4PTZ, Fisheye + 3PTZ
- ePTZ, TPM2.0(Secure element (FIPS 140-3 level 3, CC EAL 4+))
- Transfer Mode: Bundle-Stream Mode, Multi-Channel Mode
- Surge Protection 4KV
- VCA2.0：Intrusion Detection/ Region Entrance/ Region Exiting/ Advanced Motion Detection/ Line Crossing/ Loitering/ Object Left/Removed
- Object Counting (Crossing Line People/Vehicle/ Regional People) / Heat Map/ Privacy Protection/ Sound Classification/ Sound Assisted Location
| Camera & optics | |
|---|---|
| Model | MS-C12174-YPG1 |
| Image sensor | 1/1.6-inch progressive scan CMOS |
| Max resolution | 3520 × 3520 (12 MP) |
| Frame rate | Up to 30 fps at 12 MP (60 Hz) |
| Minimum illumination | 0.008 lux color at F2.0; 0 lux with IR on |
| Lens | Fixed 1.7 mm |
| Aperture | F2.0 |
| Field of view | Ceiling/flat mount: 360°; wall mount: 180° |
| Wide dynamic range | 120 dB Super WDR |
| Shutter | 1/100,000 s to 1 s |
| S/N ratio | >55 dB |
| IR LEDs | 4 × 850 nm |
| IR distance | Up to 20 m |
| DORI at ceiling mount | Detect 50.55 m; observe 20.22 m; recognize 10.11 m; identify 5.05 m |
| DORI at wall mount | Detect 34.67 m; observe 13.87 m; recognize 6.93 m; identify 3.47 m |
| Imaging & viewing | |
| Image layout modes | Fisheye 360°, 180° panorama, dual 180° panoramas, 4 PTZ, fisheye + 3 PTZ |
| Remote PTZ | Electronic PTZ with sound-assisted localization |
| Image rotation | 0–359° digital rotation |
| Video compression | H.265+, H.265, H.264+, H.264 |
| Video bit rate | 16 Kbps–16 Mbps |
| ROI | Up to 8 areas |
| Privacy masking | Up to 8 areas |
| Image settings | Brightness, contrast, saturation, sharpness, day/night, BLC/HLC/DNR and AWB |
| AI, audio & events | |
| VCA 2.0 events | Intrusion detection; region entrance/exit; advanced motion detection; line crossing; loitering; left/removed object detection |
| Counting | Line crossing/regional people counting; heat maps |
| Audio event classification | Gunshot, glass break, screaming and sound-assisted location |
| Microphones | 4 integrated microphones |
| Speaker | Built-in speaker |
| Audio codecs | G.711, AAC, G.722, G.726 |
| Audio input/output | 1 / 1 |
| Alarm inputs/outputs | 2 / 2 |
| Storage & system | |
| Ethernet | 1 × RJ45 10/100/1000 Mbps |
| Storage | 2 × microSD slots; up to 1 TB per slot (2 TB total) |
| NAS | NFS/SMB; ANR |
| Security | TPM 2.0 secure element |
| Interoperability | ONVIF Profiles G, M, S, T and API |
| Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, LLDP, RTMP, HTTP/HTTPS, DNS/DDNS/DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1X, QoS, IGMP, ICMP, SSL/TLS 1.2 |
| General | |
| Power | PoE (IEEE 802.3af) or DC 12 V ±10% |
| DC consumption | Approx. 5.6 W min; 9.9 W max |
| PoE consumption | Approx. 7.2 W min; 11.9 W max |
| Operating temperature | −40 °C to +60 °C |
| Relative humidity | 0–90% non-condensing |
| Surge protection | 4 kV |
| Protection | IP67 / IK10 |
| Dimensions | 140 × 140 × 61 mm |
| Weight | Approx. 733.7 g |
| Warranty | 5 years (manufacturer datasheet) |
| NDAA | Yes (per supplied dealer catalog) |
| Exact SKU & dealer catalog cross-check | |
| Galaxy order model | MS-C12174-YPG1/M1 |
| Dealer series | Panoramic Series |
| Production status | MP |
| Catalog material code | 60.014.010006 |
| Catalog resolution | 12MP (3520x3520) |
| Catalog frame rate | 30fps |
| Catalog lens | Fixed Lens 1.7mm |
| Catalog aperture | F2.0 |
| Sensor format | 1/1.6'' |
| Field of view | Ceiling Mount: 360°; Wall Mount: 180°; Flat Mount: 360° |
| Catalog WDR | 120dB |
| Catalog IR distance | 20m |
| Color | White |
| Built-in microphones | Four |
| Interfaces | DC+PoE+Alarm 2*I/2*O+Audio I/O+RS485+Built-in Speaker & 4 Mic |
| Ingress & impact rating | IP67 IK10 |
| Housing material | Metal+plastic |
| NDAA | Yes |
