Uniview KIT301-08LS3-W/4*2122LB-ABF40WK-G 8CH 4CAM 2MP Bullet WiFi Kit
Uniview KIT301-08LS3-W/4*2122LB-ABF40WK-G 8CH 4CAM 2MP Bullet WiFi Kit
Model: KIT301-08LS3-W/4*2122LB-ABF40WK-G
Regular price
$646.70
Sale price
$646.70
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here

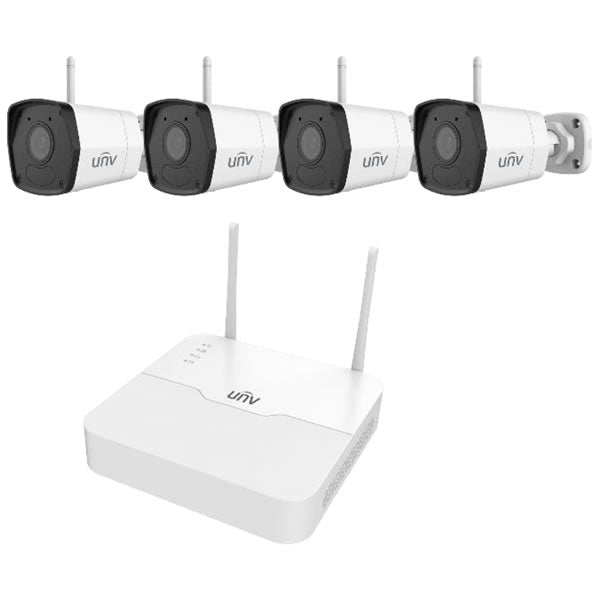

8-ch, 1 SATA interface, Mini 1U, H.264, H.265, no PoE ports, 4 pcs 2MP WiFi bullet cameras, One 8-ch NVR and 4 x 2MP Wi-Fi bullet cameras with 1TB Hard Drive Installed
Couldn't load pickup availability
- Embedded WiFi Module with high-performance and high stability
- Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA synchronous outputs provided
- Up to 1080P resolution recording
- 1 SATA HDD, Up to 6TB for each HDD
- Support cloud upgrade
| Model | NVR301-08LS3 | ||||
| Video/Audio Input | |||||
| IP Video Input | 8-ch | ||||
| Network | |||||
| Incoming Bandwidth | 64Mbps | ||||
| Outgoing Bandwidth | 48Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 8-ch | ||||
| Liveview display | 1/4/6/8/9 | ||||
| Corridor Mode Screen | 3/4/5/7/9 | ||||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interface | ||||
| Capacity | up to 6TB for each disk | ||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||||
| VCA Search | Face Search, Behavior Search | ||||
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| RS232 | NA | ||||
| RS485 | NA | ||||
| Alarm In | NA | ||||
| Alarm Out | NA | ||||
| General | |||||
| Power Supply | 52V DC Power Consumption: </=9 W (without HDD) |
||||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity </= 90% RH (non-condensing) | ||||
| Dimensions (W×D×H) | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") | ||||
| Weight (without HDD) | </=0.8 kg (1.76 lb) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||
| Model | IPC2122LB-AF28WK-G | ||||
| Camera | |||||
| Sensor | 1/2.9", 2.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.01 Lux (F2.0 AGC ON) 0 Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | ||||
| S/N | >52dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of view(H) | 101.1° | ||||
| Angle of View (V) | 55.0° | ||||
| Angle of View (O) | 111.0° | ||||
| DORI | |||||
| DORI Distance | Lens 2.8mm, Detect(45.0m), Observe(18.0m), Recognize(9.0m), Identify(4.5m) | ||||
| Illuminator | |||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Human body detection, Motion detection, tampering alarm, audio detection | ||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Wi-Fi | |||||
| Wireless Standards | IEEE802.11b/g/n | ||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | ||||
| Channel Bandwidth | 20 MHz Support | ||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT |
||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | ||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps |
||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) |
||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps |
||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||
| General | |||||
| Power | DC 12V±25% | ||||
| Power consumption: Max 4.0 W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (L × W × H) | 172 × 76 ×72 mm (6.8 × 3 × 2.8) | ||||
| Weight | 0.25 kg (0.55 lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:</=95% RH(non-condensing) | ||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:</=95% RH(non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | Supported | ||||
| Ingress Protection | Ingression protection: IP67 | ||||
