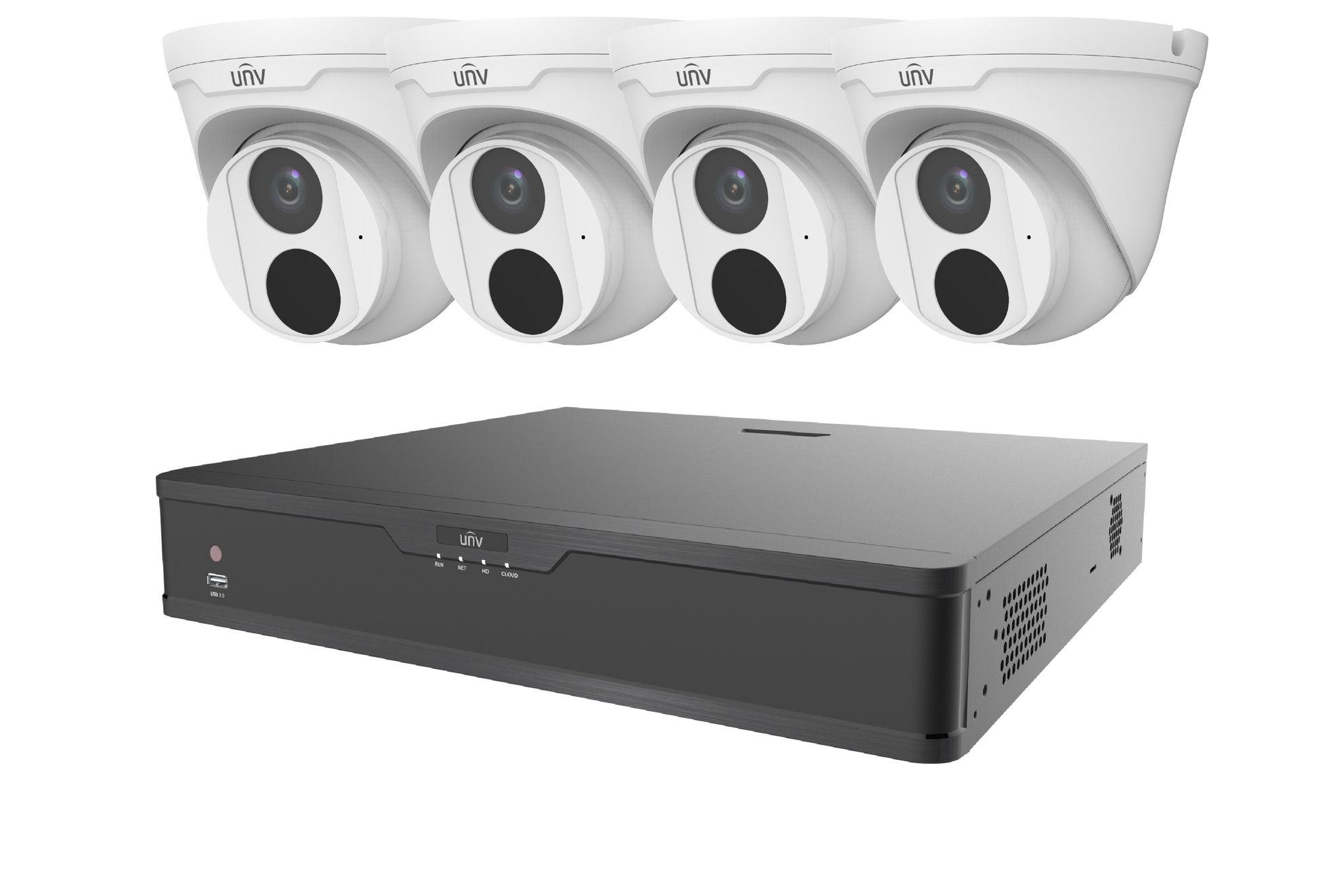

Uniview UNV IP Camera Kit, 4 Channel NVR + 4 x 4MP IP Turrets, 1TB HDD
Uniview UNV IP Camera Kit, 4 Channel NVR + 4 x 4MP IP Turrets, 1TB HDD
Model: KIT301-04LS3/4*3614LB-1TB
Regular price
$896.10
Sale price
$896.10
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
1x (NVR301-04LS3-P4) UNV 4CH 4K NVR with 4 PoE, 1x 1TB SurveillanceHDD, 4x (IPC3614LB-PF28) 4MP IP67 Turret IPC with 2.8mm lens, Optional: GX-BK-JB03, TRWM03- D-IN
Couldn't load pickup availability
NVR301-04LS3-P4
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
- Support cloud upgrade
IPC3614LB-PF28
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
| Model | NVR301-04LS3-P4 | |
| Video/Audio Input | ||
| IP Video Input | 4-ch | |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Synchronous Playback | 4-ch | |
| Corridor Mode Screen | 3/4 | |
| Decoding | ||
| Decoding format | Ultra 265/H.265/H.264 | |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | |
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | up to 6TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel:2 x USB2.0 | |
| PoE | ||
| Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface | |
| Max Power | Max 30W for single port, Max 54W in total | |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| General | ||
| Power Supply | 48V DC, Power Consumption: </=9 W (without HDD) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity </= 90% RH(non-condensing) | |
| Dimensions(WxDxH) | 260mm x240mm x 46 mm (10.2" x 9.4" x1.8") | |
| Weight ( without HDD ) | </=1.1kg (2.43lb) | |
| Model | IPC3614LB-PF28 | |
| Camera | ||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 ~ 1/100000s | |
| Adjustment angle | Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | |
| S/N | >56dB | |
| WDR | DWDR | |
| Lens | ||
| Lens Type | 2.8mm and 4.0mm @2.0, Fixed-focal | |
| Lens Mount | M12 | |
| Angle of View (H) | 97.0°, 79.0° | |
| Angle of View (V) | 52.2°, 42.3° | |
| Angle of View (O) | 107.5°, 85.1° | |
| DORI | ||
| DORI Distance | Lens (2.8mm), Detect (63.0m), Observe (25.2m), Recognize (12.6m), Identify (6.3m) Lens (4.0mm), Detect (90.0m), Observe (36.0m), Recognize (18.0m), Identify (9.0m) |
|
| Illuminator | ||
| IR Range | Up to 30m (98ft) IR range | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 code profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|
| Video Bit Rate | 128 Kbps~6144 kbps | |
| U-code | Supported | |
| OSD | Up to 4 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Motion Detection | Up to 4 areas | |
| Image | ||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | |
| Digital noise reduction | 2D/3D DNR | |
| Smart IR | Support | |
| Flip | Normal/Vertical/Horizontal/180° | |
| Dewarping | N/A | |
| HLC | Supported | |
| BLC | Supported | |
| Defog | Digital Defog | |
| Events | ||
| Behavior Detection | Cross line, intrusion(based on human body detection) Motion detection, tampering alarm |
|
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | |
| Storage | ||
| Edge Storage | Micro SD, up to 128GB | |
| Network Storage | ANR, NAS(NFS) | |
| Network | ||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | |
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |
| Client | EZStation, EZView, EZLive | |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
|
| Interface | ||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |
| Certification | ||
| EMC | FCC: FCC Part 15 | |
| Safety | CE: EN 60950-1, UL: UL60950-1, IEC 60950-1 | |
| General | ||
| Power | DC 12V+/-25%, PoE (IEEE 802.3af) | |
| Power consumption: Max 4.0W | ||
| Power Interface | Dia. 5.5mm coaxial power plug | |
| Material | Metal + Plastic | |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) | |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) | |
| Surge Protection | 4KV | |
| Reset Button | N/A | |
| Ingress Protection | Ingression protection: IP67 | |
