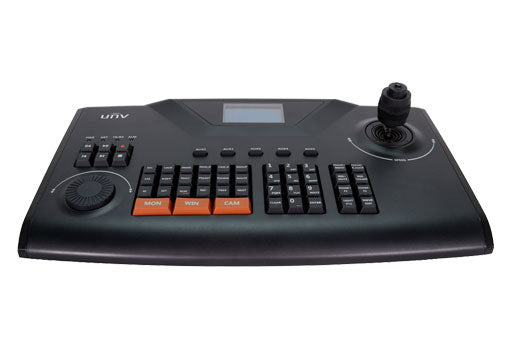

Uniview KB-1100 IP Based Joystick Keyboard Controller
Uniview KB-1100 IP Based Joystick Keyboard Controller
Model: KB-1100
Regular price
$659.75
Sale price
$659.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Controls up to 255 PTZ cameras. Supports Uniview, Pelco P&D, Panasonic, Samsung, Hikvision, and many others, IP based joystick keyboard controller for PTZ camera control on a system.
Couldn't load pickup availability
The KB-1100 is an ip based joystick keyboard PTZ controller that can control up to 255 PTZ cameras over Onvif NVR. Uniview, Pelco P&D, Panasonic, Samsung, Hikvision, and a variety of other brands are supported.
- LCD screen display
- Four-dimensional joystick control
- Based on IP network
- Support multiple user permissions
- Connectable to NVR to control NVR menu and PTZ operations
- Multiple devices can be connected
| Product model | KB-1100 |
| Joystick | four-dimensional joystick |
| Ethernet port | 1 RJ-45 10 M / 100 M adaptive Ethernet port |
| USB Interface | 1 USB2.0 interfaces |
| Serial Interface | 1 RS-232, 2 RS-485 |
| Power Supply | 12V DC |
| Consumption | 5W |
| Working Temperature | -10°C ~ + 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 47mm x 270mm x 440mm(1.9"x10.6"x17.3") |
| Weight | <1kg |
