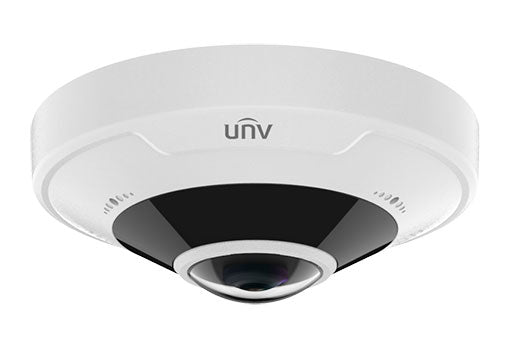

UNV 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera
UNV 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera
Model: IPC86CEB-AF18KC-I0
Regular price
$939.60
Sale price
$939.60
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4K/12MP, 4000x3000, @20fps, Ultra265, DWDR, Motion Detection, Intrusion Prevention, IR, up to 15m (49ft), Built-in Mic, Audio, Alarm, MicroSD slot, IP67, IK10, 1.8mm Lens, Fixed, DC12V
Couldn't load pickup availability
• High quality image with 12MP,1/1.7" CMOS sensor
• Max 4000*3000 resolution
• Ultra265, H.265, H.264, MJPEG
• Ultra wide angle lens, 360° panoramic image
• Embedded infrared light, 360° fill-in light, up to 15m (49ft) IR distance
• Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
• Heat map, based on deep learning algorithms, the date of moving objects is counted in real time on an intuitive color map
• Built-in microphone & speaker, two-way talk supported
• Supports 256 G Micro SD card
• IK10 vandal resistant
• IP67 protection
| IPC86CEB-AF18KC-I0 | |||||
| Camera | |||||
| Sensor | 1/1.7", 12.0 megapixel, progressive scan, CMOS | ||||
| Minimum Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR |
||||
| Day / Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| WDR | DWDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 1.8mm@F2.0 | ||||
| Field of View | 360° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 1.8 | 43.8 | 17.5 | 8.8 | 4.4 | |
| Illuminator | |||||
| IR Range | Up to 15m (49ft) IR range | ||||
| wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Compression | Ultra265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Main Stream | Fisheye View: 12MP(4000*3000)@20fps;3000*3000@20fps; 2560*2560@25fps; Panorama View: 12MP(4000*3000)@20fps;3000*2000@20/25fps; 3000*1500@20/25fp; PTZ View: 1920*1080@20/25fps; |
||||
| Sub Stream | Fisheye View:2000*1500@20fps;2000*2000@25fps | ||||
| Third Stream | Fisheye View:D1(720*576)@20/25fps;CIF352*288)@20/25fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Triple streams | ||||
| Live View Display | |||||
| Mount Type | Support table, wall, and ceiling | ||||
| Hardware Decoding | Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view: vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, , horizontal panorama view: vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
||||
| Software Decoding | Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye+ 3PTZ, fisheye+4PTZ, fisheye+8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view+3PTZ, 180° panorama view+4PTZ, 180° panorama view+8PTZ |
||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/ Flip Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | N/A | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart intrusion prevention | Cross Line detection, Intrusion detection | ||||
| Statistical Analysis | Heat map(Working with management platform) | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm ,Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Interface | |||||
| Audio I/O | Input: impedance 35kOhm; amplitude 2V [p-p] | ||||
| Output: impedance 600Ohm; amplitude 2V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Multiple Alarm linkage editable | |||||
| Built-in Mic | Two Mics | ||||
| Built-in Speaker | Support | ||||
| Serial | 1 channel RS485 interface | ||||
| Network | 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ohm; amplitude 1V [p-p] | ||||
| Certifications | |||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 12W | |||||
| Dimensions (Ø x H) | 149 x 55mm (5.9” x 2.2”) | ||||
| Weight | 524g | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH | ||||
| surge protection | 4kv | ||||
| Reset Button | Support | ||||
