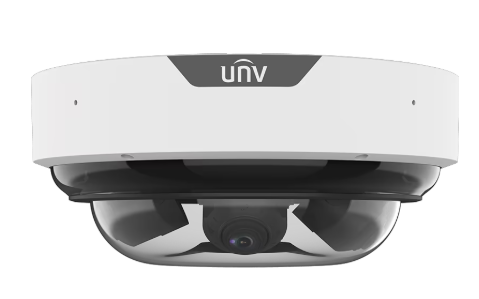

UNV 4 x 5MP LightHunter Multi-Sensor Varifocal Network Dome Camera
UNV 4 x 5MP LightHunter Multi-Sensor Varifocal Network Dome Camera
Model: IPC8645EA-ADZKM-I1
Regular price
$2,185.15
Sale price
$2,185.15
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4 channel video output, 2880*1620@30fps , Smart intrusion , Up to 130 dB Optical WDR, IP67, IK10
Couldn't load pickup availability
- One IP with four channels
- Support multiple intelligent functions, different function of each channel can be enabled at the same time to satisfy various
analysis requirement - Pan, tilt, rotation angle of each lens can be adjusted independently, suitable for more complicated scenes
- 4 channel video output, 2880*1620@30fps in the main stream of each channel, provide high definition image
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, support false alarm filtering, realize accurate detection based on specific target
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Up to 130 dB Optical WDR (Wide Dynamic Range)
- IP67 ingress & IK10 protection
- PoE++ recommended (can use PoE+ if IR lights are disabled)
| IPC8645EA-ADZKM-I1 | |
| Camera | |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 130 dB |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 65°, Rotate: 0° ~ 355° |
| S/N | >56 dB |
| Lens | |
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.2 * 4 |
| Field of View (H) | (W)110.3°~(T)31° |
| Field of View (V) | (W)57.1°~(T)17.5° |
| Field of View (D) | (W)130.2°-(T)67.4° |
| Iris Type | Fixed |
| DORI | |
| DORI Distance (Detect) | 70.9m~247.5m(232.5ft~812.0ft) |
| DORI Distance (Observe) | 28.4m~99.0m(93.0ft~324.8ft) |
| DORI Distance (Recognize) | 14.2m~49.5m(46.5ft~162.4ft) |
| DORI Distance (Identify) | 7.1m~24.8m(23.3ft~81.2ft) |
| Illuminator | |
| Illumination Distance (IR) | 50 m (164.0 ft) |
| IR On/Off Control | Auto/Manual |
| Intelligent | |
| Exception Detection | Scene Change, Defocus Detection, Object Removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support People Flow Counting and Crowd Density Monitoring |
| Events | |
| Motion Detection | Support |
| Tampering Detection | Support |
| Audio Detection | Support |
| UMD (Ultra Motion Detection) | Support |
| Image | |
| Flip | Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Defog | Digital Defog |
| Network | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate-Main Stream | Channel * 4 5MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate-Sub Stream | Channel * 4 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate-Third Stream | Channel * 4 D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate | Channel * 4 Main Stream: 4MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Frame Rate Recommendation | Channel * 4 2880*1620@30fps+1080P@30fps+D1@30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps * 4Channel |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs * 4 Channel |
| Privacy Mask | Up to 8 * 4Channel |
| Audio | |
| Audio Compression | G.711U, G.711A |
| Two-way Audio | Support |
| Sampling Rate | 8 kHz |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kOhm, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ohm, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Built-in Mic | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| Other | |
| Corridor Mode | Support |
| Certification | |
| Protection | IP67 (IEC 60529), IK10 (IEC 62262) |
| General | |
| Power | DC 24V±25%, AC 24V±25%, PoE (IEEE802.3bt) |
| Built-in DC12V Output | Support |
| Power Consumption | Max 31W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 318 x 136.6 mm ( 12.52" x 5.38")( x H) |
| Weight | 4.77Kg?10.52lb? |
| Working Environment | -30 C ~ 60 C (-22 F ~ 140 F), Humidity: 5%~95% RH |
| Storage Environment | -40 C ~ 70 C (-40 F ~ 158 F), Humidity: 5%~95% RH |
| Surge Protection | 6 KV |
