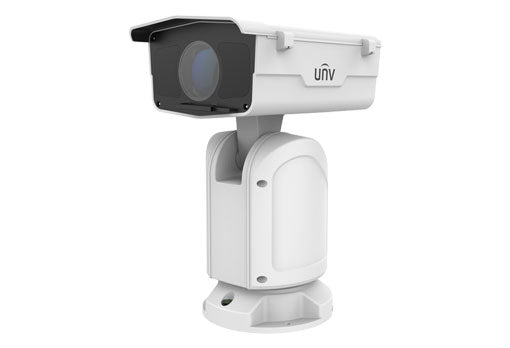

IPC7622ER-X44-VF Uniview UNV 2MP 44X Lighthunter Intelligent Network Positioning system
IPC7622ER-X44-VF Uniview UNV 2MP 44X Lighthunter Intelligent Network Positioning system
Model: IPC7622ER-X44-VF
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2MP, 44x Optical zoom, HLC, EIS(Gyroscope), smart function, Starlight, IP66, wiper, 1/2.8" CMOS, ICR ,1920×1080:60fps,Ultra 265/H.264/MJPEG, Triple streams, AC24V/DC24V/48V DC, Micro SD card slot, Alarm in/out 7/2, Audio, -40-70℃, IP66, 44x optical zoom(5~220mm), IR range: up to 300m, IR anti-reflection window
Couldn't load pickup availability
•High quality image with 2MP,1/2.8’’ CMOS sensor
•1920*1080@60fps in the main stream
•Triple streams
•44X Optical Zoom
•Support Optical defog, Self-adaptive defog
•Smart IR, up to 400m (1312ft) IR distance
•Rain-sensing auto wiper
•Power supply: DC ±48V±25%,DC 24V±15%(DC20V~DC60V), AC 24V±25%
•Alarm 7 in and 2 out, Audio 1 in and 1 out
•IP67 ingress protection
| Camera | |||||||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | ||||||||||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR | ||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||||
| WDR | 120dB | ||||||||||
| S/N | >52dB | ||||||||||
| Lens | |||||||||||
| Lens type | 5 ~ 220mm, AF automatic focusing and motorized zoom lens | ||||||||||
| Digital Zoom | 16 | ||||||||||
| Optical Zoom | 44 | ||||||||||
| Iris | Auto; F1.2 ~ F3.5 | ||||||||||
| Angle of View (H) | 60.6° ~ 1.8° | ||||||||||
| Angle of View (V) | 35.6° ~ 1.2° | ||||||||||
| Angle of View (O) | 70.2° ~ 2.6° | ||||||||||
| DORI | |||||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||||
| 5 | 77.6(254.5ft) | 31.0(101.8ft) | 15.5(50.9ft) | 7.8(25.5ft) | |||||||
| 220 | 2793.1(9163.7ft) | 1117.2(3665.5ft) | 558.6(1832.7ft) | 279.3(916.4ft) | |||||||
| Illuminator | |||||||||||
| IR Range | Up to 400m (1312 ft) IR range | ||||||||||
| Wavelength | 850nm | ||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||
| Video | |||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps | ||||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||||||
| U-code | Support | ||||||||||
| ROI | Up to 8 areas | ||||||||||
| Video Stream | Triple streams | ||||||||||
| OSD | Up to 8 OSDs | ||||||||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||||||||
| Image | |||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||||
| EIS | N/A | ||||||||||
| HLC | Support | ||||||||||
| BLC | Support | ||||||||||
| Defog | Optical Defog & Digital Defog | ||||||||||
| Events | |||||||||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm, Voltage detection; | ||||||||||
| Auto Tracking | Support | ||||||||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||||
| Audio | |||||||||||
| Audio Compression | G.711U,G.711A | ||||||||||
| Audio Bitrate | 64 Kbps | ||||||||||
| Two-way audio | Support | ||||||||||
| Suppression | Support | ||||||||||
| Sampling Rate | 8kHz | ||||||||||
| Storage | |||||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||||
| Network Storage | ANR,NAS(NFS) | ||||||||||
| Network | |||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||||
| Client | EZStation EZView EZLive | ||||||||||
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
| Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||||
| Pan & Tilt | |||||||||||
| Pan Range | 360° (endless) | ||||||||||
| Pan Speed | 0.1°/s ~ 140°/s | ||||||||||
| Preset speed: 140°/s | |||||||||||
| Tilt Range | -45° ~ 90° (auto reverse) | ||||||||||
| Tilt Speed | 0.1°/s ~ 50°/s | ||||||||||
| Preset speed: 50°/s | |||||||||||
| Number of Presets | 1024 | ||||||||||
| Patrol | Preset patrol, Route patrol, Recorded patrol | ||||||||||
| Patrol Stay Time | 15s~1800s | ||||||||||
| Preset Image Freeze | Support | ||||||||||
| Home Position | Support | ||||||||||
| Interface | |||||||||||
| Audio I/O | 1/1 | ||||||||||
| Alarm I/O | 7/2 | ||||||||||
