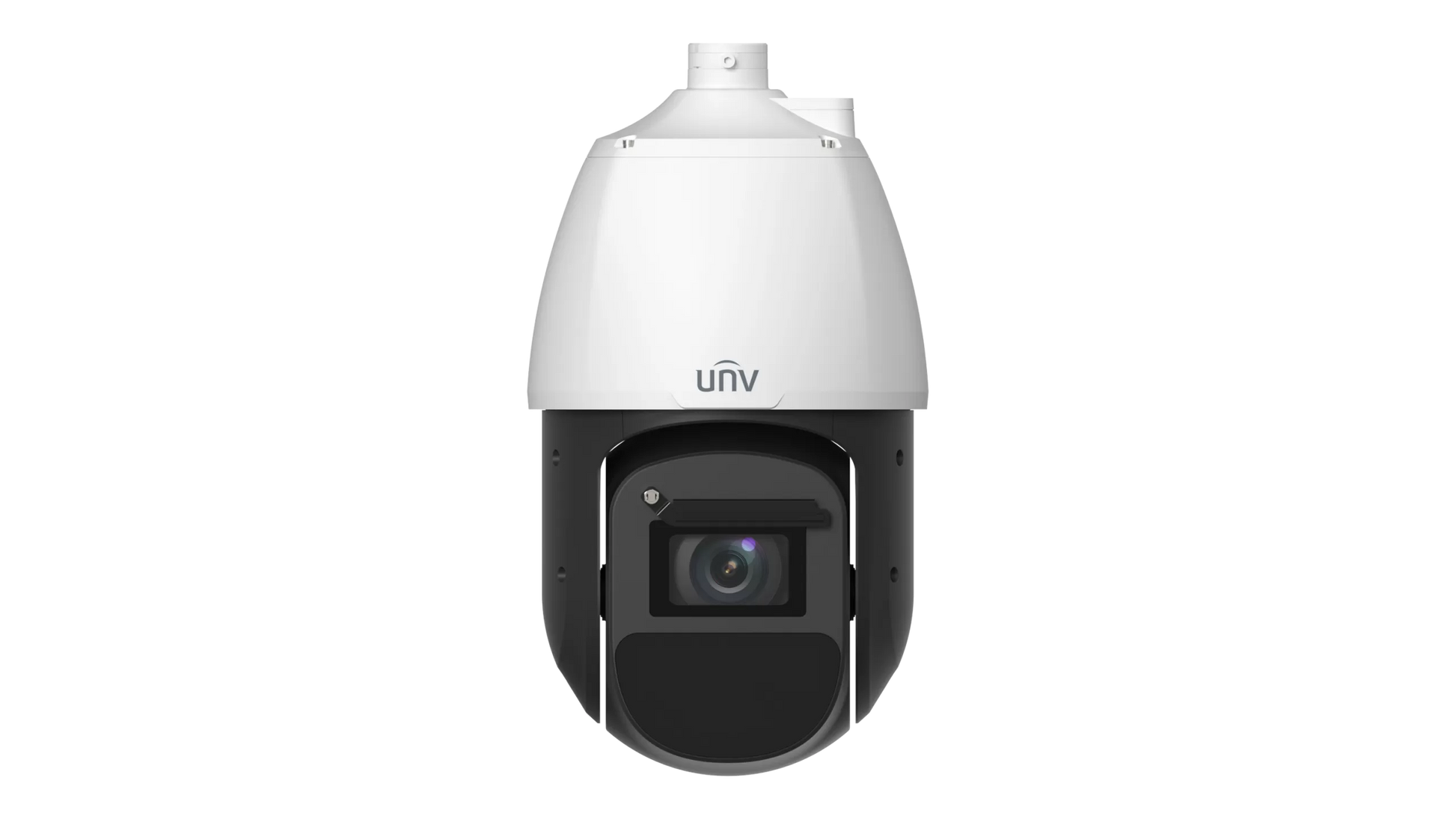

Uniview IPC6824ER-X42-W-VH2 4MP Super Startlight 42X IR Wiper Dome Network Camera
Uniview IPC6824ER-X42-W-VH2 4MP Super Startlight 42X IR Wiper Dome Network Camera
Model: IPC6824ER-X42-W-VH2
Regular price
$3,166.80
Sale price
$3,166.80
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Couldn't load pickup availability
● 2688 × 1520@60 fps in the main stream
● 42X optical zoom
● Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
● Supports front end, supports blocklist and allowlist comparison
● People counting, supports people flow counting and crowd density monitoring
● Multi target detection, supports human body, motor vehicle and non motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis
● Supports optical defog, self adaptive defog
● Wise-ISP technology ensures ultra high image quality in low illumination environment
● IR illumination: 500 m (1640 ft) distance, proportional to optical zoom of camera module
● Gyroscope stabilization for stable picture
● Supports wiper
● Power supply: DC 24 V±25%, AC 24 V±25%, PoE (IEEE802.3bt)
● Alarm I/O: 7/2, audio I/O: 1/1
● IP67 ingress protection
| Model | IPC6824ER-X42-W-VH2 |
| Camera | |
| Sensor | 1/1.8″ CMOS |
| Min. Illumination | Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 150 dB |
| S/N | > 56 dB |
| Lens | |
| Focal Length | 6 to 252 mm |
| Optical Zoom | 42X |
| Digital Zoom | 16X |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 59.47° (W) to 2.20° (T) |
| Field of View (V) | 35.62° (W) to 1.24° (T) |
| Field of View (D) | 73.14° (W) to 2.59° (T) |
| DORI | |
| DORI Distance (Detect) | 93.1 m to 4310.3 m (305.5 ft. to 14143.7 ft) |
| DORI Distance (Observe) | 37.2 m to 1564.1 m (122.1 ft. to 6116.1 ft) |
| DORI Distance (Recognize) | 18.6 m to 782.1 m (61.0 ft. to 2894.1 ft) |
| DORI Distance (Identify) | 9.3 m to 391.0 m (30.5 ft. to 1610.6 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate |
Main Stream: 4 MP (2688 × 1520), max. 60 fps
Sub Stream: 1080P (1920 × 1080), max. 60 fps Third Stream: D1 (720 × 576), max. 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| OSD | Up to 10 OSDs |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input |
| Audio | |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
| Storage | |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network | |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security | Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Intelligent | |
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | Support |
| People Counting | Support people flow counting and crowd density monitoring |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| PTZ | |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Preset Image Freeze | Support |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | Support |
| Tilt Range | -15° to 90° (Upward tilt is negative) |
| Pan Speed | 0.1°/s to 300°/s |
| Pan Range | 0° to 360° (endless) |
| Tilt Speed | 0.1°/s to 180°/s |
| Number of Presets | 1024 |
| Image | |
| BLC | Support |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip horizontal, Flip vertical, 180° |
| HLC | Support |
| Defog | Digital defog, Optical defog |
| Image Stabilization | EIS (Gyroscope) |
| Interface | |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 7/2 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Serial Port | 1 × RS485 |
| Video Output | 1 BNC |
| Illuminator | |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 500 m (1640.4 ft) |
| Certification | |
| Safety | CE LVD (EN IEC 62368-1+ A11) |
| EMC | CE EMC (EN 55032+ A11; EN IEC 61000-3-2; EN 61000-3-3+ A; EN 55035+ A11) |
| Environment | CE ROHS (2011/65/EU; (EU)2015/863) |
| Protection |
IP67 (IEC 60529+ AMD1+ AMD2)
IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
| General | |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE802.3bt) |
| Power Consumption | ≤ 65.5W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø227 mm × 414 mm (Ø8.94″ × 16.30″) (Ø × H) |
| Weight | 6.9 kg |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Heater | Support |
| Compliance | |
| NDAA Compliant | Support |
