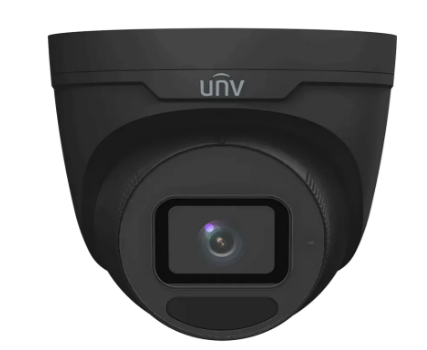

IPC3638SS-ADF28K-I1-BK | Uniview 8MP Fixed IR Turret Network Camera
IPC3638SS-ADF28K-I1-BK | Uniview 8MP Fixed IR Turret Network Camera
Model: IPC3638SS-ADF28K-I1-BK
Available in stock
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
8MP, 3840X2160, IR up to 40m, Ultra265, H.265, AI Human & Vehicle Recording, Reduce False Alarm, IP67, 3-Axis, ONVIF, 2.8mm Lens, 0.01 Lux, Optional Junction Box: TR-JB03-G-IN, Optional Wall Mount: TR-WM03-D-IN, Optional Pole Mount: TR-UP06-IN (needs: TR-JB03-H-IN)
Couldn't load pickup availability
- High quality image with 8MP, 1/2.8"CMOS sensor
- 8MP (3840*2160)@ 30/25(default)fps; 5MP (3072*1728)@ 30/25fps; 4MP (2560*1440) @30/25fps; 2MP (1920*1080)
- @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle Intelligent
- Intelligent People Flow Counting and Crowd Density Monitoring
- Smart intrusion prevention with Color retrieval
- Auto Scene Match (ASM)?Only WDR?
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 130dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out, Built-in Mic
- Smart IR, up to 40m (131ft) IR distance
- Supports 512 G Micro SD card
- IP67 protection
|
Camera |
Description |
|
Max Resolution |
8MP |
|
Sensor |
1/2.8" CMOS |
|
Min. Illumination |
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
Adjustment Angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
|
S/N |
>56dB |
|
WDR |
130dB |
|
Lens |
Description |
|
Focal Length |
2.8 mm |
|
Iris Type |
Fixed |
|
Iris |
F1.6 |
|
Field of View (H) |
97.49° |
|
Field of View (V) |
52.31° |
|
Field of View (D) |
102.29° |
|
Lens Type |
Fixed |
|
DORI |
Description |
|
DORI Distance(Lens) |
2.8mm |
|
DORI Distance(Detect) |
86.9m(285.1ft) |
|
DORI Distance(Observe) |
34.8m(114.0ft) |
|
Intelligent |
Description |
|
Smart Intrusion Prevention |
Support False Alarm Filtering: Cross Line Detection, Intrusion Detection, Enter Area Detection, Leave Area Detection |
|
Recognition |
|
|
Statistical Analysis |
People Counting; support people flow counting and crowd density monitoring |
|
Attribute Collection |
SIP with color retrieval |
|
Events |
Description |
|
Basic Detection |
Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection |
|
General Function |
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication; Alarm Input; Alarm Output |
|
Audio |
Description |
|
Audio Compression |
G.711U; G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way Audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
8 KHz |
|
Storage |
Description |
|
Edge Storage |
Micro SD, up to 512 GB |
|
Network Storage |
ANR; NAS (NFS) |
|
Network |
Description |
|
Protocols |
IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK |
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
Security |
Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
|
Client |
UNV-Link; UNV-Link Pro; EZStation |
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|
Interface |
Description |
|
DORI Distance(Recognize) |
17.4m(57.0ft) |
|
DORI Distance(Identify) |
8.7m(28.5ft) |
|
Illuminator |
Description |
|
Supplemental Light |
IR |
|
Illumination Distance(IR) |
40 m (131.2 ft) |
|
IR On/Off Control |
Auto/Manual |
|
Wavelength |
850 nm |
|
Video |
Description |
|
Video Compression |
Ultra 265; H.265; H.264; MJPEG |
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps;4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
|
Video Bit Rate |
128 Kbps ~ 16 Mbps |
|
U-code |
Support |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
ROI |
Support |
|
Video Stream |
Triple Streams |
|
Image |
Description |
|
Auto Scene Match (ASM) |
Support (Only WDR) |
|
White Balance |
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
|
Digital Noise Reduction |
2D/3D DNR |
|
Smart IR |
Support |
|
Flip |
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
|
Dewarping |
N/A |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Digital Defog |
|
Audio I/O |
1 Input: impedance 35k Ohm; amplitude 2V [p-p]; 1 Output: impedance 600 Ohm; amplitude 2V [p-p] |
|
Alarm I/O |
1/1 |
|
Serial Port |
N/A |
|
Built-in Mic |
Support |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 x RJ45 10M/100M Base-TX Ethernet |
|
Video Output |
N/A |
|
Certification |
Description |
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
|
Safety |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
|
Protection |
IP67 (IEC 60529) |
|
General |
Description |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0W |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
|
Dimensions |
?129 x 110mm (Ø5.1 x 4.3) |
|
Weight |
0.67kg (1.47lb) |
|
Material |
Metal |
|
Working Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: </=95% RH (non-condensing) |
|
Storage Environment |
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: </=95% RH (non-condensing) |
|
Surge Protection |
4KV |
|
Reset Button |
Support |
|
Web Client Language |
20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
