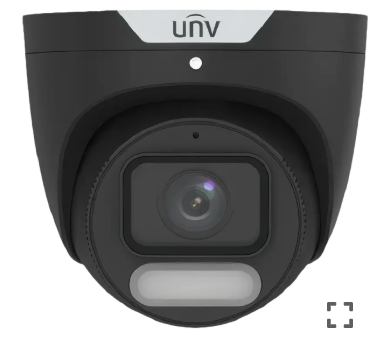

Uniview IPC3624SR-ADF28KM-WP-BK 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera
Uniview IPC3624SR-ADF28KM-WP-BK 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera
Model: IPC3624SR-ADF28KM-WP-BK
Regular price
$214.60
Sale price
$214.60
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4MP, 2560X1440, @25fps, Ultra265, 120dB WDR, Motion Detection, Intrusion Prevention, Human/Vehicle, IR, up to 30m (98ft), Built-in Mic, MicroSD slot, IP67, 2.8mm Lens, Fixed, DC12V， optional:TR-JB03-I-IN, TR-WM03-D-IN
Couldn't load pickup availability
- High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Colorhunter with Wise-ISP technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- White Light, up to 30m white light distance
- Supports 256 GB Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
| IPC3624LE-ADF28K-WP | IPC3624LE-ADF40K-WP | ||||||||
| Camera | |||||||||
| Sensor | 1/1.8", 4.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.0003lux (F1.0, AGC ON) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° | ||||||
| WDR | 120dB | ||||||||
| S/N | >52dB | ||||||||
| Lens | |||||||||
| Lens | 2.8mm@F1.0 | 4.0mm@F1.0 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 110.4° | 89.4° | |||||||
| Field of View (V) | 60.5° | 48.2° | |||||||
| Field of View (D) | 115.2° | 94.7° | |||||||
| DORI | |||||||||
| DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 2.8 | 43.4(142.5ft) | 17.4(57.0ft) | 8.7(28.5ft) | 4.3(14.3ft) | |||||
| 4.0 | 62.1(203.6ft) | 24.8(81.5ft) | 12.4(40.7ft) | 6.2(20.4ft) | |||||
| Illuminator | |||||||||
| Warm Light Range | Up to 30m (98ft) | ||||||||
| Light On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P
(1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||
| Video Bit Rate | 128 Kbps~6144Kbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video Stream | Dual streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital noise reduction | 2D/3D DNR | ||||||||
| Smart Illumination | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
| Dewarping | N/A | ||||||||
| HLC | Support | ||||||||
| BLC | Support | ||||||||
| Defog | Digital Defog | ||||||||
| Events | |||||||||
| Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | ||||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way audio | N/A | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 256GB | ||||||||
| Network Storage | ANR, NAS(NF | ||||||||
