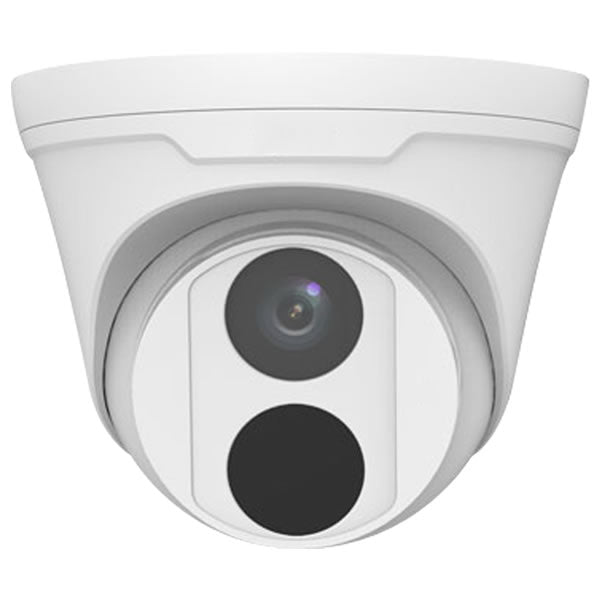

Uniview White Label 4MP IR Fixed Outdoor IP Turret Camera
Uniview White Label 4MP IR Fixed Outdoor IP Turret Camera
Model: IPC3614LR3-PF28-NB
Regular price
$147.90
Sale price
$147.90
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4MP, 2592x1520, @20fps, Ultra265, DWDR, IR up to 30m (98ft), IP67, 2.8mm Lens, Fixed, PoE, Optional Junction Box: TR-JB03-I-IN, Optional Wall Mount: TR-WM03-D-IN
Couldn't load pickup availability
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 3D DNR (Digital Noise Reduction)
- Ultra 265,H.265,H.264,MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of +/-25%
- IP67
- 3-Axis
| Camera | |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | |
| DORI Distance | Detect (63m), Observe (25.2m), Recognize (12.6m), Identify (6.3m) |
| Angle of view (H) | 104.4° |
| Angle of View (V) | 54.4° |
| Angle of View (O) | 135.7° |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination | Colour: 0.03Lux (F2.0, AGC ON) 0Lux with IR |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile |
| Frame Rate | Main Stream: 4MP (2592*1520), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps; Third Stream: D1 (720*576), Max 20fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | NA |
| HLC | Supported |
| BLC | Supported |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration | ONVIF (Profile S, Profile T),API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Certifications | |
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| General | |
| Power | DC 12V+/-25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4W | |
| Dimensions (Ø x H) | Dia.118 x 96mm (Dia.4.6" x 3.8") |
| Net Weight | 0.35kg (0.77lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
