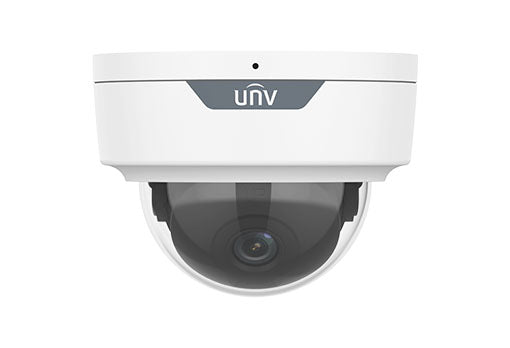

UNV 4MP HD Vandal-resistant IR Fixed Dome Network Camera
UNV 4MP HD Vandal-resistant IR Fixed Dome Network Camera
Model: IPC324SR-ADF40KM-H
Regular price
$179.80
Sale price
$179.80
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4MP (2688*1520)@ 30/20fps, Ultra 265, H.265, H.264, MJPEG, 120dB true WDR , Built‑in Mic, IR, up to 30m (98ft) IR distance, Supports 512 G Micro SD card, IK10 , IP67
Couldn't load pickup availability
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 30/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built?in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 512 G Micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
- 3?Axis
| Camera | Description | ||||||||||||
| Max Resolution | 4MP | ||||||||||||
| Sensor | 1/3.0" CMOS | ||||||||||||
| Min. Illumination | Colour: 0.003 lux ( F1.6, AGC ON) 0 Lux with IR on | ||||||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||||||
| Adjustment Angle | Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360° | ||||||||||||
| S/N | >52dB | ||||||||||||
| WDR | 120dB | ||||||||||||
| Lens | Description | ||||||||||||
| Focal Length | IPC324SR-ADF28KM-H:2.8 mm IPC324SR-ADF40KM-H:4.0 mm | ||||||||||||
| Iris Type | Fixed | ||||||||||||
| Iris | F1.6 | ||||||||||||
| Field of View (H) | IPC324SR-ADF28KM-H:97.0° IPC324SR-ADF40KM-H:79.0° | ||||||||||||
| Field of View (V) | IPC324SR-ADF28KM-H:52.2° IPC324SR-ADF40KM-H:42.3° | ||||||||||||
| Field of View (D) | IPC324SR-ADF28KM-H:107.5° IPC324SR-ADF40KM-H:85.1° | ||||||||||||
| DORI | Description | ||||||||||||
| DORI Distance(Lens) | IPC324SR-ADF28KM-H:2.8mm IPC324SR-ADF40KM-H:4.0mm | ||||||||||||
| DORI Distance(Detect) | IPC324SR-ADF28KM-H:63.0m(206.7t) IPC324SR-ADF40KM-H:90.0m(295.3ft) | ||||||||||||
| DORI Distance(Observe) | IPC324SR-ADF28KM-H:25.2m(82.7ft) IPC324SR-ADF40KM-H:36.0m(118.1ft) | ||||||||||||
| DORI Distance(Recognize) | IPC324SR-ADF28KM-H:12.6m(41.3ft) IPC324SR-ADF40KM-H:18.0m(59.1ft) | ||||||||||||
| DORI Distance(Identify) | IPC324SR-ADF28KM-H:6.3m(20.7ft) IPC324SR-ADF40KM-H:9.0m(29.5ft) | ||||||||||||
| Illuminator | Description | ||||||||||||
| Supplemental Light | IR | ||||||||||||
| Illumination Distance(IR) | 30 m (98.4 ft) | ||||||||||||
| Wavelength | 850 nm | ||||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||||
| Video | Description | ||||||||||||
| Video Compression | Ultra 265; H.265; H.264; MJPEG | ||||||||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | ||||||||||||
| Video Bit Rate | 128 Kbps ~ 6144 Kbps | ||||||||||||
| U-code | Support | ||||||||||||
| OSD | Up to 4 OSDs | ||||||||||||
| Privacy Mask | Up to 4 areas | ||||||||||||
| ROI | Up to 8 areas | ||||||||||||
| Video Stream | Dual Streams | ||||||||||||
| Image | Description | ||||||||||||
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 | ||||||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||||||
| Smart IR | Support | ||||||||||||
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise | ||||||||||||
| Dewarping | N/A | ||||||||||||
| HLC | Support | ||||||||||||
| BLC | Support | ||||||||||||
| Defog | Digital Defog | ||||||||||||
| Events | Description | ||||||||||||
| Basic Detection | Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection | ||||||||||||
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication | ||||||||||||
| Audio | Description | ||||||||||||
| Audio Compression | G.711U; G.711A | ||||||||||||
| Audio Bitrate | 64 Kbps | ||||||||||||
| Two-way Audio | N/A | ||||||||||||
| Suppression | Support | ||||||||||||
| Sampling Rate | 8KHZ | ||||||||||||
| Storage | Description | ||||||||||||
| Edge Storage | Micro SD, up to 512 GB | ||||||||||||
| Network Storage | ANR; NAS (NFS) | ||||||||||||
| Network | Description | ||||||||||||
| Protocols | IPv4
