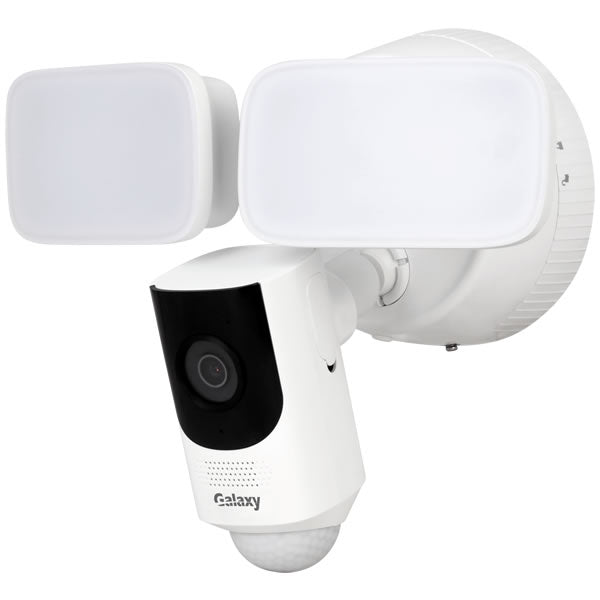

Galaxy Hunter 4MP WiFi Floodlight Camera
Galaxy Hunter 4MP WiFi Floodlight Camera
Model: IPC-L46N-CAN
Regular price
$514.75
Sale price
$514.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4MP, 2560x1440@30fps, Smart H.265+, DWDR, 0.005Lux@F1.6, IR up to 10m (33ft), Floodlight up to 30m(98ft), PIR, Day & Night, SMD, Built-in Mic & Speaker, Alarm & Siren, MicroSD Card slot, IP65, 2.8mm Fixed Lens, AC100~240V
Couldn't load pickup availability
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- 4MP (2560 x 1440) at 30 fps, 2.8 mm Fixed Lens
- 2.4 or 5 GHz Wifi Options, IEEE802.11a/b/g/n/ac
- Smart H.265+ and Smart H.264+ Dual Codecs
- Maximum Resolution of 4MP at 30 fps
- Active Alarm with Integrated 110 dB Siren and Floodlight
- Built-in Microphone and Speaker
- IP65 Ingress Protection
| Camera | |
| Image Sensor | 1/3-in. 4MP CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| RAM/ROM | 512 MB/128 MB |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | Color (30 IRE): 0.005 Lux at F1.6 B/W (30 IRE): 0.0005 Lux at F1.6 IR (Illuminator On): 0 lux |
| Illuminators | One (1) IR LED Two (2) Floodlights |
| Illuminator On/Off Control | Auto, Manual |
| Illumination Distance | IR: 10 m (32.81 ft) Floodlight: 30 m (98.43 ft) |
| Floodlight Brightness | 1500 to 2400 lm |
| Floodlight Color Temperature | Warm: 3000K±200K Cool: 6000K±300K |
| Floodlight Modes | Motion Activation Manual Schedule PIR Activation |
| Pan/Tilt/ Rotation Range | Camera Pan: 85° to 85°, Tilt: 90° to 45°, Rotation: 0° to 360°; Floodlight Tilt: 90° to 90°, Rotation: 145° to 145° |
| PIR Sensor Distance1 | 10.0 m (32.81 ft) |
| PIR Detection Range | 270° |
| Lens | |
| Lens Type | Fixed |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal 98°, Vertical 55°, Diagonal 115° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.28 ft) |
| DORI2 Distance | Detect 61.2 m (200.79 ft), Observe 24.5 m (80.38 ft), Recognize 12.2 m (40.03 ft), Identify 6.1 m (20.01 ft) |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG |
| Streaming Capability | Three (3) Streams |
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Frame Rate | Main Stream: 2560 × 1440 at 30 fps, Sub Stream 1: 704 × 480 at 30 fps, Sub Stream 2: 640 × 480 at 30 fps |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 32 kbps to 8192 kbps H265: 32 kbps to 8192 kbps |
| Day/Night | Auto, Color, B/W |
| Backlight Compensation | BLC, HLC, DWDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Image Rotation | 0°, 90°, 180°, 270° |
| Image Mirroring | Supported |
| Noise Reduction | 3DNR |
| Motion Detection | Off/On (4 Areas, Rectangular) |
| Region of Interest (RoI) | 4 Areas |
| Privacy Masking | 4 Areas |
| Advanced Features | Smart Illumination |
| Audio | |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Compression | G.711a, G.711Mu, G.726, PCM |
| Network | |
| WiFi | IEEE802.11a/b/g/n/ac 2.42.4835 GHz and 5.18 5.85 GHz |
| Protocol | IPV4, IPV6, ARP and Ping, TCP, UDP, HTTP, RTSP, HTTPS, DDNS, Email, SNMP, Multicast, Auto Registration, Wireless Qos, Wi-Fi Setting, Hotspot Scanning, 802.1x, UPnP Status, Bonjour, UPnP, Device Discovery |
| Interoperability | ONVIF, CGI, P2P, RTMP, SDK, API |
| Maximum User Access | 6 Users (Total Bandwidth: 36 Mbps) |
| Edge Storage | FTP, SFTP, MicroSD Card (Maximum 256 GB), NAS |
| Web Viewer | Microsoft Edge, Chrome, Firefox |
| Management Software | DMSS |
| Mobile Operating System | Android, iOS |
| Cybersecurity | Video Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating/ Importing X.509 certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Alarm | |
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Security Exception, Motion Detection, Video Tampering, Sence Changing, SMD (Human, Animal, Vehicle), Audio Detection, Intensity Change |
| Electrical | |
| Power Supply | 100 to 240 VAC |
| Power Consumption | Basic: 5.2 W (100240 VAC) Maximum (Illuminator+IPC): 48.3 W (100240 VAC) |
| Environmental | |
| Operating Temperature | 20 °C to +50 °C (4 °F to +122 °F) |
| Operating Humidity | ? 95% |
| Storage Temperature | 20 °C to +50 °C (4 °F to +122 °F) |
| Protection | IP65 |
| Structure | |
| Casing | Metal, Plastic |
| Product Dimensions (L x W x H) | 270.7 mm × 217.2 mm × 195.6 mm (10.66 in. × 8.55 in. × 7.70 in.) |
| Net Weight | 1.40 kg (3.09 lb) |
| Gross Weight | 1.88 kg (4.14 lb) |
| Certifications | |
| Safety | EN62368-1 |
| Electromagnetic Compatability (EMC) | Electromagnetic Compatibility Directive 2014/30/EU Radio Equipment Directive 2014/53/EU 47 CFR FCC Part 15, Subpart B |
