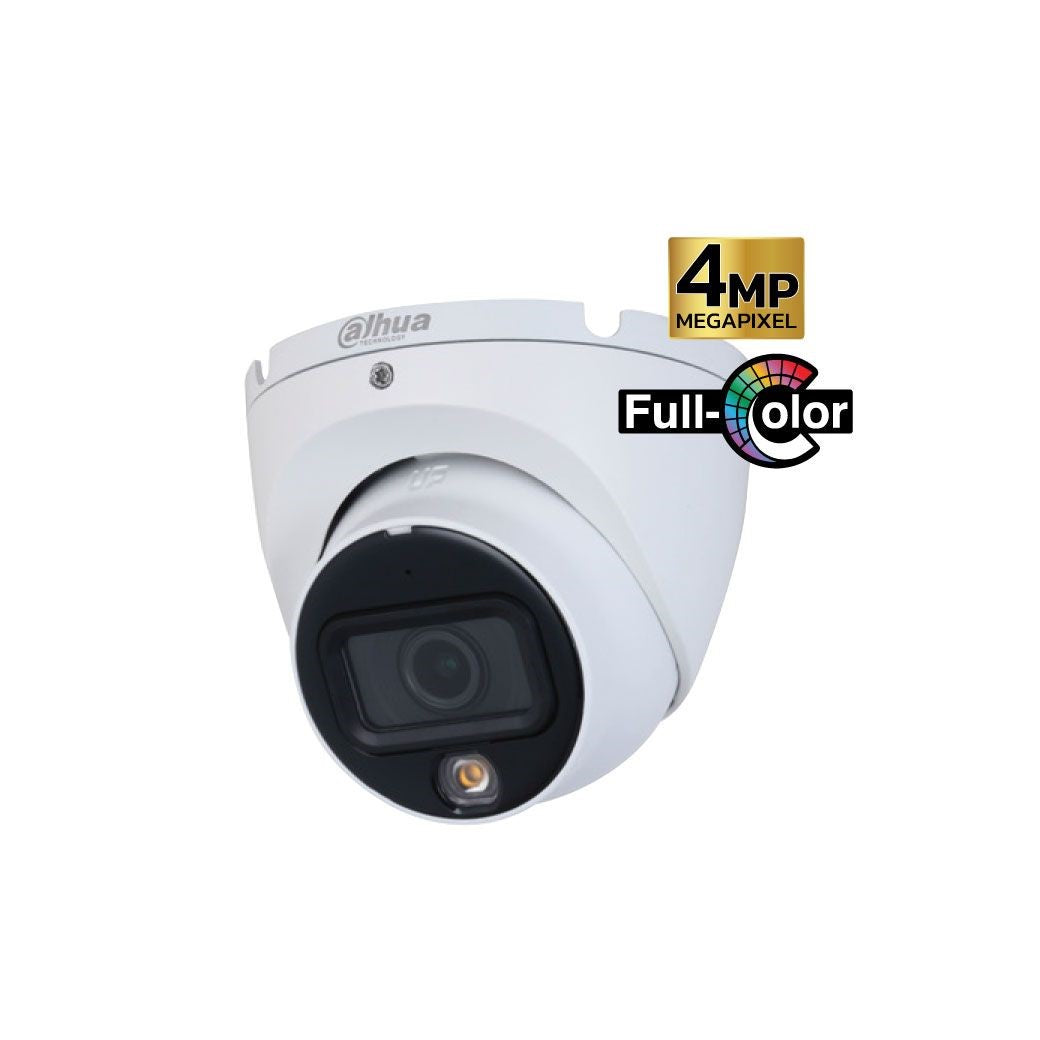

Galaxy 4MP AI IR Fixed IP Turret Camera
Galaxy 4MP AI IR Fixed IP Turret Camera
Model: IPC-HDW1439T-A-LED-S4
Regular price
$143.55
Sale price
$143.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
4MP, 2560x1440, @30fps, H.265+, 120dB WDR, Motion Detection, IR, up to 30m (98ft), Built-in Mic, Audio, Alarm, IP67, 2.8,3.6 mm Lens, Fixed, DC12V
Couldn't load pickup availability
- 4-MP 1/3" CMOS image sensor, low luminance, and high definitionimage.
- Outputs max. 4 MP (2560 × 1440)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light, and the max. illumination distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- bandwidth and storage environments.
- Illumination overexposure remover (face priority), rotation mode, WDR,
- 3D NR, HLC, BLC, digital watermarking, applicable to various monitoringscenes.
- Abnormality detection: Motion detection, video tampering, audiodetection, network disconnection, IP conflict, and illegal access.
- Built in MIC.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection
| Technical Specification | |
|---|---|
| Day/Night | Color/B/W |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 128 MB |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Electronic Shutter Speed | Auto/Manual 1/3 s1/100000 s |
| Motion Detection | OFF/ON (4 areas rectangular) |
| Min. Illumination | 0.004 lux@F1.0 |
| Region of Interest (RoI) | Yes (4 areas) |
| S/N Ratio | >56 dB |
| Smart Illumination | Yes |
| Illumination Distance | 30 m (98.43 ft) (warm light) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2560 × 1440 resolution and lower) |
| Illuminator On/Off Control | Auto; Manual |
| Mirror | Yes |
| Illuminator Number | 1 (warm light) |
| Privacy Masking | 4 areas |
| Pan/Tilt/Rotation Range | Pan: 0°360° Tilt: 0°78° Rotation: 0°360° |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 97°; V: 54°; D: 115° 3.6 mm: H: 80°; V: 45°; D: 94° |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | FTP |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440@(125/30 fps) sub stream: 704 × 576@(125 fps)/704 × 480@(130 fps) |
| Stream Capability | 2 streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps6144 kbps; H.265: 12 kbps6144 kbps |
| Browser | IE Chrome Firefox |
| Management Software | DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | |
| Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; Generation and importing of X.509 certification | |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15 Subpart B |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2 W (12 VDC); 3.1 W (PoE) Max. (WDR+H.265+ max. Illumination): 4 W (12 VDC); 5.4 W (PoE) |
| Environment | |
| Operating Temperature | 40 °C to +60 °C (40 °F to +140 °F) |
| Operating Humidity | ?95% |
| Storage Temperature | 40 °C to +60 °C (40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 85.6 mm × ?94.0 mm (3.37"× ?3.70") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.46 kg (1.01 lb) |
| Accessories | |
| Optional | PFA13A-E Junction Box PFB205W-E Wall Mount Bracket PFA152-E Pole Mount Bracket PFA106 Mount Adapter PFB220C Junction Box PFM321D 12 VDC 1 A Power Adapter PFM900-E Integrated Mount Tester |
