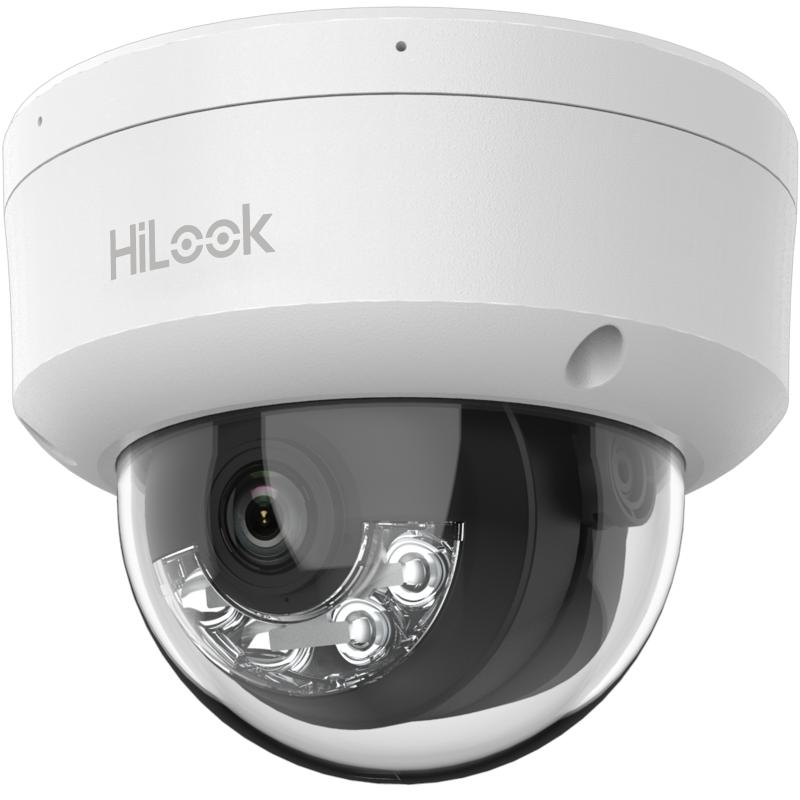

HiLook 4MP IR Fixed IP Dome Camera
HiLook 4MP IR Fixed IP Dome Camera
Model: IPC-D140HA-LU(2.8mm)
Available in stock
Send a copy to email:
Open here
4MP, 2560x1440, @20fps, H.265+, 120dB WDR, Motion Detection, Human/Vehicle, IR, up to 30m (98ft), Built-in Mic, IP67, IK08, 2.8mm Lens, Fixed, PoE/DC12V
Couldn't load pickup availability
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Dual-Light: advanced technology with long range
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal resistant (IK08)
- Efficient H.265+ compression technology
|
Camera |
|
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Max. Resolution |
2560 × 1440 |
|
Shutter Time |
1/3 s to 1/100,000 s |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
|
Focal Length & FOV |
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93° |
|
Lens Mount |
M12 |
|
Iris Type |
Fixed |
|
Aperture |
F1.6 |
|
DORI |
|
|
DORI |
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m |
|
Illuminator |
|
|
Supplement Light Type |
IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Smart Supplement Light |
Yes |
|
IR Wavelength |
850 nm |
|
Video |
|
|
Main Stream |
50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile, Main Profile, High Profile |
|
H.265 Type |
Main Profile |
|
Bit Rate Control |
CBR, VBR |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Audio |
|
|
Audio Type |
Mono sound |
|
Environment Noise Filtering |
Yes |
|
Audio Sampling Rate |
8 kHz/16 kHz |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Bit Rate |
64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
|
Network |
|
|
Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S, Profile T), ISAPI, SDK |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
User/Host |
Up to 32 users 3 user levels: administrator, operator, and user |
|
Client |
iVMS-4200, HiLookVision |
|
Web Browser |
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
|
Image |
|
|
Wide Dynamic Range (WDR) |
120 dB |
|
SNR |
>/= 52 dB |
|
Day/Night Switch |
Day, Night, Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
Interface |
|
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Built-in Microphone |
Yes |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception |
|
Linkage |
Upload to FTP, send email, notify surveillance center, trigger capture |
|
General |
|
|
Power |
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
|
Material |
Metal & Plastic |
|
Dimension |
Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8") |
|
Package Dimension |
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
|
Weight |
Approx. 550 g (1.2 lb.) |
|
With Package Weight |
Approx. 800 g (1.8 lb.) |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Language |
English, Ukrainian |
|
General Function |
Heartbeat, anti-banding, mirror, password protection, password reset via email |
|
Approval |
|
|
EMC |
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
|
Safety |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|
Environment |
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|
Protection |
IP67: IEC 60529-2013, IK08: IEC 62262:2002 |
