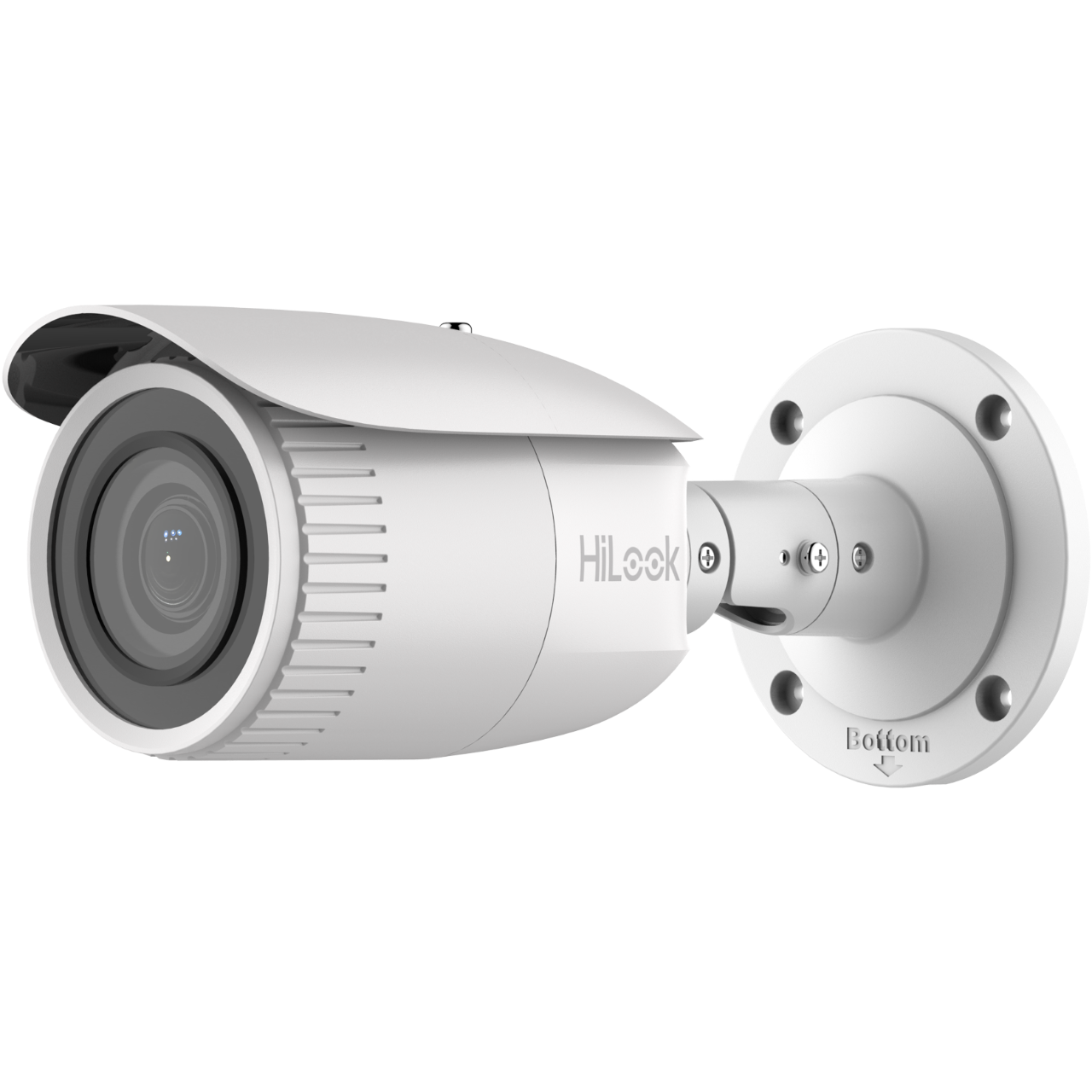

HiLook 4 MP Varifocal Bullet Network Camera
HiLook 4 MP Varifocal Bullet Network Camera
Model: IPC-B640H-Z
Available in stock
Send a copy to email:
Open here
HiLook 4 MP Varifocal Bullet Network Camera, 2.8-12mm motorized / Optional Junction Box: DS-1260ZJ
Couldn't load pickup availability
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67)
- Motorized varifocal lens for easy installation and monitoring
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
- Lens
- Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.6
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 50 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
- General
- Power
12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
- DimensionØ105 mm × 244.4 mm (Ø4.1" × 9.6")
- Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
- Approx. 1035 g (2.3 lb.)
- With Package WeightApprox. 1550 g (3.4 lb.)
- Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
- Safety<span class="tech-specs-items-description__title-details" style="display: inline-block; color: rgb(0, 0, 0); width: 594.
