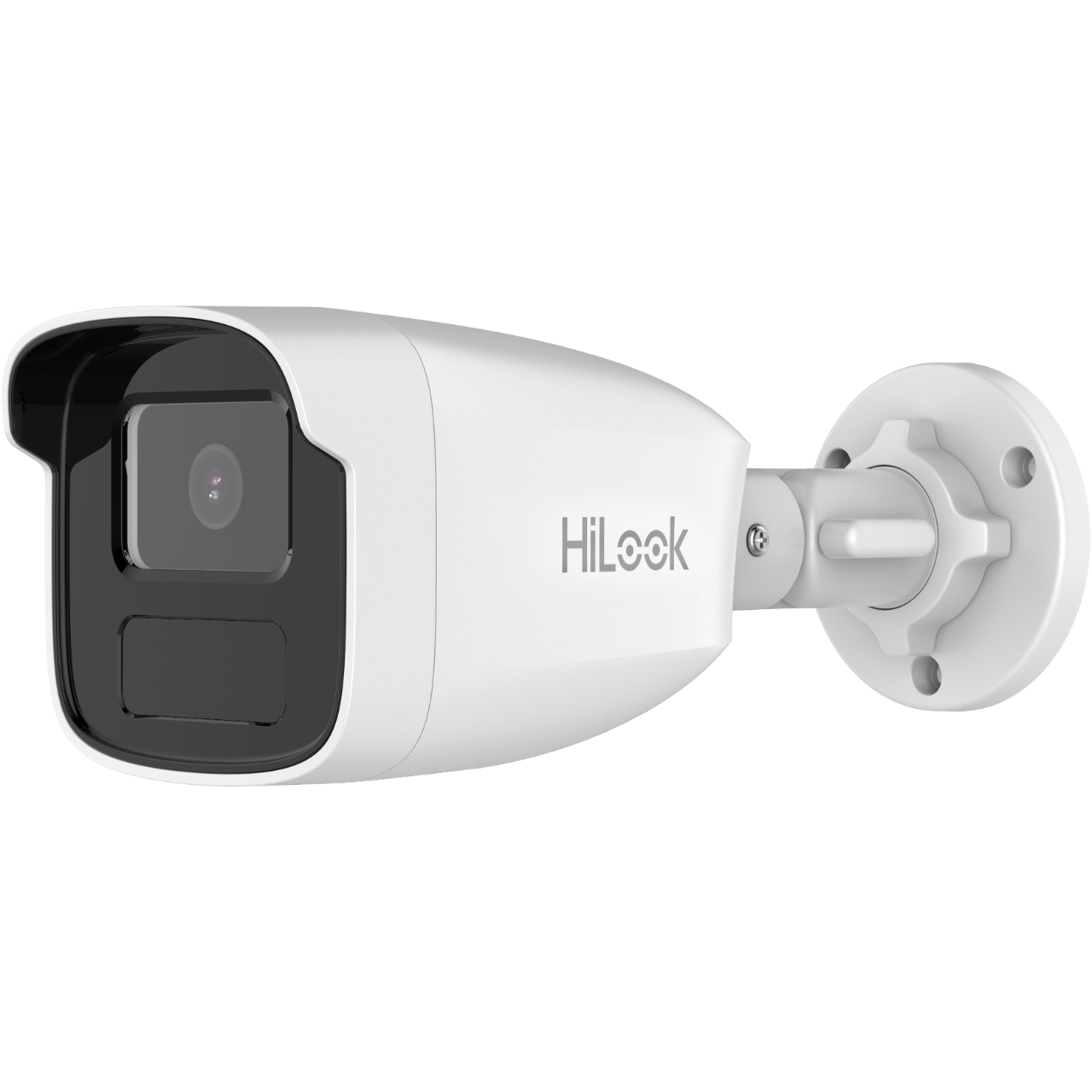

HiLook 4K Fixed Bullet Network Camera

Name: HiLook 4K Fixed Bullet Network Camera
Brand: My Store
Price: 184.15 CAD
Availability: InStock

Model: IPC-B480H(4mm)

$184.15

Available in stock

🖨️ Print as PDF

4K/8MP, 3840x2160, @12.5fps, H.265, 120dB WDR, Motion Detection, IR, up to 50m (164ft), IP67, 4mm Lens, Fixed, DC12V

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. Illumination
4 mm: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
6 mm: Color: 0.01 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 4 and 6 mm optional
Focal Length & FOV
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
Lens MountM12
Iris TypeFixed
Aperture
4 mm, F2.0
6 mm, F1.6

DORI
DORI
4 mm, D: 106 m, O: 42 m, R: 21 m, I: 11 m
6 mm, D: 169 m, O: 67 m, R: 34 m, I: 17 m

Video
Main Stream
50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Region Of Interest (ROI)1 fixed region for main stream

Network
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S), ISAPI, SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1x, SMTP
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
ClientiVMS-4200, HiLookVision
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
SNR? 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsMirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Privacy Mask4 regions of privacy mask

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 7.5 W
MaterialFront cover: metal, body: plastic, bracket: metal
Dimension83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Approx. 375 g (0.87 lb.)
With Package WeightApprox. 599 g (1.29 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
