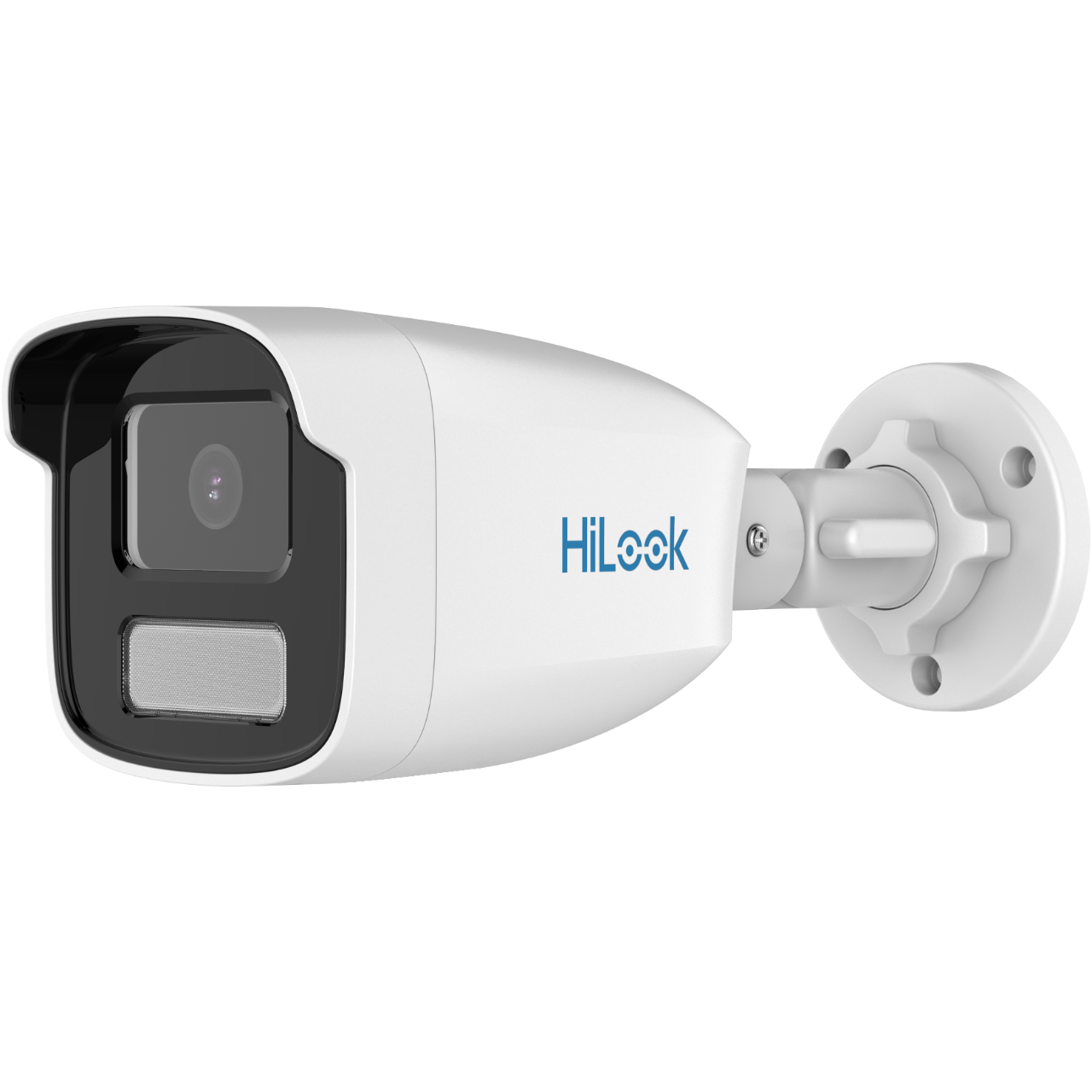

HiLook 4 MP ColorVu Fixed Bullet Network Camera
HiLook 4 MP ColorVu Fixed Bullet Network Camera
Model: IPC-B449H(4mm)
Available in stock
Send a copy to email:
Open here
HiLook 4 MP ColorVu Fixed Bullet Network Camera, 4mm lens / Optional Junction Box: DS-1280ZJ-XS
Couldn't load pickup availability
- High quality imaging with 4 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colorful imaging
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter Speed1/3 s to 1/100, 000 s
- Day & Night24 Colorful imaging
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°
4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
- Illuminator
- Supplement Light TypeWhite light
- Supplement Light RangeUp to 50 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: .265+/.264+/H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email, trigger capture
- General
- Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Camera MaterialFront cover: metal, body: plastic, bracket: metal
- Camera Dimension83.7 mm × 80.7 mm × 206.6 mm (3.3" × 3.2" × 8.1")
- Package Dimension260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
- Camera WeightApprox. 410 g (0.9 lb.)
- With Package WeightApprox. 644 g (1.4 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMC
FCC-SDoC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISP
