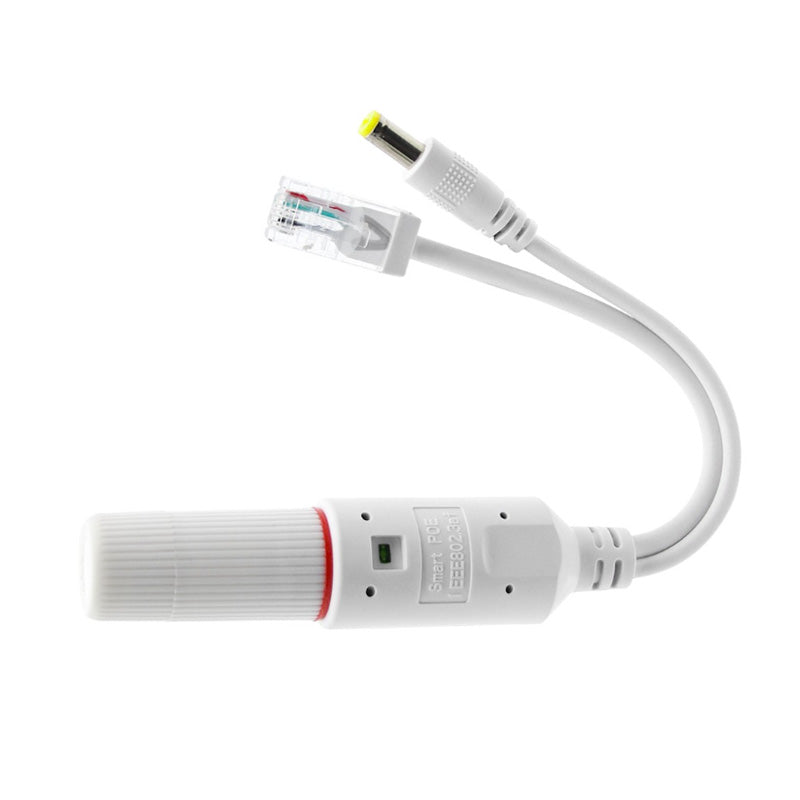

PoE Splitter

Name: PoE Splitter
Brand: My Store
Price: 30.45 CAD
Availability: InStock

Model: IP-POE-GXSP10

$30.45

Available in stock

🖨️ Print as PDF

Bandwidth: 10/100M, IEEE802.3af standard PoE Splitter, single Channel isolated

Bandwidth: 10/100M
Input Voltage: 37-57V
Input port: Supports (No.4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.
Output Voltage: 12V
Output current: 1.08A (Max)
Standard: Supports IEEE802.3af
Isolation protection: Using the transformer for isolation design, more stable, more secure
Protection function: Overheating protection, Short circuit protection, overvoltage and overload protection

Standard	Support IEEE802.3af
Power supply mode	Support Mid-span and End-span
PoE Input Voltage	37-57V DC Voltage
Output	12V DC
Current Output	1.08A(max)
Output Power	12.96W

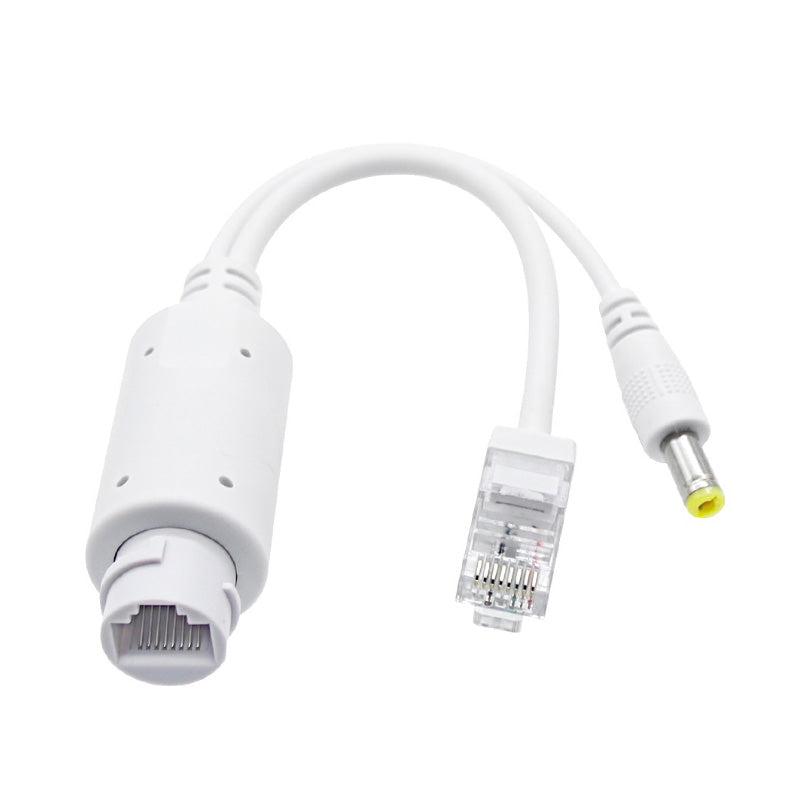

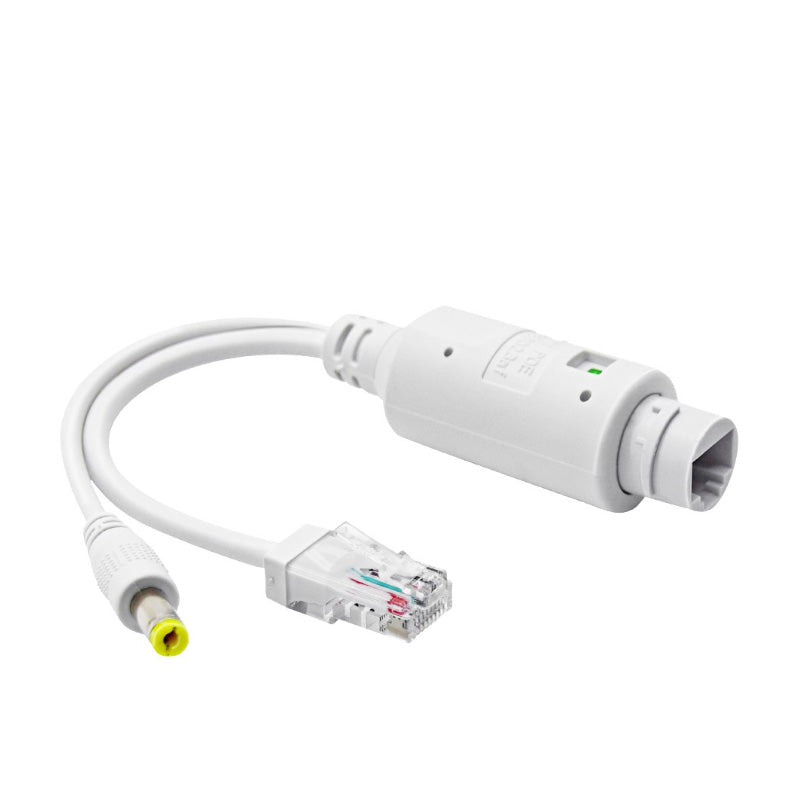

Electrical interface parameters	One input RJ45 port, One Output RJ45 Plug, One Power supply output DC Plug
Cable Type	Cat5 UTP and above
Protocol Standards	IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3af Power over Ethernet
Bandwidth	10/100M
LED indicator lights	POE input power supply indicator light, DC output power supply indicator light
Dimension	803024.5mm(LWH)
Weight(KG)	0.05kg
Environment temperature	Work temperature:-5~45; Work Humidity90%,No condensation Storage temperature:-20~70;Storage humidity:95%,No condensation;
