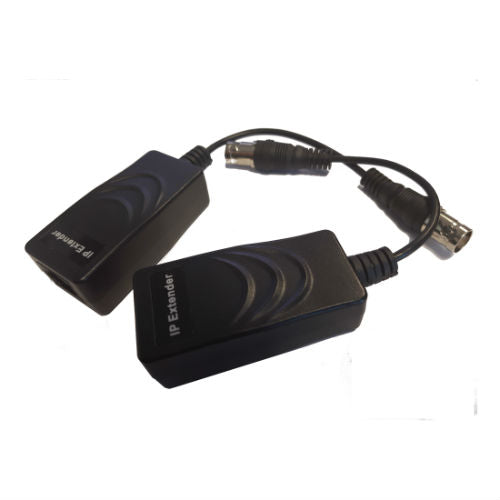

Ip Extender max 200m, surge protection. 1 channel passive ethernet over coax
Couldn't load pickup availability
- Transmit IP camera signal over existing coaxial cable
- Transmission distance max up to 200m
- Passive device, no power required
- Transmission Rate/Bandwidth: 10Mbps
- Full duplexer Transmissions
- Built-in Surge Protection
- High quality and performance
- Fast and easy to install
| Product Name | Single Channel Passive IP Transmitter / Receiver |
| Applied devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment |
| Video Format | PAL, NTSC, SECAM |
| Standard | IEEE802.3 10Base-T |
| Bandwidth | 10Mbps |
| Impedance | 50° to dual 100° or 75° to dual 100° or 93° to dual 100° |
| Max Distance | 200m/650ft |
| Crosstalk | > 30 dB |
| Connector | Female / Male BNC, RJ45 jack |
| Cable | Coax Cable (RG59) |
| Power | No external power required |
| Housing | ABS engineering plastic |
| Body Color | Black |
| Dimensions(L*W*H) | 60.4*29*20.4mm (BNC connector & cable excluded) |
| Net Weight | 60g |
| Operating Temperature | -20°~ 70°°C |
| Relative Humidity | 0~95% (non-condensing) |
| Storage Temperature | -40°~ 150°°C |
