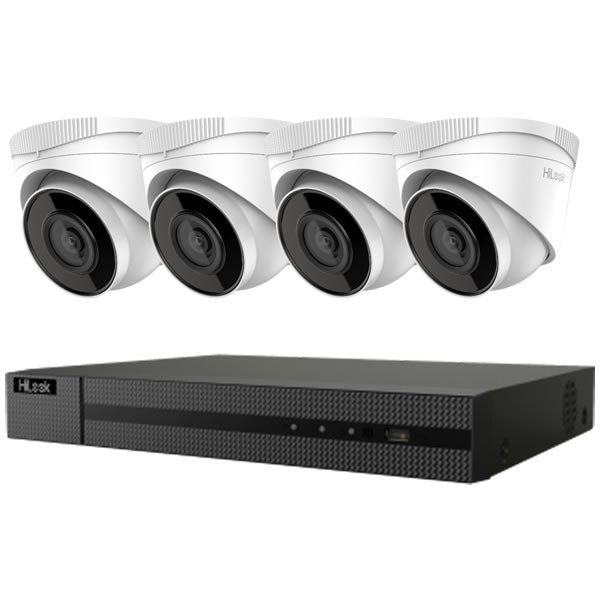

Kit Model

IK-4144TH-MH/P

Camera Model

IPC-T240H (2.8mm)

NVR Model

NVR-104MH-C/4P

Camera

Image Sensor

1/3" progressive scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100, 000 s

Day &Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8mm

Focal Length  FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°

Lens Mount

M12

Iris Type

Fixed

Aperture

F2.0

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (2560 × 1440)

25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1440)

30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Region of Interest (ROI)

1 fixed region for main stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,

UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

120 dB

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø112 mm × 81.5 mm (Ø4.41" × 3.21")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 320 g (0.7 lb.)

With Package Weight

Approx. 556 g (1.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup      and       Operating

Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark,

IP address filter

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B); IC VoC (ICES-003: Issue 6, 2016);

Protection

IP67 (IEC 60529-2013)

NVR

Video and Audio

IP Video Input

4-ch

Up to 8 MP resolution

Incoming/Outgoing

Bandwidth

40 Mbps/80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920

x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264

Video Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

4-ch

Capability

2-ch@8 MP (15 fps)/5-ch@1080p (30 fps)

Network

Remote Connection

16

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE

Interface

4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

</= 50 W

Standard

IEEE 802.3 af/at

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 8 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

General

Power Supply

48 VDC, 1.35 A

Consumption (without HDD

and PoE off)

</= 10 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm (10.2" × 8.9" × 1.9")

Weight (without hard disk)

</= 1 kg (2.2 lb)

Kit

Accessories

Network cable:

4 × 18 m (59.1 ft) video and power cable 1 × 1 m (3.3 ft) video and power cable

Hard Drive

Pre-installed 1 TB HDD

Certification

FCC, CE

Weight (with package)

</= 6.5 kg (14.3 lb)
