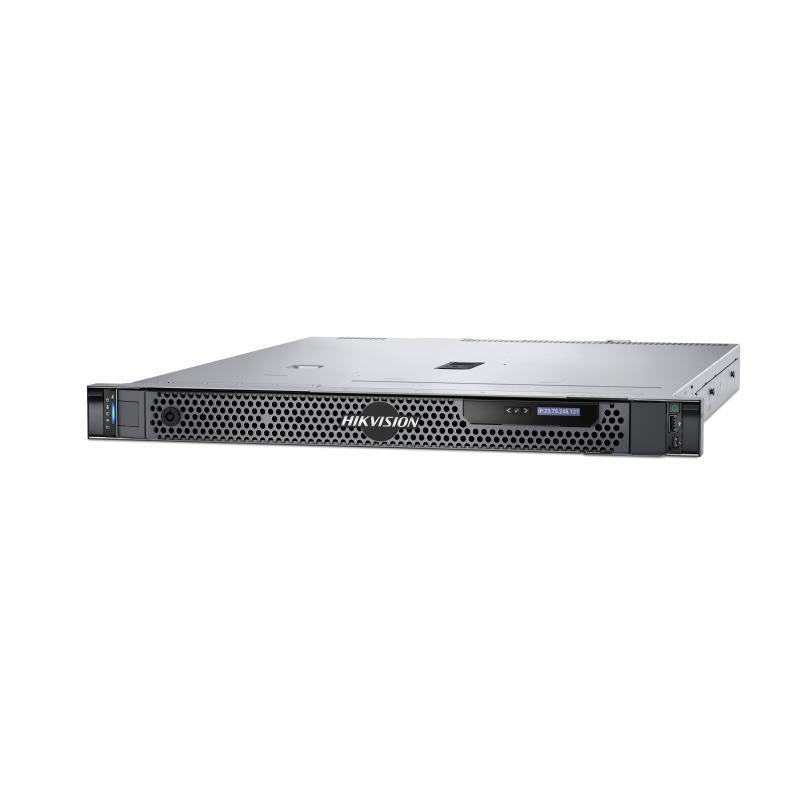

Hikvision HikCentral-P-VER/HW1D/64(E2434)(O-STD) Rackmount VMS Server
Hikvision HikCentral-P-VER/HW1D/64(E2434)(O-STD) Rackmount VMS Server
Model: HikCentral-P-VER/HW1D/64(E2434)(O-STD)
Available in stock
Send a copy to email:
Open here
Couldn't load pickup availability
- HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
- 1) Plug and play: No additional activation is required, and it is ready to use right out of the box
- 2) Easy to use: Pre-installed operating system, easy to operate and deploy
- All-in-one software and hardware, no activation required, easy delivery and reliable service
- 1) Guaranteed compatibility: Tested by professional testing team to ensure stable operation
- 2) Reliable after-sales service: 24/7 platinum after-sales service
|
Model |
HikCentral-P-VER/HW1D/64 |
|
|
Devices and Resources |
Video Management |
64ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function) |
|
Access Controls |
Not included; can be expanded into 1024 (Including Doors and Outdoor Station) |
|
|
Indoor Station |
Not included; can be expanded into 5000 |
|
|
ANPR Cameras |
Not included; can be expanded into 1024ch |
|
|
Lanes of Entrance & Exit |
Not included, can be expanded into 40 |
|
|
Cameras with Face Capture Function |
Not included; can be expanded into 3000ch |
|
|
Alarm Panel |
Not included; can be expanded into 1024 |
|
|
Smart Walls |
Not included; can be expanded into：Smart Walls：32；Decoding devices：32 |
|
|
Attendance |
Not included, can be expanded by extra license |
|
|
Hardware Specifications |
CPU |
E-2434 (6325P) |
|
Memory |
Standard Config：1 × 16GB UDIMM，4400MT/s Scalability：4 × 128GB UDIMM |
|
|
Hard Disks |
Standard Config：2× 2TB 7.2K SATA Hot-plug HDD (RAID_1) Slots: 4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default) |
|
|
Storage Controller |
S160 with OS software Raid (support RAID 0/1) |
|
|
Supported Operating Systems |
WinSvr2019 multilingual version pre-installed |
|
|
PCIe Slots |
Up to 2 PCIe Gen4 slots on the Gen4 Riser： Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile |
|
|
Management |
Remote Manage |
iDrac9 Enterprise |
|
OpenManage ™ Software |
Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager) |
|
|
Integrations and Connections |
Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible; Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus |
|
|
Security |
Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
|
|
Ports |
USB 3.0 |
0（Front）+1（Rear） |
|
USB 2.0 |
1（Front）+1（Rear） |
|
|
Ethernet Port |
2 x LAN 10/100/1000 |
|
|
VGA |
1 |
|
|
iDRAC Direct |
1 |
|
|
|
(Micro-AB USB) Port |
|
|
iDRAC Ethernet Port |
1 |
|
|
Manager Port |
1 |
|
|
General |
Net Weight |
13.23 kg (29.17 lb) |
|
Gross Weight |
25.0 kg (55.11 lb) |
|
|
Dimension (W × H × D) |
42.8 mm × 482.00 mm × 598.9 mm (1.68'' × 18.97'' × 23.57'') |
|
|
Package Dimensions (W × H × D) |
595.00 mm × 251.00 mm × 923.00 mm (23.43'' × 9.88'' × 36.34'') |
|
|
Operating Temperature |
10 °C to 35 °C (50 °F to 95 °F) |
|
|
Storage Temperature |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
|
Operating Humidity |
8% to 80% (no condensation) |
|
|
Storage Humidity |
5% to 95% (no condensation) |
|
|
Power Supply |
600 W，50/60 Hz，100-240 VAC (Auto adjustment)，7.1-3.6 A |
|
|
Form Factor |
1U Rack |
