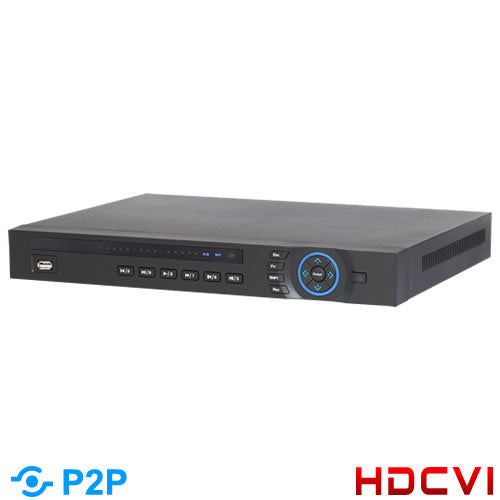

Galaxy 16CH HDCVI 1.3MP H.264 Standalone DVR
Galaxy 16CH HDCVI 1.3MP H.264 Standalone DVR
Model: HCVR5216A
Regular price
$578.55
Sale price
$578.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
16 cameras with 1080p realtime preview, H.264 dual-stream video compression, All channel 720P, HDMI / VGA/BNC, 16 channel synchronous playback, GRID interface & smart search, PTZ, Support 2 SATA HDD up to 8TB, 2 USB2.0, Multiple network monitoring: Web vi
Couldn't load pickup availability
- Up to 16 cameras with 1080p realtime preview
- H.264 dual-stream video compression
- HCVR5204/5208/5216A: All channel 720P
- HDMI / VGA/BNC simultaneous video output
- 16 channel synchronous playback, GRID interface & smart search
- 3D intelligent positioning with Dahua PTZ dome camera
- Support 2 SATA HDD up to 8TB, 2 USB2.0
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| Model | HCVR5216A | |
| System | Main Processor | Embedded processor |
| Operating System | Embedded LINUX | |
| Video | Input | 16 channel, BNC |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |
| Audio | Input | 4 channel, BNC |
| Output | 1 channel,BNC | |
| Two-way Talk | Reuse audio input/output channel 1 | |
| Display | Interface | 1 HDMI, 1 VGA,1 BNC |
| Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600 | |
| Display Split | 1/4/8/9/16 | |
| Privacy Masking | 4 rectangular zones (each camera) | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | Video/Audio Compression | H.264 / G.711 |
| Resolution | 720P(1280x720/1280x600)/960H(960x576/960x480)/D1/4CIF(704x576/704x480) / CIF(352x288/352x240) / QCIF(176x144/176x120) | |
| Record Rate Main Stream: | 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) | |
| Record Rate Extra Stream | CIF/QCIF(1~25/30fps) | |
| Bit Rate | 48~6144Kb/s | |
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |
| Video Detection&Alarm | Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
| Video Detection | Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank | |
| Alarm Inuput | 16 channel | |
| Alarm Output | 3 channel | |
| Playback & Backup | Sync Playback | 1/4/8/16 |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |
| Backup Mode | USB Device / Network | |
| Network | Ethernet | RJ-45 port (10/100M/1000M) |
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |
| Max. User Access | 128 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Storage | Internal HDD | 2 SATA port, up to 8TB |
| Auxiliary Interface | USB Interface | 2 ports(1 Rear), USB2.0 |
| RS232 | 1 port, For PC communication & Keyboard | |
| RS485 | 1 port, For PTZ control | |
| General | Power Supply | DC12V/5A |
| Power Consumption | 15W(without HDD) | |
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |
| Dimension(WxDxH) | 1U, 375mm x 285mm x 45mm | |
| Weight | 2.35KG(without HDD) | |
