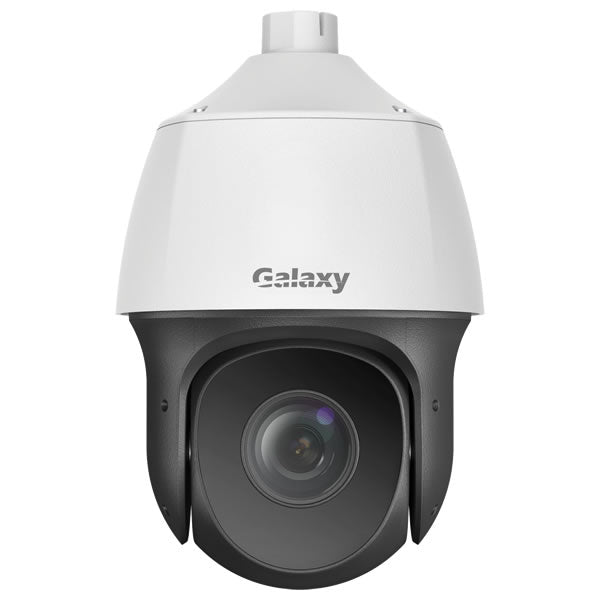

GXPTZ988FSL-25X-AT Galaxy Pro 2MP 25x Starlight Auto Tracking IP PTZ Camera
GXPTZ988FSL-25X-AT Galaxy Pro 2MP 25x Starlight Auto Tracking IP PTZ Camera
Model: GXPTZ988FSL-25X-AT
Regular price
$926.55
Sale price
$926.55
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
Galaxy Pro 2MP Starlight 25x IR PTZ Dome Camera / SID trigger Auto Tracking / 120dB WDR / 1/2.8" CMOS, ICR, 1920x1080@60fps, 0.002 Lux Starlight, Ultra265, Triple Streams, IR up to 495ft (150m), Alarm, Audio, BNC output, Micro SD Card Slot, IR Anti-Reflection Window, IP66, -40~70deg.C, Network, RS485, 25x Optical Zoom, 5~125mm Lens / Optional parts / Wall Mount: TR-WE45-A-IN / Ceiling Mount: TR-CE45-IN / Poe Injector: POE-PTZ-60W
Couldn't load pickup availability
- High quality image with 2MP,1/2.8’’ CMOS sensor
- 1920x1080@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom allows for closer viewing of subjects
- Starlight technology ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- DC12V or PoE+(IEEE 802.3at) power supply
- Audio 1 in and 1 out, Alarm 2 in and 1 out
- Micro SD, up to 256GB
- Smart IR, up to 150m (492 ft) IR distance
- IP66 ingress protection
| Camera | |
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Lens | |
| Lens type | 5~ 125mm, AF automatic focusing and motorized zoom lens |
| Optical Zoom | 25 |
| Iris | Autol; F1.5 ~ F3.0 |
| Angle of View (H) | 54.37° ~ 2.68° |
| Angle of View (V) | 32.23° ~ 1.51° |
| Angle of View (O) | 66.88° ~ 3.16° |
| DORI | |
| DORI Distance | Lens (5mm), Detect 85.3m(280.0ft), Observe 34.1m(112.0ft), Recognize 17.1m(56.0ft), Identify 8.5m(28.0ft) Lens (125mm), Detect 1706.9m (5600.1ft), Observe 682.8m(2240.0ft), Recognize 341.4m(1120.0ft), Identify 170.7(560.0ft) |
| Illuminator | |
| IR Range | Up to 150m (492 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP(1920*1080),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| Auto Tracking | Support |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711U,G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Storage | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Galaxy8000 |
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 2°/s ~ 75°/s |
| Preset speed: 180°/s | |
| Tilt Range | 15° ~ 90° (auto reverse) |
| Tilt Speed | 2°/s ~ 75°/s |
| Preset speed: 80°/s | |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Interface | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | |
| Certification | CE, FCC |
| General | |
| Power |
DC12V+/-10% , PoE+ (IEEE802.3 at) |
| Power consumption: Max 25W | |
| Power Interface | Dia. 5.5mm coaxial power plug |
| Dimensions (Dia. x H) | Dia.220 x 370mm (Dia.8.7 x 14.6) |
| Weight | 3.3kg(7.26lb) |
| Working Environment | -40°C~65°C(-40°F ~ 149°F) , Humidity: </=95% RH (non-condensing) |
| Storage Environment | -40°C~70°C(-40°F ~ 158°F) , Humidity: </=95% RH (non-condensing) |
| Surge protection | 6KV |
| Reset button | Support |
| Protection | Ingress Protection: IP66 Vandal Resistant: N/A |
