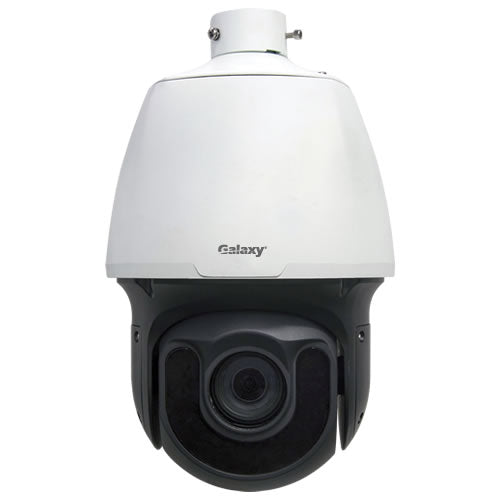

Galaxy Pro Series 2MP Starlight 22x IR PTZ Dome Camera - 6.5~143mm
Galaxy Pro Series 2MP Starlight 22x IR PTZ Dome Camera - 6.5~143mm
Model: GXPTZ799SLX22
Regular price
$2,043.05
Sale price
$2,043.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
1/1.8" CMOS, ICR, 1920x1080@30fps, 0.002 Lux Starlight, 120dB WDR, H.264, Triple Streams, IR up to 492ft (150m), Enhanced Harness, Alarm, Audio, BNC output, Micro SD Card Slot, IR Anti-Reflection Window, 5", IP66, -40~70°C, RJ45, 22x Optical Zoom Lens
Couldn't load pickup availability
- Starlight illumination
- Accurate and fast focusing
- Smart IR, up to 150 m (492 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- H.264 High Profile
- Triple streams
- Frame rate up to 60 fps with 1080P
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface
| Camera | |
| Sensor | 1/1.9", 2 megapixel, progressive scan, CMOS |
| Lens | 6.5 ~ 143 mm (22x optical zoom) |
| Angle of View (H) | 70deg. (wide) ~ 3.76deg. (tele) |
| Iris | Auto/Manual; F1.5 ~ F3.4 |
| Shutter | Auto/Manual; shutter time: 1/6 s ~ 1/8000 s |
| Minimum Illumination | Colour: 0.002 lux (F1.6, 50IRE) B/W: 0.0002 lux (F1.6, 50IRE) |
| S/N | >52dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | up to 492ft (150m) |
| Video | |
| Max. Resolution | 1920 x 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920x1080):Max.60 fps; 720P (1280x720):Max.60 fps; D1 (720x576):Max.25 fps |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 64 GB |
| Network | |
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,NTP,FTP,HTTP,SNMP,SIP |
| Compatible Integration | ONVIF, IMOS,API |
| Pan & Tilt | |
| Pan Range | 360deg. (endless) |
| Pan Speed | 0.1deg./s ~ 240deg./s |
| Preset speed: 300deg./s | |
| Tilt Range | 15deg. ~ +90deg. (auto reverse) |
| Tilt Speed | 0.1deg. ~ 160deg./s |
| Preset speed: 240deg./s | |
| Number of Preset | 255 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
| Pattern | Up to 16 patterns, with the total recording time not less 15 minutes per pattern |
| Interface | |
| Audio I/O | audio cable |
| Input: impedance 35 kohm; amplitude 2 V [p-p] | |
| Output: impedance 600 ohm; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 RS485 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 ohm; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC (Default), 24 V DC |
| Power consumption: 12 ~46W (IR:27W, heater: Max. 12W) | |
| Dimensions (Dia. x H) | Dia.227 x 359.4 mm (Dia.8.9" x 14.2") |
| Weight | 5.5 kg (12.1 lb) |
| Working Environment | 40°C ~ +70°C (-40°F ~ 158°F), Humidity |
| Ingress Protection | IP66 |
