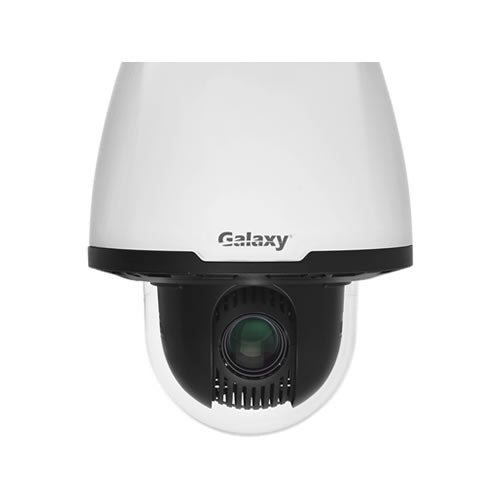

Galaxy 2MP 33X Motorized VF IP Dome Camera
Galaxy 2MP 33X Motorized VF IP Dome Camera
Model: GXPTZ699SLX33-C-P
Regular price
$767.05
Sale price
$767.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
2MP, 1920x1080, @60fps, Ultra265, 120dB WDR, Audio, Alarm, MicroSD slot, IK10, 4.5~148.5mm, 33X, Motorized VF, AC24V
Couldn't load pickup availability
Optics
Starlight illumination
33x optical zoom
Accurate and fast focusing
Compression
Ultra 265, H.265, H.264, MJPEG
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Fast installation structure design
6KV surge protection designed for network interface
IK10
Camera Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS Lens 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens Digital Zoom 16 Optical Zoom 33 DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.5 69.8(229ft) 27.9(91.5ft) 14(45.9ft) 7(23ft) 148.5 2304.3(7560ft) 921.7(3024ft) 460.9(1512.1ft) 230.4(756ft) Angle of View (H) 62.67° ~ 2.82° Angle of View (V) 38.4° ~ 1.3° Angle of View (O) 77.1° ~ 3.3° Shutter Auto/Manual; shutter time: 1 ~ 1/100000s Minimum Illumination Colour: 0.001Lux (F1.5, AGC ON)
B/W: 0.0001Lux(F1.5, AGC ON)Iris Auto/Manual; F1.5 ~ F4.0 Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >52dB Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile, High Profile Frame Rate Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fpsHLC Supported BLC Supported EIS Supported OSD Up to 8 OSDs Privacy Mask Up to 24 areas ROI Up to 8 areas Motion Detection Up to 4 areas Smart General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Pan & Tilt Pan Range 360° (endless) Pan Speed 0.1°/s ~ 400°/s Preset speed:400°/s Tilt Range 1° ~ 90° (auto reverse) Tilt Speed 0.1° ~ 240°/s Preset speed: 240°/s Number of Presets 1024 Patrol Preset patrol, route patrol, recorded patrol Home Position Supported Interface Audio I/O Audio cable 1 Input: impedance 35k?; amplitude 2V [p-p] 1 Output: impedance 600?; amplitude 2V [p-p] Alarm I/O 2/1 Serial Port 1 RS485 Network 1 RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC, impedance 75?; amplitude 1V [p-p] General Power AC 24V±25%, DC 24V±25%, PoE (IEEE 802.3at) Power consumption?8.5~15.5W Dimensions (Ø x H) Ø195 x 263mm (Ø7.7 x 10.4) Weight 2.9kg (6.4lb) Working Environment -20°C ~ 50°C (-4°F ~ 122°F), Humidity: ?95% RH (non-condensing) Vandal Resistant IK10
