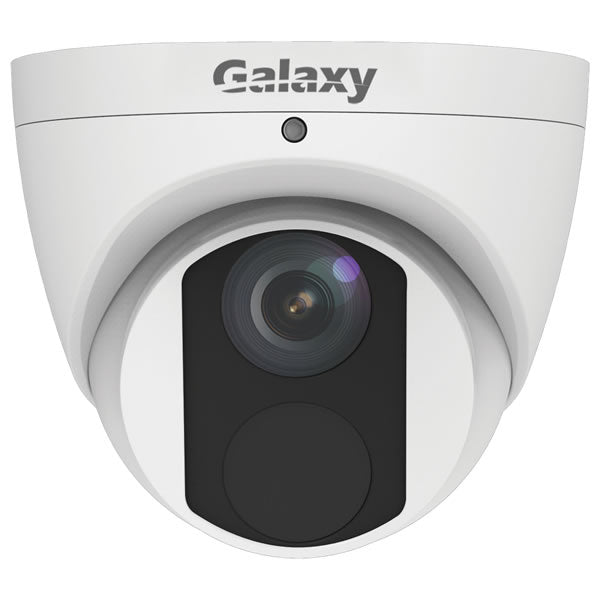

GXE724F-IR28 | Galaxy Elite 4MP IR Fixed Outdoor IP Turret Camera with Human Detection
GXE724F-IR28 | Galaxy Elite 4MP IR Fixed Outdoor IP Turret Camera with Human Detection
Model: GXE724F-IR28
Regular price
$166.75
Sale price
$166.75
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
4MP, 2560x1440, @25fps, Ultra265, DWDR, Intrusion Prevention, Tripwire, IR, up to 30m (98ft), MicroSD slot, IP67, 2.8mm Lens, Fixed, PoE, 3-Axis, Onvif, Optional Junction Box: TR-JB03-G-IN, Optional Wall Mount: TR-WM03-D
Couldn't load pickup availability
- High Quality Image with 1/3" 4MP CMOS Sensor
- 4MP 2560x1440@25FPS
- Ultra265, H.265, H.264, MJPEG
- Digital WDR
- Smart IR, Up to 30m (98 feet) IR Distance
- Supports 256GB MicroSD Card
- IP67 Protection
- Supports POE Power
- 3 Axis
- ONVIF
- Region of Interest (ROI)
- Motion Detection
- Wide Temperature Range: -30°C to 60°C (-22°F to 140°F)
| Camera | |
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 |
| DORI Distance | Lens (2.8mm), Detect (63m), Observe (25.2m), Recognize (12.6m), Identify (6.3m) |
| Angle of view | H: 97.0°, V: 52.2°, O: 107.5° |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100,000s |
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps Sub Stream:4CIF (704x576), Max 30fps; 640x360,Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6144 kbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Smart | |
| Behavior Detection | Cross line, intrusion(based on human body detection), Motion detection, tampering alarm |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | Galaxy8000 |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ | |
| Interface | |
| Network | 1 RJ45 10/100M Base-TX Ethernet |
| General | |
| Power | DC 12V+/-25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.0W | |
| Dimensions (Dia. x H) | Dia. 118 x 97mm (Dia.4.6" x 3.8") |
| Net Weight | 0.30kg (0.66lb) |
| Material | Metal + Plastic |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: </=95% RH (non-condensing) |
| Strorage Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: </=95% RH (non-condensing) |
| surge protection | 4KV |
| Ingress Protection | IP67 |
| Reset Button | N/A |
