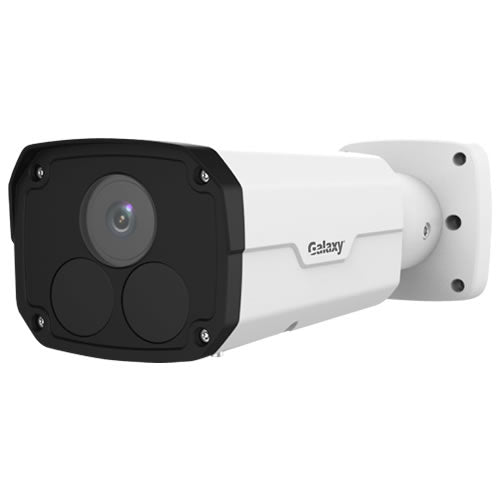

Galaxy Pro Series 4MP IR Bullet Camera - 4mm
Galaxy Pro Series 4MP IR Bullet Camera - 4mm
Model: GX854MF-IR5
Regular price
$245.05
Sale price
$245.05
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
By entering your email, you agree that it will be seen by store and may contact you.
Open here
1/3" CMOS, ICR, 2688x1520@20fps, 120dB WDR, H.265, Triple streams, Smart Functions, IR up to 164ft (50m), IR Anti-Reflection Window, IP67, 4.0mm Fixed Lens, DC12V / PoE
Couldn't load pickup availability
- Day/night functionality
- Smart IR , up to 50 m (164 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor format
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of +/-25%
- IK10 vandal resistant
- IP67
| Camera | ||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |
| Lens | 4.0mm@F2.2 | |
| Angle of View(H) | 77.7deg. | |
| Shutter | Auto/Manual, 1/6~1/100000 s | |
| Min. Illumination | Colour: 0.02 Lux (F2.2, AGC ON) 0 Lux with IR on | |
| IR Range | Up to 50m (164 ft) IR range | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| S/N | >55dB | |
| WDR | 120dB | |
| Noise Reduction | 2D/3D | |
| Video | ||
| Max. Resolution | 2592x1520 | |
| Video Compression | H.265, H.264, MJPEG | |
| Frame Rate | 4MP (2592x1520): Max. 20 fps; 4MP (2560x1440): Max. 25 fps 3MP (2048x1520): Max. 30 fps; 1080P (1920x1080): Max. 30 fps | |
| Video Streaming | Triple | |
| 9:16 Corridor Mode | Supported | |
| ROI | Supported | |
| HLC | Supported | |
| Evaluative Metering | Supported | |
| OSD | Up to 8 OSDs | |
| Motion Detection | Up to 4 areas | |
| Privacy Mask | Up to 8 areas | |
| Smart | ||
| Behavior Detection | Intrusion, crossing line, motion detection | |
| Intelligent Identification | Face detection, Defocus, Scene Change | |
| Statistical Analysis | People counting | |
| Storage | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network | ||
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x | |
| Compatible Integration | ONVIF, API | |
| Interface | ||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |
| General | ||
| Power | 12 V DC, or PoE (IEEE802.3 af) | |
| Power consumption: Max 9 W | ||
| Dimensions (L x W x H) | 253.4 x86 x71.7 mm (9.98" x 3.4" x 2.8") | |
| Weight | 0.58kg (1.28lb) | |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity | |
| Ingress Protection | IP67 | |
