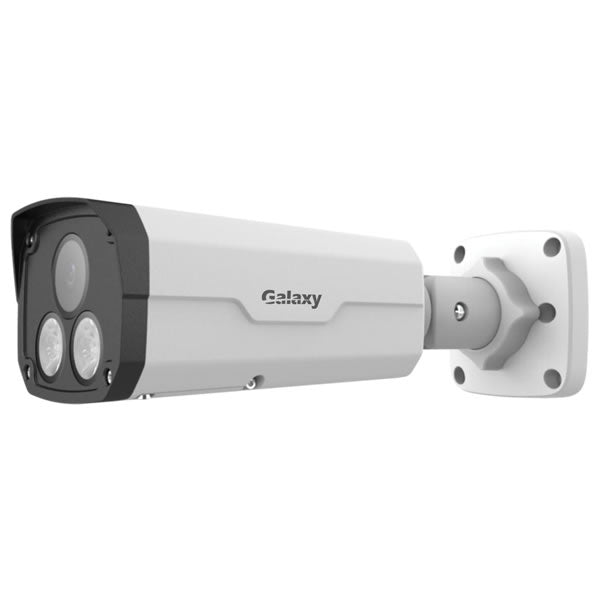

GX845A-AI-LED-40CF Galaxy Pro AI 5MP HD Color247 IR Fixed IP Bullet Camera
GX845A-AI-LED-40CF Galaxy Pro AI 5MP HD Color247 IR Fixed IP Bullet Camera
Model: GX845A-AI-LED-40CF
Regular price
$356.70
Sale price
$356.70
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
5MP, 2688x1620@30fps, Ultra265, 120dB WDR, IR up to 30m (98ft), Built-in Mic/Speaker, Audio, Alarm, MicroSD slot, Human & Vehicle, 4mm Fixed Lens, PoE, IP67, IK10, Optional: GX-BK- JB07
Couldn't load pickup availability
- High quality image with 5MP, 1/2.7"CMOS sensor
- 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@ 30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Color247 technology ensures 24-hour full-color images
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Supports 256 G micro SD card
- IK10 vandal resistant
- IP67 protection
- Support PoE power supply
| Camera | ||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||
| Lens | 4.0mm@F1.0 | |||
| DORI Distance | Lens (4.0mm), Detect(90.0m), Observe(36.0m), Recognize(18.0m), Identify(9.0m) | |||
| Angle of View (H) | 80.2° | |||
| Angle of View (V) | 43.0° | |||
| Angle of View (O) | 94.7° | |||
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | |||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||
| Minimum Illumination | Colour: 0.001Lux (F1.0, AGC ON) | |||
| S/N | >56dB | |||
| Defog | Digital Defog | |||
| WDR | 120dB | |||
| LEDs Number | 2 | |||
| LED Distance | Up to 30m (98ft) | |||
| Video | ||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | |||
| H.264 code profile | Baseline profile, Main profile, High profile | |||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
|||
| Video Bit Rate | 128 Kbps~16 Mbps | |||
| 9:16 Corridor Mode | Supported | |||
| OSD | Up to 8 OSDs | |||
| Privacy Mask | Up to 4 areas | |||
| ROI | Up to 8 areas | |||
| Image | ||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||
| Digital noise reduction | 2D/3D DNR | |||
| Smart Illumination | Support | |||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||
| Dewarping | N\A | |||
| HLC | Support | |||
| BLC | Support | |||
| Audio | ||||
| Audio Compression | G.711 | |||
| Two-way audio | Supported | |||
| Suppression | Supported | |||
| Sampling Rate | 8KHZ | |||
| Storage | ||||
| Edge Storage | Micro SD, up to 256GB | |||
| Network Storage | ANR, NAS(NFS) | |||
| Network | ||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||
| Client | Galaxy8000 | |||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Interface | ||||
| Audio I/O | Input: impedance 35kOhm; amplitude 2V [p-p] | |||
| Output: impedance 600Ohm; amplitude 2V [p-p] | ||||
| Alarm I/O | 1/1 | |||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||
| Certifications | ||||
| Certifications | CE, FCC | |||
| General | ||||
| Power | DC 12V+/-25%, PoE (IEEE 802.3af) | |||
| Power consumption: Max 9.0W | ||||
| Dimensions (L x W x H) | 246 x 86 x 85mm (9.7" x 3.4" x 3.3") | |||
| Net Weight | 0.92kg (2.02lb) | |||
| Material | Metal | |||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) | |||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: </=95% RH (non-condensing) | |||
| surge protection | 4KV | |||
| Ingress Protection | IP67 | |||
| Vandal Resistant | IK10 | |||
| Reset Button | N\A | |||
