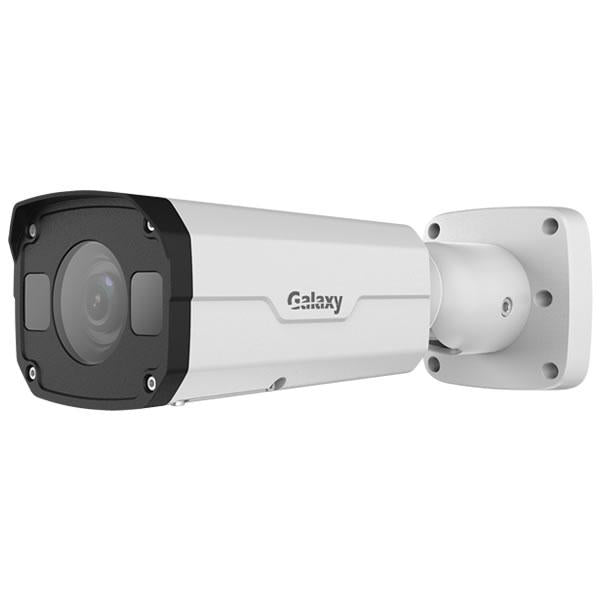

Galaxy Pro 8MP Motorized Bullet Camera AI (Human & Vehicle)
Galaxy Pro 8MP Motorized Bullet Camera AI (Human & Vehicle)
Model: GX844FN-4K
Regular price
$620.60
Sale price
$620.60
Regular price
Available in stock
🖨️ Print as PDF
×
Send a copy to email:
Open here
8MP, 3840x2160@15fps, 0.003 Lux, 120dB WDR, Ultra265, Triple Streams, Day&Night(ICR), IR up to 164ft (50m), MicroSD Slot, Smart Function, Audio, Alarm, IP67, 2.8~12mm Motorized VF Lens, DC12V, PoE, Optional: TR-JB07-D-IN
Couldn't load pickup availability
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 2D/3D DNR(Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP67
| Camera | |
| Sensor | 1/2", progressive scan,8.0megapixel, CMOS |
| Lens | 2.8~12mm, AF automatic focusing and motorized zoom lens |
| DORI Distance | Lens: 2.8mm, Detect(m): 63,
Observe(m): 25.2,
Recognize(m): 12.6,
Identify(m): 6.3 |
| Angle of View (H) | 114.8° ~ 47.3° |
| Angle of View (V) | 75.3°~20.4° |
| Angle of View (O) | 141.2°~55.8° |
| Adjustmentangle | Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52 dB |
| IR Range | Up to 50m (164 ft) IR range |
| Defog | Digital Defog |
| WDR | 120dB |
| Video | |
| Video Compression | Ultra 265,H.265, H.264,MJPEG |
| Frame Rate | Main Stream: 8MP (3840*2160): Max. 15 fps;5MP(2592*1944): Max. 30fps; 5MP(2944*1656): Max. 30fps; 4MP(2560*1440): Max. 30fps;2MP (1920*1080): Max. 30fps Sub Stream: 2MP (1920*1080): Max. 30fps Third Stream: D1 (720*576): Max. 30 fps |
| HLC | Supported |
| BLC | Supported |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition: | Face detection?Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
| Audio I/O | Input: impedance 35 k?; amplitude 2 V [p-p] Output: impedance 600 ?; amplitude 2 V [p-p] |
| Alarm I/O | 1 / 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 ?; amplitude 1 V [p-p] |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 10W | |
| Dimensions (L × W × H) | 146.3 ×86 ×71.7 mm (57.6 × 3.4 × 2.8) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~ 90% RH(non-condensing) |
| Ingress Protection | IP67 |
